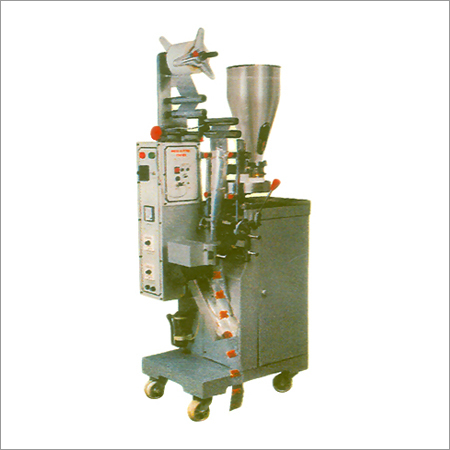

Vertical Form Fill & Seal Machine Model Ue 08

Vertical Form Fill & Seal Machine Model UE 08

The UE vertical packaging machine, is easy to operate, minimum maintenance which automatically forms a bag and fills it with a product and then seals and separates the finished package. It is suitable for all kinds of free flowing food-or non- food products. It uses a single reel of material and seals by electronic impulse bars (polyethylene etc.) or by constant heat bars (cellophane, laminates,etc) which are controlled by an electronic programmable controller. It is suitable for vast range of industries and can produce almost every shape of  beg. Listed below are just a few possible applications for this versatile machine.

APPLICATION:

Tea, Granules, Powders, Pulses, Namkeen, Dry Fruits etc.

SPECIFICATION:

• Sealing Type- Center Seal
• Size- W-50-220mm.
• L-50-340 mm

PACKING MEDIA:

Heat Sealable Laminate and Vergine Films.

FILLING SYSTEM:

Cup Filling, Auger Filling, Electronic Weighing System.

OPTIONAL ATTACHMENT:

Coding System, Batch Cutting  System, Nitrogen Flushing System, Conveyer System.

Compressed Air Required- 4 to 6 bar.

MACHINE WEIGHT:

400 Kgs. (Approx)

POWER:

1700/230 V.A.C Single Phase
