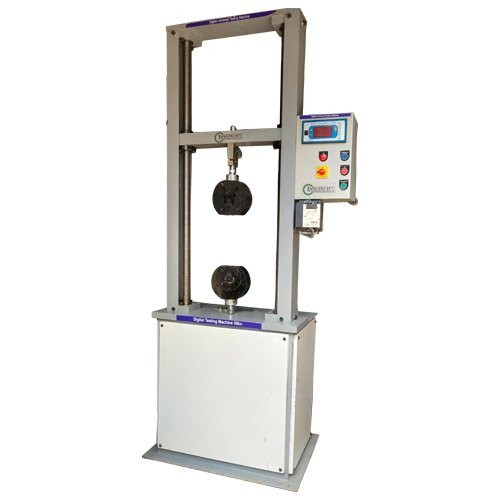

Tensile With C.o.f Tester Machine

Computerized Tensile with cof tester to determine properties of Tensile & Elongation as per ASTM D 638 & ISO 527, Compression as per ASTM D 695 & Flexural (three point bending), as per ASTM D 790 with auto stop, auto reverse facility & direct display of result through 32 bit micro controller having 4 lines and 20 character display. Suitable for checking all types of polymers, compounds, composite materials, fibre reinforced plastics (FRP) and polymeric materials.

Specification:
Advanced load sensor sensing through advanced electronic LCD card.
a c Speed Control through Variable Frequency drive. (150/ 300 mm per min.)
a c Highly sensitive load sensor with linearity feature and repeatability a c Cross head travel length: 600 mm without grips Single column rugged structure a c Safety limit switches for over travel safety.
a c Hardened lead screws for frictionless movement Load cell calibrated by NABL approved proving ring/dynamometers self-calibration feature for dual load cell different capacity. High accurate micro-controller based system controls.
a c User Friendly operation with Intuitive key pad and robust architecture Inbuilt Tensile & COF fixture is optional.
a c Easy Data Management and result peak hold facility.
a c Bright LCD display Print of test reports with thermal printer feature is available
a c Secured working with key protection feature
a c Immediate analysis of results after test with complete accuracy & precision.
* Equipment with other capacities could also be supplied as per the requirement.

All results such as Peak load, Elongation at Peak load, Break load, Elongation at break load, % elongation at Peak, % elongation at Break, Tensile strength at Peak, Tensile strength at Break, Flexural stress, Compression Strength, Secant Modulus, Tangent Modulus & Flexural Modulus have directly displayed Microcontroller as well as through PC software
