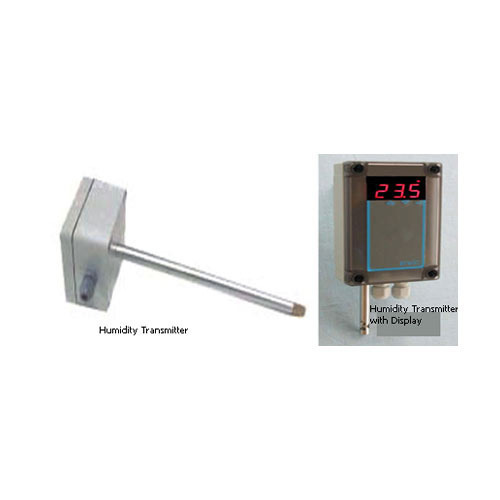

Rht - 1000 Humidity And Temperature Transmitter - Ip65 Watertight Abs Enclosure 82x80x55 Mm Compact Design Loop Powered With Dual Sensor Accuracy

RHT - 1000 humidity and temperature transmitter convert the humidity and temperature measured by two sensors into a 4A.20 mA signal.The accurate design and choice of components make the instruments precise and reliable for a long working life. The instruments have two sensors a capacitive sensor for measuring relative humidity and a Platinum resistive sensor for measuring temperature.
FEATURES:
1.Fast stable and accurate.
2. Watertight enclosure.
3. Compact size easy mounting.
4.Loop powered Transmitter.
5. On-site two point calibration. ( Zero and Span).

SPECIFICATIONS
Measuring Range : Humidity : 0 ~ 100 % RH.
Temp : 0 ~ 80A C.
Optional Temp Range : -20 ~ 80 A C / 0 ~ 50A C
Accuracy @ 25A C : A 2 % RH A 0.3A C
Temp. Compensation : A 0.008 % RH /A C( Effect @ 0 % RH)
Response : < 15 Seconds
Sensors : Humidity : Thin-film Capacitor
Temperature : RTD Pt100
Output : Humidity : 4 ~ 20 mA two wire
Temperature : 4 ~ 20 mA two wire( 0 ~ 100A C)
Supply Voltage : 12 to 30 VDC
Housing : ABS plastic watertight enclosure ( IP 65)
Weight : 150 g
Dimensions : 82 x 80 x 55 mm

For More details Contact:
