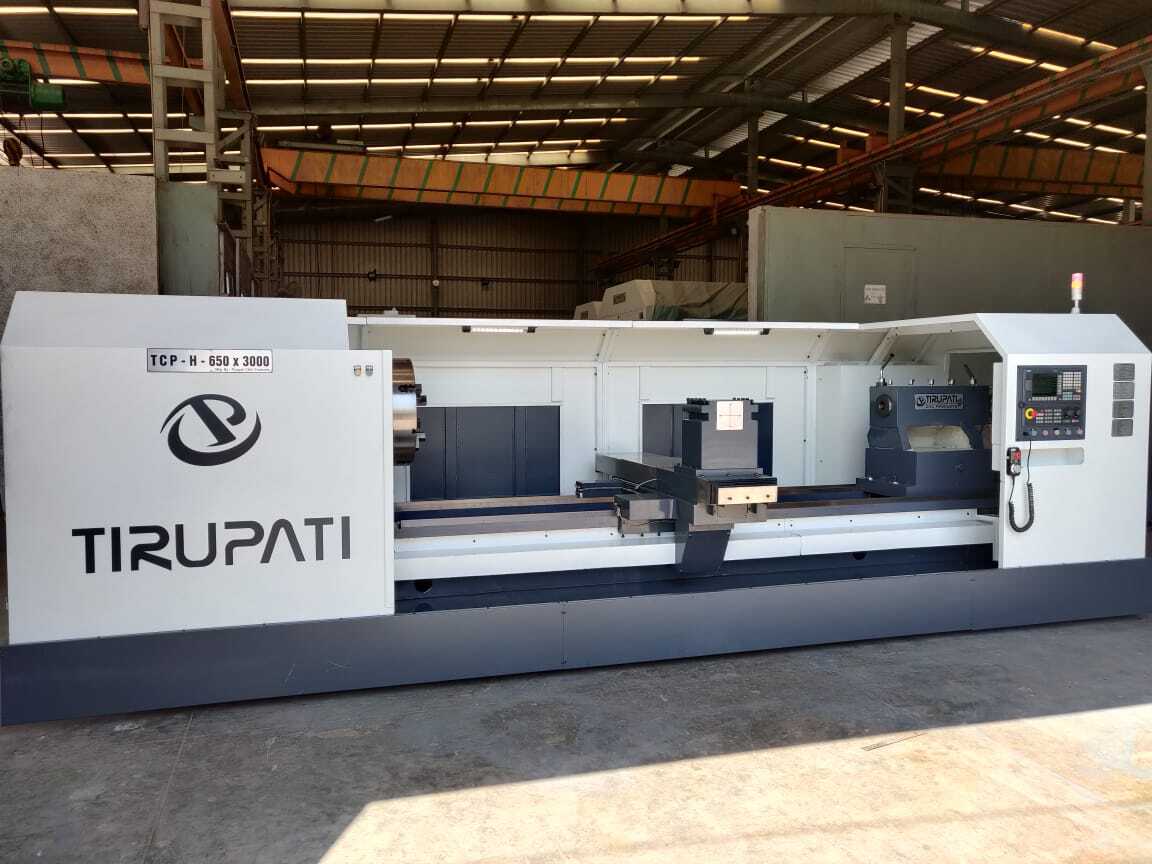

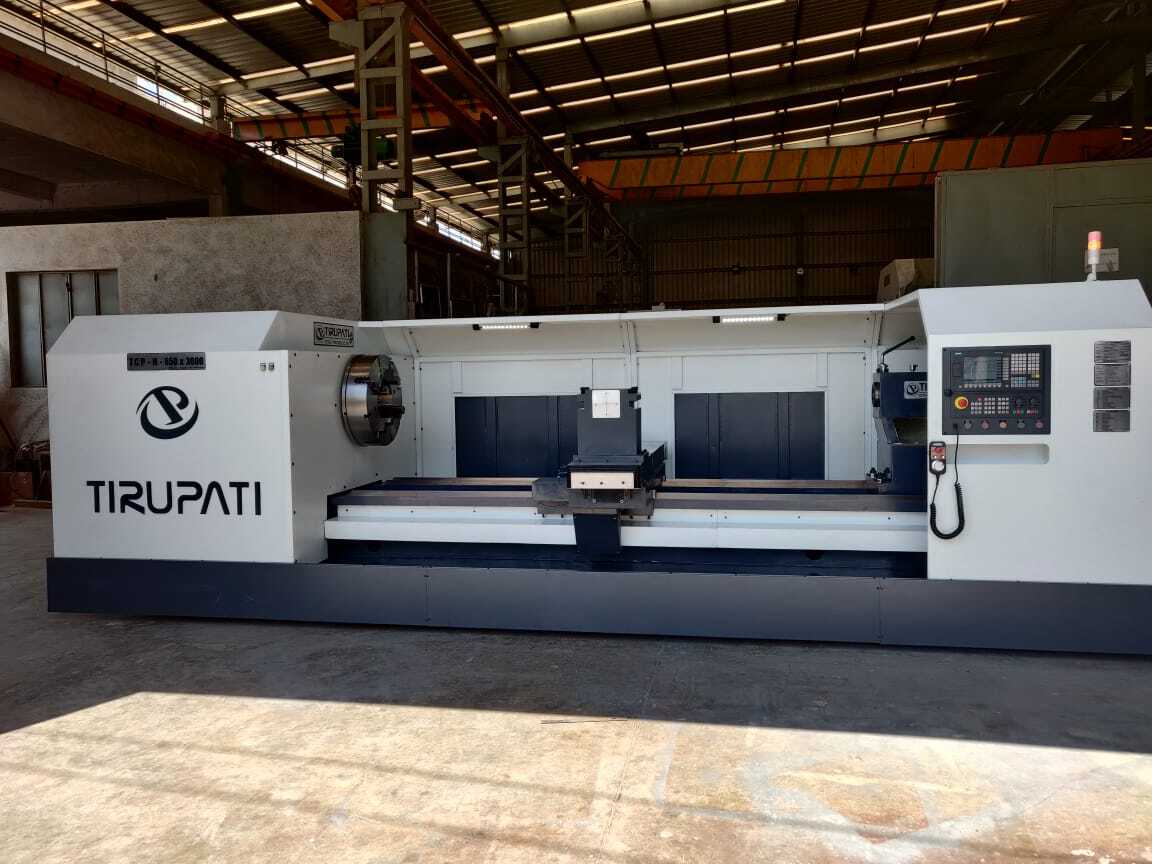

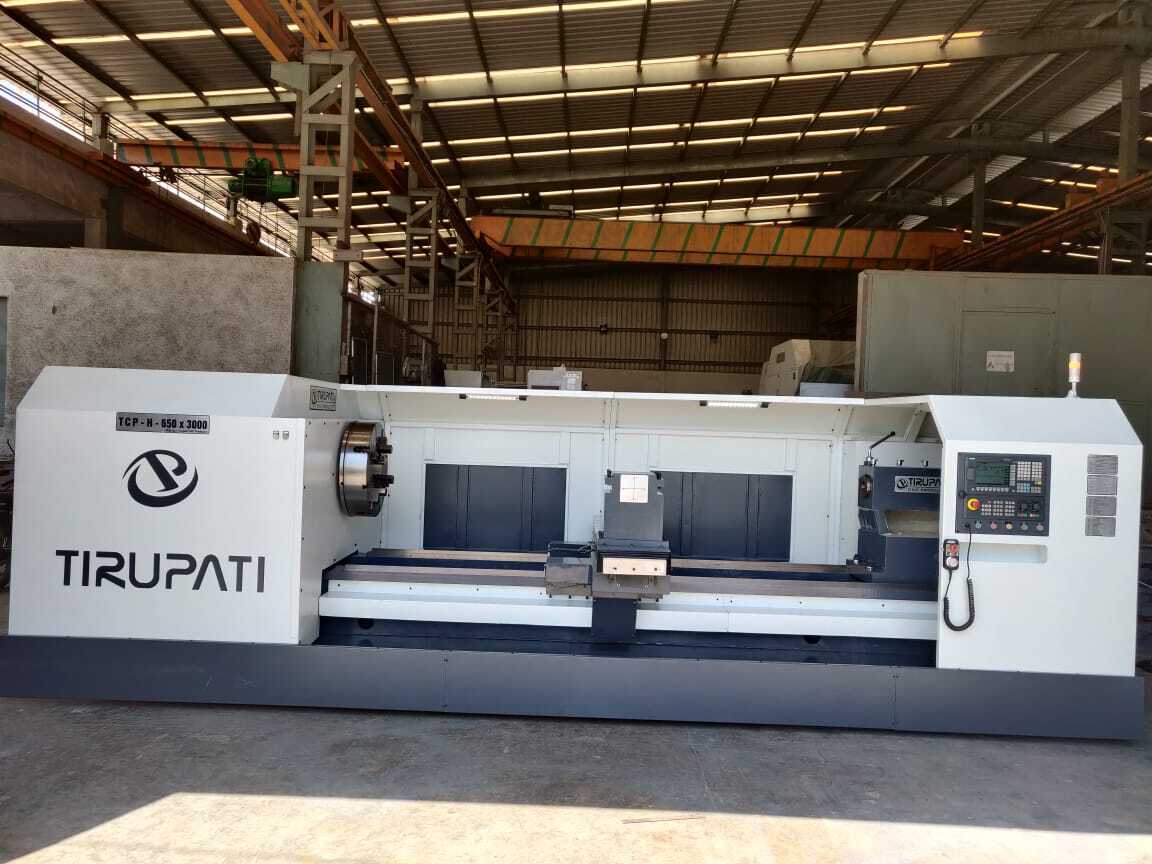

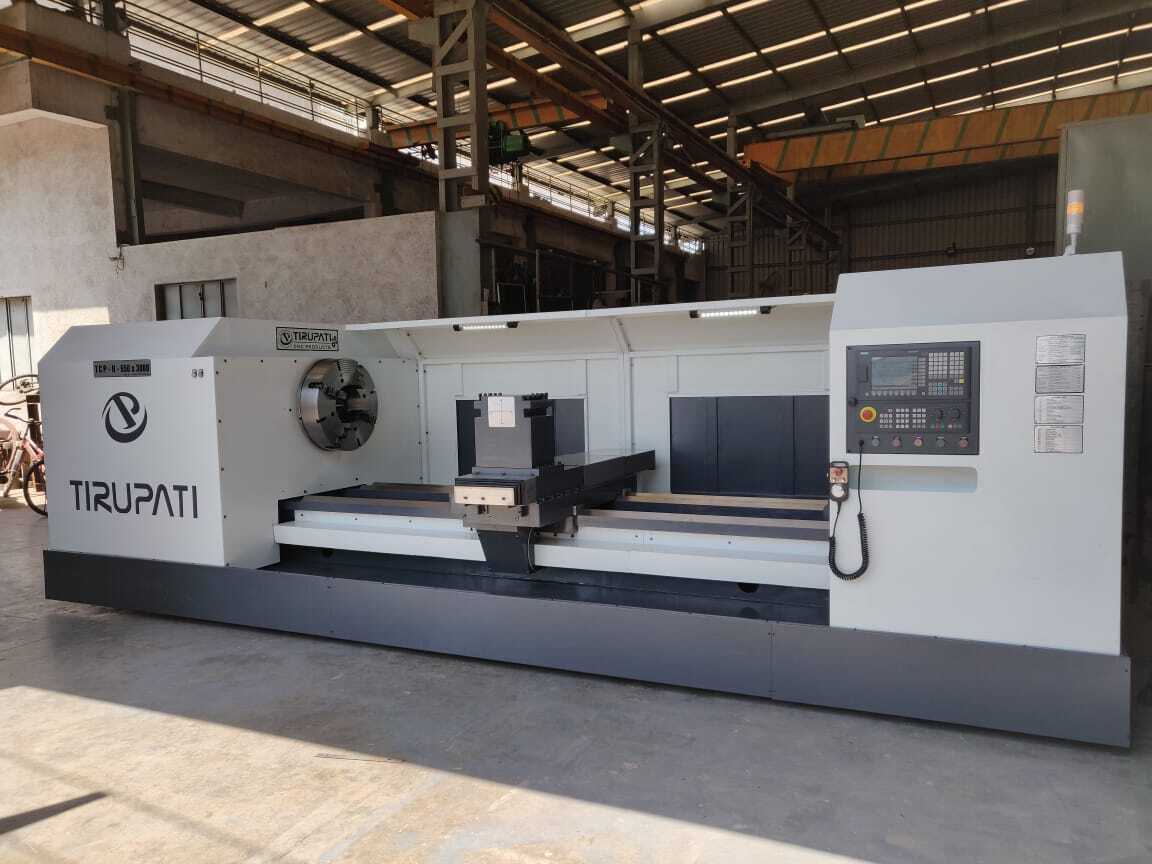

Cnc Roll Turning Lathe Machine - Tcp H600 X 3000 Power Source: Electric
Price:
Get Latest Price
Minimum Order Quantity :
1
Brand Name :
Tcp
In Stock
Product Specifications
| Product Type | CNC ROLL TURNING LATHE MACHINE |
| General Use | CNC Machine |
| Computerized | Yes |
| Automatic | Yes |
| Power Source | Electric |
| Warranty | Mechanical 1 Year & Controller 2 Years |
| Supply Ability | 10 Per Month |
| Delivery Time | 8 Week |
| Main Domestic Market | All India |
Product Overview
Key Features
Max. Turning Length -3000mm
Max. Turning Dia.- 600mm
Total Length Of Bed (ZTravelling Space) - 4870mm (3860mm)
Height Of Center - 525mm
Width Of Bed - 760 mm
Guide ways - 4
Swing Over Bed - 950mm
Swing Over Cross Slide- 625 mm
Admit Between Centers -3000 mm
Bed Type - One Piece Plano
Head stock Spindle Taper- MT 6
Spindle Front Axis Dia.- 215mm
Chuck - 600 x 4 Jaw Manual Dog Chuck
Chuck Clamping Dia. -100 - 500mm
Max. Work piece Capaity- 6 Ton
Tail stock Quill Dia. -150mm
Tail stock Quill Travel- 250mm
Tail stock Quill Taper -MT 6
Tail stock Movable -Manual
Tail stock Quill Movable- Manual
Spindle Speed - 20 -100 RPM
Spindle Main Motor - 22Kw Induction
X Axis Servomotor & Drive - 15Nm
Z Axis Servomotor & Drive - 22Nm
X Axis Cross Feed Speed- 2 - 3000 mm/min
Z Axis Longitudinal Feed Speed - 2 - 3000 mm/min
X Axis Cross Rapid Movement - 5000 mm/min
Z Axis Longitudinal Rapid Movement - 4000 mm/min
Controller System -Siemens 808D Advance
Headstock Bearing - Taper Roller
X - Balls crew Dia. -50mm
Z - Balls crew Dia. -63mm
Head stock Driven - V -Belt Cone Pulley
Tool post (Fixed Type) -One Piece Two Position
Tool Holder Size - 40 x 40mm
Machine Weight - 9 Ton
Machine Packing Size (Lx W x H) - 6500 x 2000 x 1950
