Swing Table Type Shot Blasting Machines - Swing Table Diameter 750-1800 Mm, Weight Capacity 350-2500 Kgs | Ideal For Desanding, Decoring, Rust Removal, And Surface Hardening

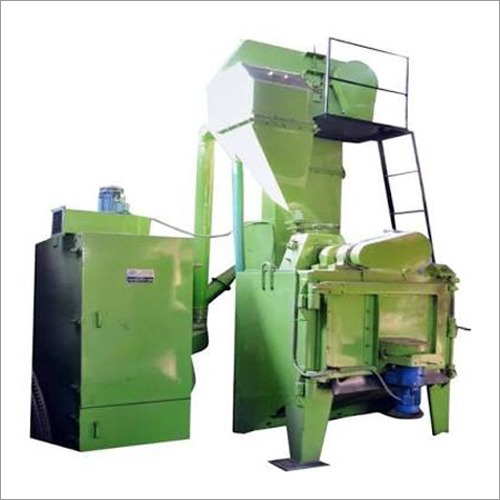

We are privileged manufacturer, supplier and exporter of Swing Table Type Shot Blasting Machines in Jodhpur, Rajasthan, India. Table type shot blast machines are designed and built as fully integrated blast cleaning systems to handle larger and/or more fragile castings than barrel machines. They provide a cost effective solution for batch cleaning. Table type Machine consists of Vertical door with a table type work/job handling system. This table is directly mounted on the door and it rotates on its own axis.This table swings out as the door is opened, making the full area easily approachable for loading and unloading of the components. Components to be blasted will be placed on this work table and door of the machine is closed. Blast wheel unit is strategically placed at the top of the Blast cabinet will fire abrasive at high velocity on the components placed on the rotating work table and blast cleans them thoroughly. Rotational mechanism of table ensures that component will get exposed to the blast stream for through cleaning.
Models Available -

BT-STM-30
Having Swing Table Dia.-- 750 MM with Weight Carrying capacity of 350 KgA s

BT-STM-36
Having Swing Table Dia.-- 900 MM with Weight Carrying capacity of 400 KgA s

BT-STM-42
Having Swing Table Dia.-- 1200 MM with Weight Carrying capacity of 750 KgA s

BT-STM-72
Having Swing Table Dia.-- 1800 MM with Weight Carrying capacity of 2500 Kgs
