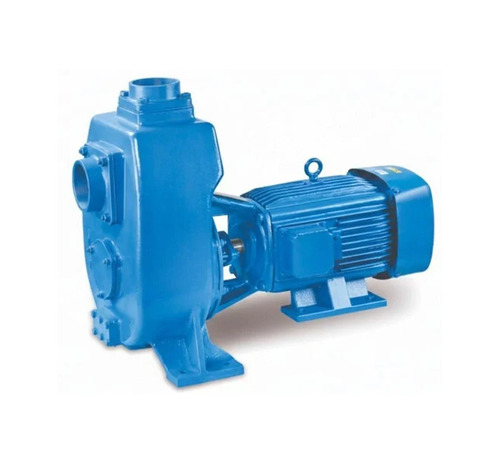

Centrifugal Mud Pump - Ci, Cs, Ss-316, Alloy-20 Materials, Up To 75 M3/hr Flow Rate, 58 M Head, 32-80 Mm Discharge Size, Non-clogging, Heavy Duty Self-priming Design, Quick Automatic Air Release

Operating Range
Capacity : Up to 75 M3/hr
Head : Up to 58 mtr
Discharge Size : 32 mm to 80 mm
Temperature : Up to 110C
Pressure : Up to 5.8 Kg/cm2
Speed : Up to 3500 rpm

Materialof Construction
C. I, C.S, SS-304 / 304L, SS316 /316L, Bronze, Alloy-20, CD4MCU Hast alloy B & C, etc.
Duplex stainless steel, super duplexstainless steel


Applications
Pier, Excavations, Pits, Pot-holes etc, Grampanchayat, Municipalities, Hospitals, Large Housing Colonies, industries like Chemical, Pharmaceuticals, Food, Cement, Paper, Sugar, Salt, Steel & Other for Liquid Cargo from Freighter, Barges.
Mobile machinery - Cooling water for Marine Engines & Shovels.
Civil construction dewatering foundations, Trenches & Pits, Filter Press Feeding.
Waste Water treatment plant (ETP/STP)
Dewatering, Mud, Marine, Effluent, Hotel, Loading & Transfer of Oils, Spirits, Swimming Pools.
Pumping Petroleum products & Chemical.
Public utilities-sewage pumping.


Features
Non-clogging designed for high efficiency.
Semi open type & hand finished for perfect smooth flow.
Designed for automatic air release during priming.
Heavy duty built in volute having self-priming features and integrally cast with base from closed grained C.I. Castings.
Long life due to replaceable wearing parts.
Quick automatic self-priming action.
Graded casting & SS shaft, increase service life.
Repairs possible without disturbing the pipe connection due to back pull out design.
Perfect sealing assured by high quality mechanical seal which cannot run dry because of internal oil reservoirs.
Bearings greased for life, save external lubrication. Minimum need for inspection & maintenance.
No foot valve required.
Priming of suction pipe line not required.
Can be supplied bare-shaft or with IE3 motors for energy saving.
