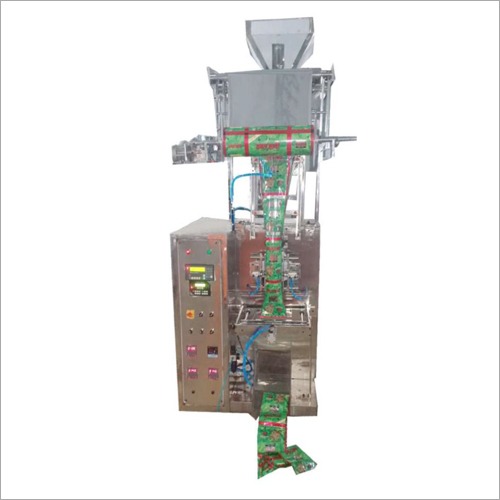

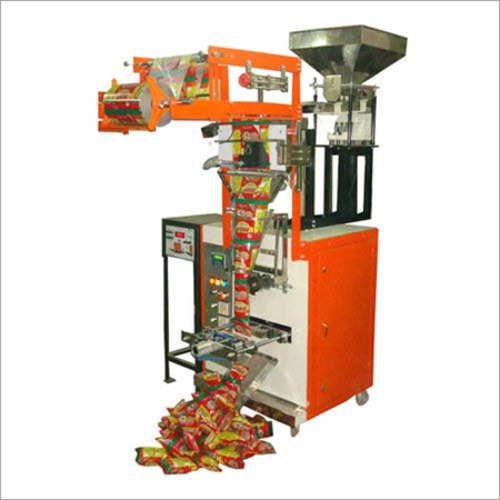

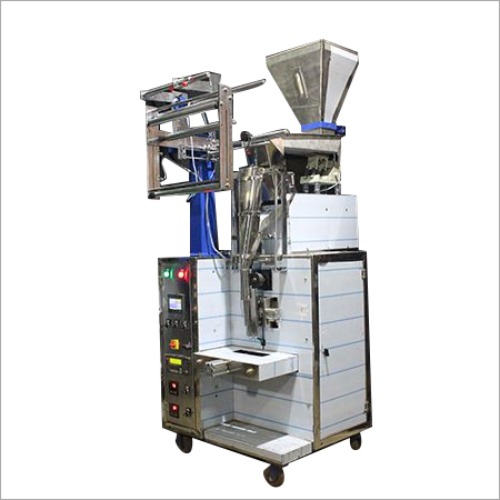

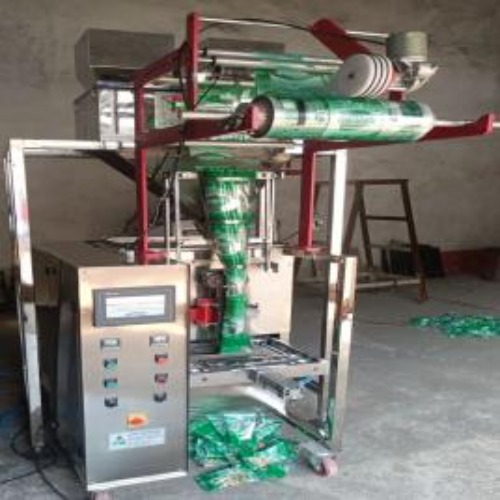

Single Head Weigh Filler Machine - Application: Contact Parts Food Grade 304 Stainless Steel. M.s. Painted Body With Main Control Panel

3

3

3

1 Piece/Pieces

1 Unit/Units

1 Unit/Units

SS304

SS304

MS Powder Coating, Stainless Steel 304

1300 Pcs/hr

3000 Pcs/hr

40 to 100 packets per/minute Pcs/min

1 YEAR

1 YEAR

Yes

220 Volt (v)

280 Volt (v)

AC 440 Volt (v)

140 Foot (ft)

400 Foot (ft)

2100 x 1300 x 3000 (approx.) Millimeter (mm)

220 VAC , SINGLE PHASE

220 VAC

1 db

1 db

2000 WATT

4000 WATT

Others

Others

1 Per Week

1 Per Week

10 Per Month

delhi

YES

No

No

SINGLE HEAD WEIGH MACHINE TO PACK POWDER AND GRANUEL ITEM BY LOAD CELL FOR BETTER ACCURACY. UPTO 1KG Speed: 20-25 packs per minute. Probability of Inaccuracy : + 1% Power: Single phase, 230VAC, 50-60Hz Power load : 2 KW Weight : approx. nett:250-300 kg,

Powder coated full size control panel. The MMI (operator Interface) with keyboard, temperature indicators, controllers, and other machine control buttons and emergency stop switches. The panel is protected against poor power supply quality or in other words the machine stops in case of over load, under voltage and single phasing and surges. All wires and terminals are numbered inside the panel. The temperature controls and setting are provided in the operator interface. Built in EMC Filter for reduction in noise effect. In built stirrer used for stirring of powder to avoid formation of lumps. 11) Filling System Multi Head Weigher ( 10 Head) : Stable 10bucket structure Stainless Steel cladded and Stainless Steel panel Best weight combinations chosen by scientific computer. Correct calculation by high- precision load cell. Running stability through Pneumatics. A regulated speed of open- close material bucket cover provides measured material, prevents crushing, and damage. All the contact parts made of stainless steel to maintain neatness and hygiene. 12.Bag Type: Center sealed pillow type pouch 13.Packaging material: Heat Sealable laminated polyester or PE. 14.Speeds & Accuracies: (Depending upon the physical and flow characteristics of the product) @ filling accuracy of +/- 2% of the total grammage. PPM 10gm to 50 gm @ 55-60 pouches per min PPM 100gm to 250 gm @ 35-45 pouches per min PPM 500gm to 1kg @ 25-35 pouches per min The above stated speed can be met subject to:- a)Uninterrupted product flow. b)Uniformity of the machine to an effective air pressure system. c)Connection of the machine to an effective air pressure system. d)Strict Maintenance of the machine as per our Instruction Manual. The above stated accuracies can be met subject to:- a)Feeding of the product at a constant rate so as to maintain the level inside the machine hopper. b)Cleaning of the Auger Screw & Pipe at regular time intervals. c)Constant Bulk density. Note:- a)1Voltage Stabilizer for machine: 6KVA, for single phase power supply, 3 step type, suitable for input of 140 to 280 volts b)COMPRESSED AIR PRESSURE: Adjust the regulator to give a reading on the dial gauge of 6 kg/cm2 (85psi). (This pressure should remain constant and it is recommended that the compressor is set to cut in and out, at pressure of 8 kg/cm2(115psi) and 10 kg/cm2 (140 psi) respectively.
