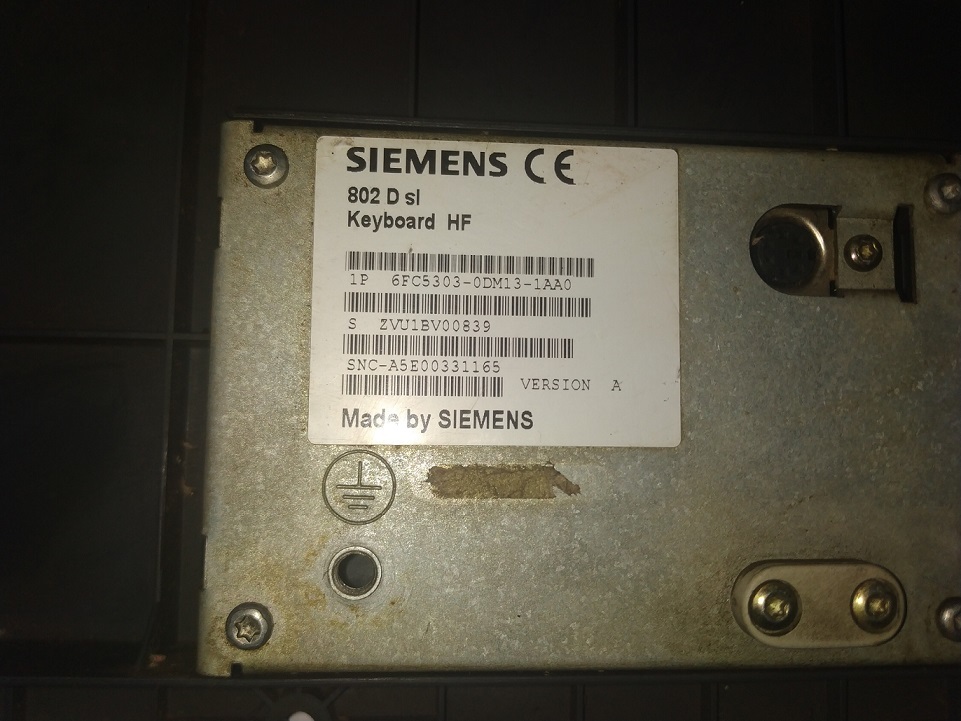

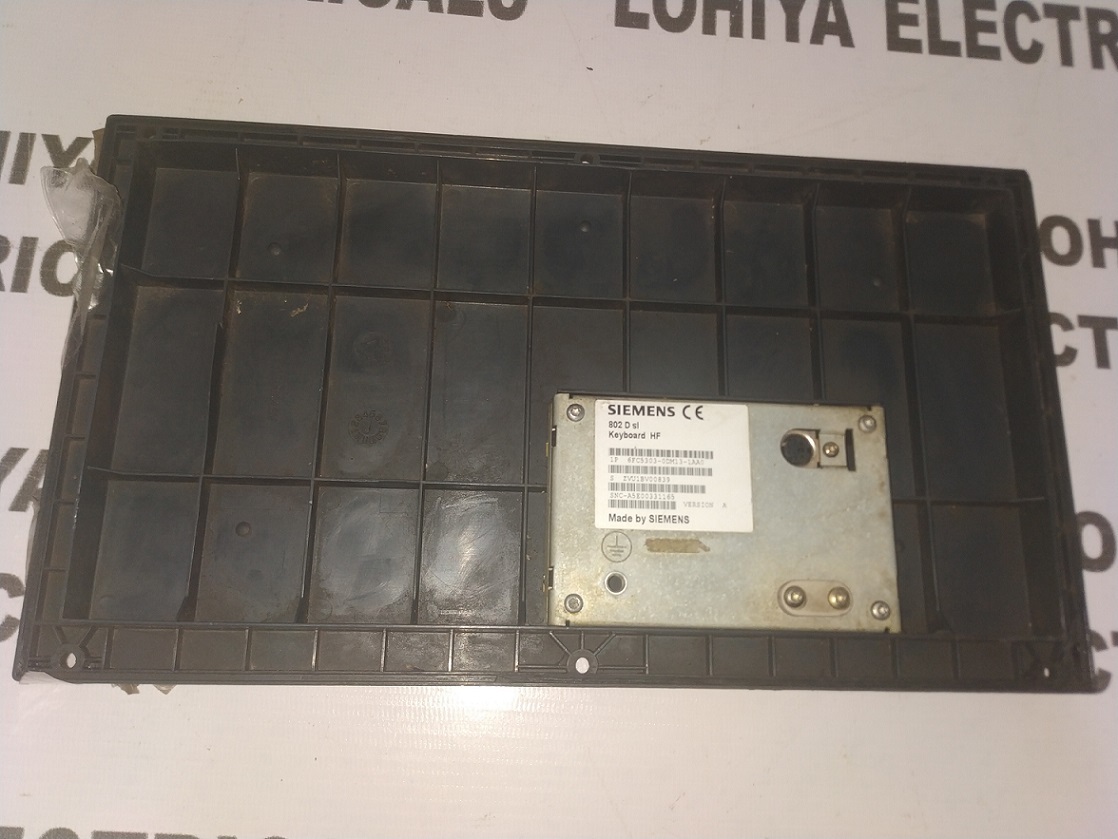

Siemens 6fc5303-odm13-1aa0 Keypad

Price:

Get Latest Price

Brand Name :

Siemens

In Stock

Product Specifications

Components	Integrated flexible circuit, polyester overlay, embossing
Operating Voltage	24V DC
Way	Multi-way membrane switch matrix
Thickness	Approx. 0.8 mm
Rated Current	Max. 20mA (per contact)
Base Material	Other, Polycarbonate / Flexible PCB
Protection Class	Class II (front panel)
Current Rating	20mA
Cover Material	Other, Polyester overlay
Panel Type	Operator Interface Keypad
Features	Long life cycle >1 million actuations, tactile feedback, chemical resistance, easy cleaning
Control System	Compatible with SIEMENS 6FC5 series CNC
Rated Operation Voltage	24V DC
Cabinet Material	N/A (keypad only)
Rated Insulation Voltage	100V DC
Connectivity Type	Flat ribbon cable connector
Protection Level	Other, IP54 (front panel mounted)
Product Type	Other, Operator Panel Membrane Keypad
Material	Other, High-grade Membrane Switch and Flexible PCB
Surface Finish	Other, Matte, anti-glare
Standard	SIEMENS OEM (Original Equipment Manufacturer) Standard
Surface Color	Other, Grey with printed symbols
Rated Voltage	DC 24V (typical for keypad interface circuits)
Frequency (MHz)	N/A (keypad not frequency dependent)
Maximum Output Current	20mA (per membrane switch contact)
Dimension (LWH)	260 mm x 120 mm x 0.8 mm (typical)
Application	Industrial CNC Control Panels (SINUMERIK systems)
IP Rating	Ip54
Display Type	Other, Not Applicable (Keypad only)
