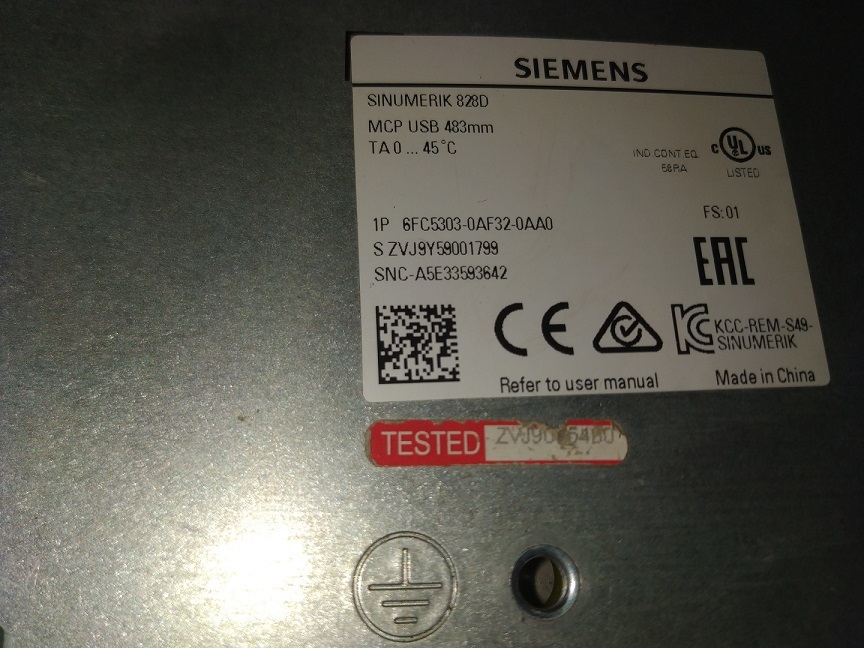

Siemens 6fc5303-0af32-0aa0 Keypad

Price:

Get Latest Price

Brand Name :

Siemens

In Stock

Product Specifications

Components	Flexible membrane keypad, graphic overlay, connector tail
Protection Class	Class II (protective insulation)
Rated Current	Signal level (typically < 50mA)
Protection Level	Other, IP65 (front side when mounted)
Control System	SIEMENS SINUMERIK CNC
Connectivity Type	Flat flexible cable tail
Cover Material	Other, Polyester (PET film)
Rated Operation Voltage	24V DC input (panel circuitry)
Panel Type	Front panel membrane keypad
Rated Insulation Voltage	100V AC (typical for membrane switches)
Thickness	0.7 mm (typical membrane keypad)
Base Material	Other, Polycarbonate
Way	1-way (single function input)
Current Rating	< 50mA
Operating Voltage	24V DC
Cooling System	Not applicable (passive device)
Features	Long operational life, chemical resistance, tactile feedback, easy installation
Product Type	Other, Operator keypad membrane for CNC panel
Material	Other, Polyester overlay with PET membrane switch
Surface Finish	Other, Matte finish and abrasion resistant
Standard	SIEMENS OEM
Surface Color	Other, Grey with highlighted function blocks
Rated Voltage	24V DC (typical for operator panels)
Maximum Output Current	NA (keypad as input device)
Dimension (LWH)	220 x 85 x 1 mm
Application	CNC Operator Interface (SINUMERIK control systems)
IP Rating	Other, IP65 (when properly installed on panel)
Display Type	Other, None (keypad only)
