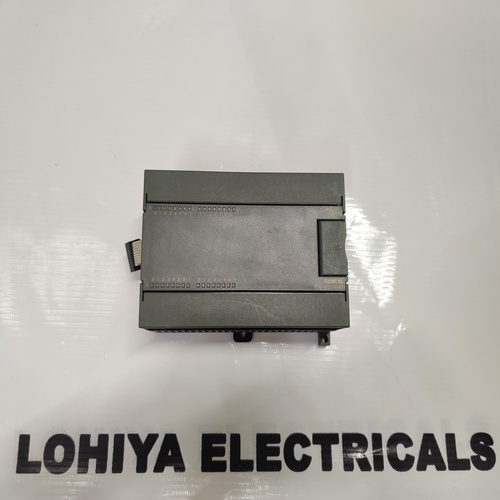

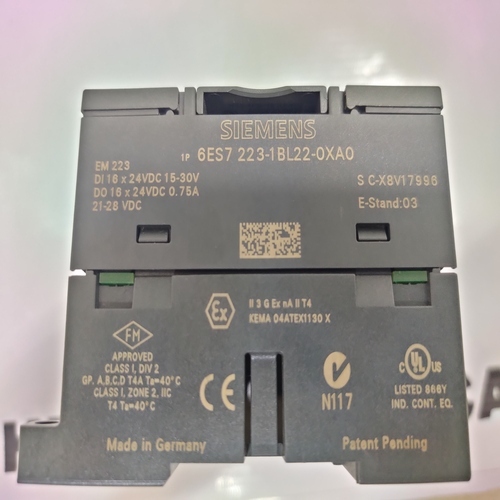

Siemens 6es7 223-1bl22-0xa0 Digital I/o Module - Compact And Reliable Design | Versatile Digital I/o Connectivity Options For Industrial Applications

Price: (Approx.)

Get Latest Price

Minimum Order Quantity :

1 Piece

Brand Name :

Siemens

In Stock

Connectivity Type	Removable Terminal Block
Current Rating	Input: 7 mA, Output: 0.5A per channel
Rated Operation Voltage	24V DC
Rated Current	Input: 7 mA; Output: up to 0.5A per channel
Protection Level	Other, IP20
Protection Class	Class II
Cabinet Material	Plastic
Control System	SIMATIC S7-200
Way	8 DI / 8 DO (Digital Input/Digital Output)
Operating Voltage	20.4 - 28.8V DC
Base Material	Other, Flame-retardant plastic
Panel Type	DIN Rail
Components	Integrated I/O Circuit
Features	Easy installation, Compact design, LED indication for input/output status
Thickness	Standard Siemens module housing
Rated Insulation Voltage	500V AC
Cooling System	Natural Air Cooling
Cover Material	Other, Plastic
Product Type	Other, Digital I/O Module
Material	Other, Plastic and Electronic Components
Surface Finish	Other, Matte
Standard	IEC 61131
Surface Color	Other, Grey
Rated Voltage	24V DC (Input); 24V DC/Relay (Output)
Frequency (MHz)	50/60 Hz
Maximum Output Current	0.5A per point (Relay output)
Dimension (LWH)	120 x 80 x 40 mm (approx.)
Application	Industrial Automation, PLC Expansion
IP Rating	Other, IP20
Display Type	Other, Status LEDs
