Lcd Touch Screen Controller Salt Spray Tester So2 Sulfur Dioxide

Applicable Industry

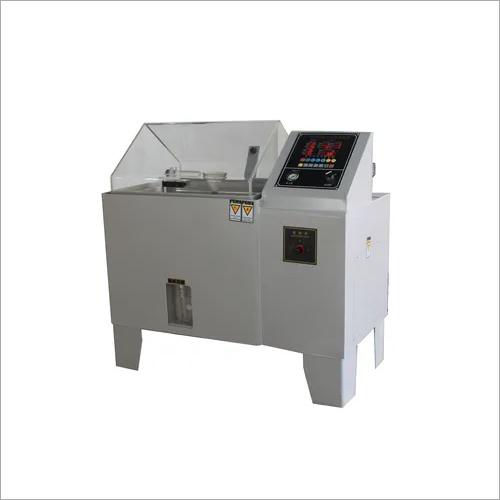

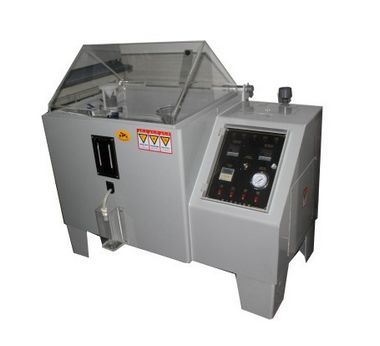

Salt spray testeri SO2 sulfur dioxide)A designed with Programmable color LCD touch screen controller Ethernet connection, PC Link and Temperature Sensor. It has Centrifugal wind fan. Cyclic corrosion tester are used in many industries as they help in corrosion resistant of the products. Salt fog is the dispersed system made up of tiny liquid drop which contains salt in air. It is used to create manual simulation salt mist environment to test anti-corrosion resistance of materials
Salt Fog Test DIN EN ISO 9227 a DIN 50 021
Condensed Water Test DIN EN ISO 6270-2 a DIN 50 017 and EN ISO 6988 a DIN 50 018
Standard Climate DIN 50 014, clause 5 ambient temperature.If you need more models about our test equipment, please reference our chamber-testingi .i com
Structure
Salt spray testeri SO2 sulfur dioxide)A are upgrade to programmable controller and Ethernet access. JOEO Support salt fog chambers all models are automated, and can working continuously.various models can meet different test requirements,such as Model STC-60 salt spray tester(110L),STC-90L salt spray chamberA (270L),STC-120 salt spray chamber(500L),STC-160walk in salt spray chamber(800L),STC-270L walk inA Salt spray tester (1500L); Need more big one ,we can also special support with Walk in salt spray chamber. Feel Free to inquiry online.

Salt spray testeri SO2 sulfur dioxide)A adopts 5mm or 8mm imported gray and white impact resistant P.V.C board, with high temperature resistance up to 85a and corrosion resistance.A
Support frame: Ac 10MM fiberglass rod, corrosion resistant. The steel V-frame and the fiber rod angle are placed to ensure the specimen is inclined at 15-30 degrees.A
Pressure barrel is welded seamlessly with 2.0mm SUS304 stainless steel plateA
Salt spray testeri SO2 sulfur dioxide)A With color touch screen LCD controller, which can record the testing curves.
Program Group Capacity: 140Pattern (Group) 1400Step (above) each program can be set up to Repest99 segment.
Each executive mode time can be arbitrarily set 0-999 hours, 59 minutes.
Each group can be arbitrarily set the cycle of 1-999 .
Has the power memory function, recovery after power continue to perform the not completed the test.
interface A RS232 connect with computer.
