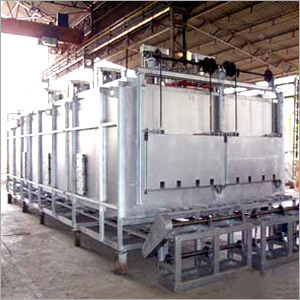

Roller Hearth Furnace

We manufacture Electrically heated/ Gas fired ( LPG/CNG/PNG) , & fuel efficient roller hearth furnace for Annealing, Hardening, Tempering Stress relieving & Normalizing furnace for various shaped components. The furnace maintains high temperature uniformity through sophisticated temperature control system. The furnace is manufactured in different capacities as per the requirement We are listed at the apex in the list of roller hearth furnaces manufacturers in India. The roller hearth furnace offered by us are available with us are widely used for applications like heat treatment of auto components castings, bearing, super metals etc. Customer can choose electrical, gas as a source of heating according their need. Roller hearth heat treat furnaces are the best in term of quality and performance.
Features

Electrically heated or Gas fired (LPG,CNG,PNG)
Temperature range : 250 degree C to 1100 .
Effective Hearth width : 600 mm to 3250 mm

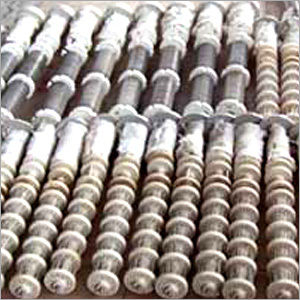

Roller diameter. : 28 mm to 350 mm .
PITCH: 28 mm to 500 mm.

Atmosphere Control : Nitrogen or Exogas as required
Temperature Control : PID /PLC-PID mode.
Process : Tempering, sub critical annealing, annealing, hardening, normalizing, solution annealing
Parts Processed : Bearing Races, Tubes- ERW / Seamless, Cast / Forged products, steel plates,
Stainless steel tubes & Cast products, Transformer Laminations, Motor cores etc
Capacity : 100 kgs / hour to 10,000 kgs / hour
