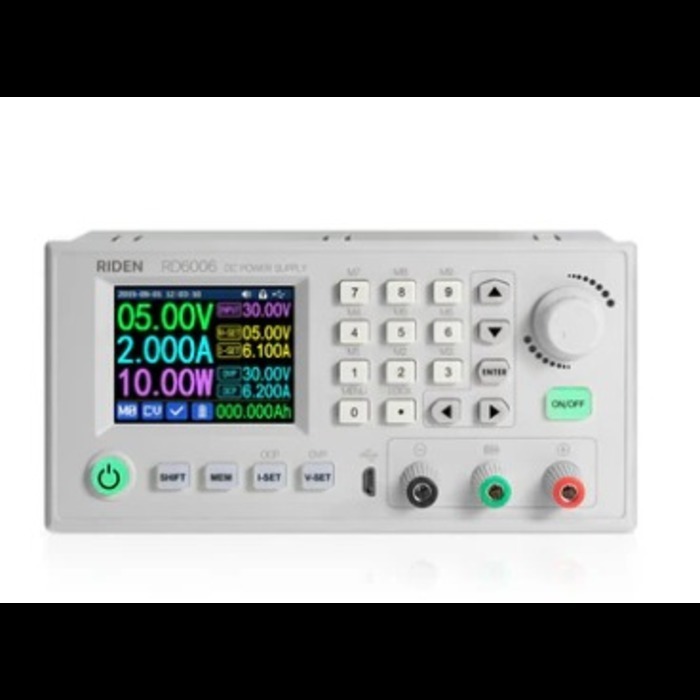

Rd6006-W Digital Control Switch Adjustable Power Supply Dc Stabilized Power Adapter Buck Module Monitoring Power Supply - Application: G

Model: RD6006
Input voltage range: 6-70.00V
Output voltage range: 0-60.00V
Output current range: 0-6.000A
Output power range: 0-360W
Input voltage measurement resolution: 0.01V
Output voltage setting measurement resolution: 0.01V
Output current setting measurement resolution: 0.001A
Battery voltage measurement resolution: 0.01V
Input voltage measurement accuracy: (1%+5 digits)
Output voltage accuracy between setting and measurement: (0.3%+3 digits)
Output current accuracy between setting and measurement:(0.5%+5 digits)
Battery voltage measurement accuracy: (0.5%+3 digits)
Automatic cut-off current value charging:10mA
Output ripple typical:100mV VPP
Working temperature range: -1040
External sensor Temperature detection range:-10100/0200
External sensor Temperature detection accuracy:3/6
Constant voltage response time: 2ms0.1A-5A Load
Constant voltage mode loadregulation: (0.1%+2 digits)
Constant current mode loadregulation: (0.1%+3 digits)
Capacity measurement range: 0-9999.99Ah
Energy measurement range: 0-9999.99Wh
Capacity and energy statistical error: 2
Buck working mode: Voltage drop >1V and >10%
Over temperature protection: System temperature>80
Screen brightness setting: 0-5(6 level in total)
Screen: 2.4inch color HD display
Cooling fan start condition: Output voltage>40V or Output current>4A
or System temperature>45
Cooling fan shut down condition: Output voltage<40V and Output current<3.9A
and System temperature<45
