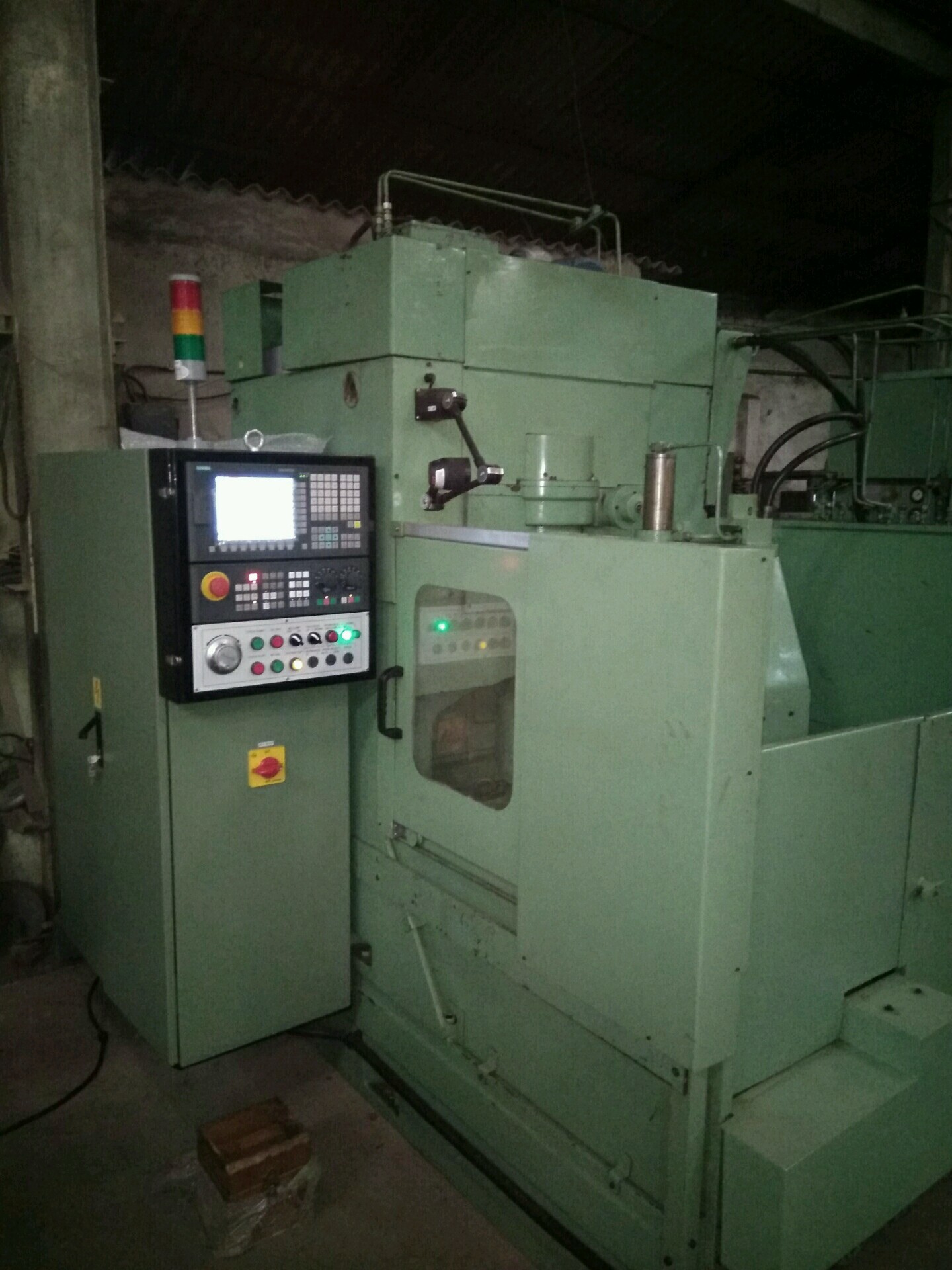

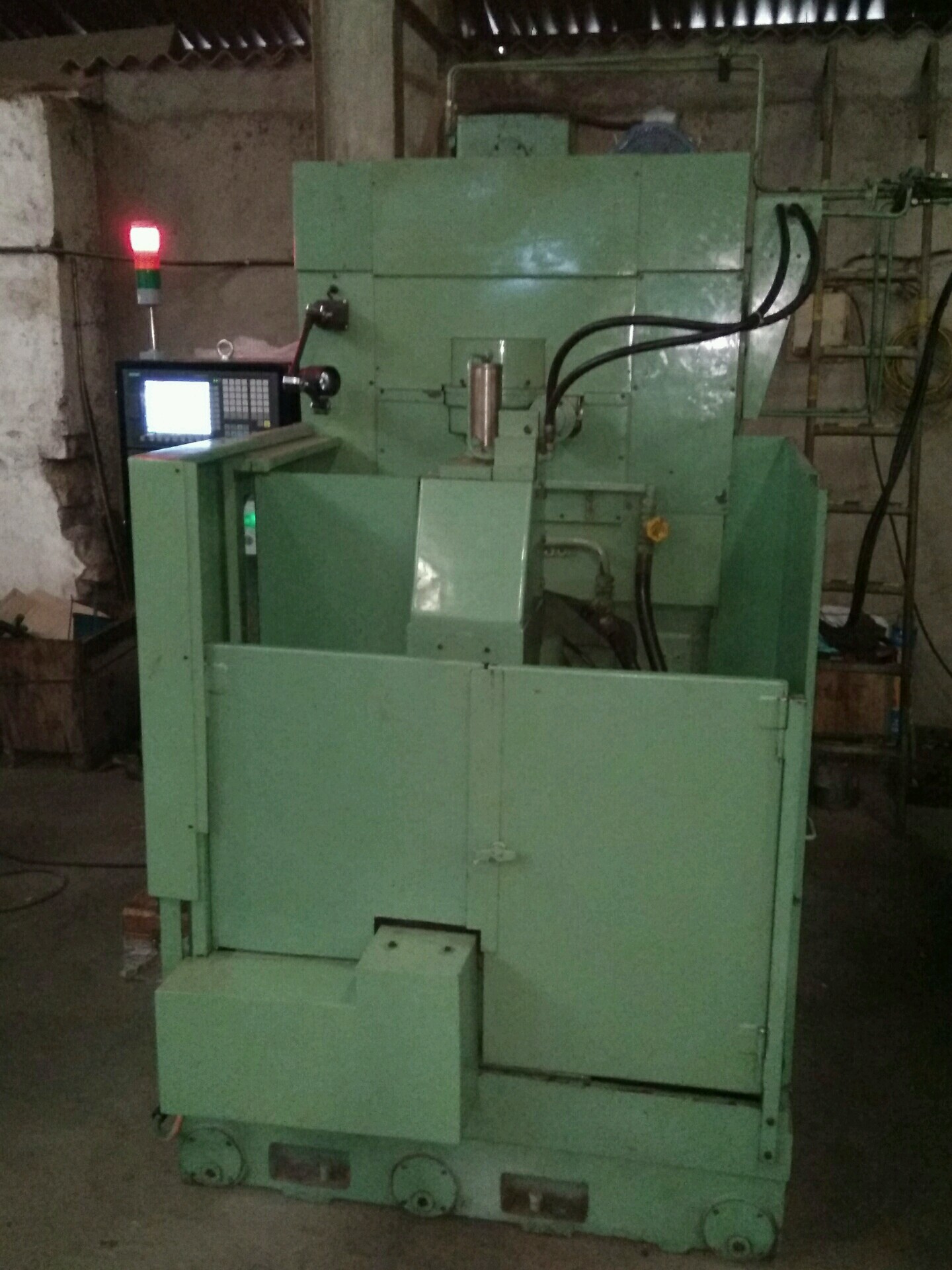

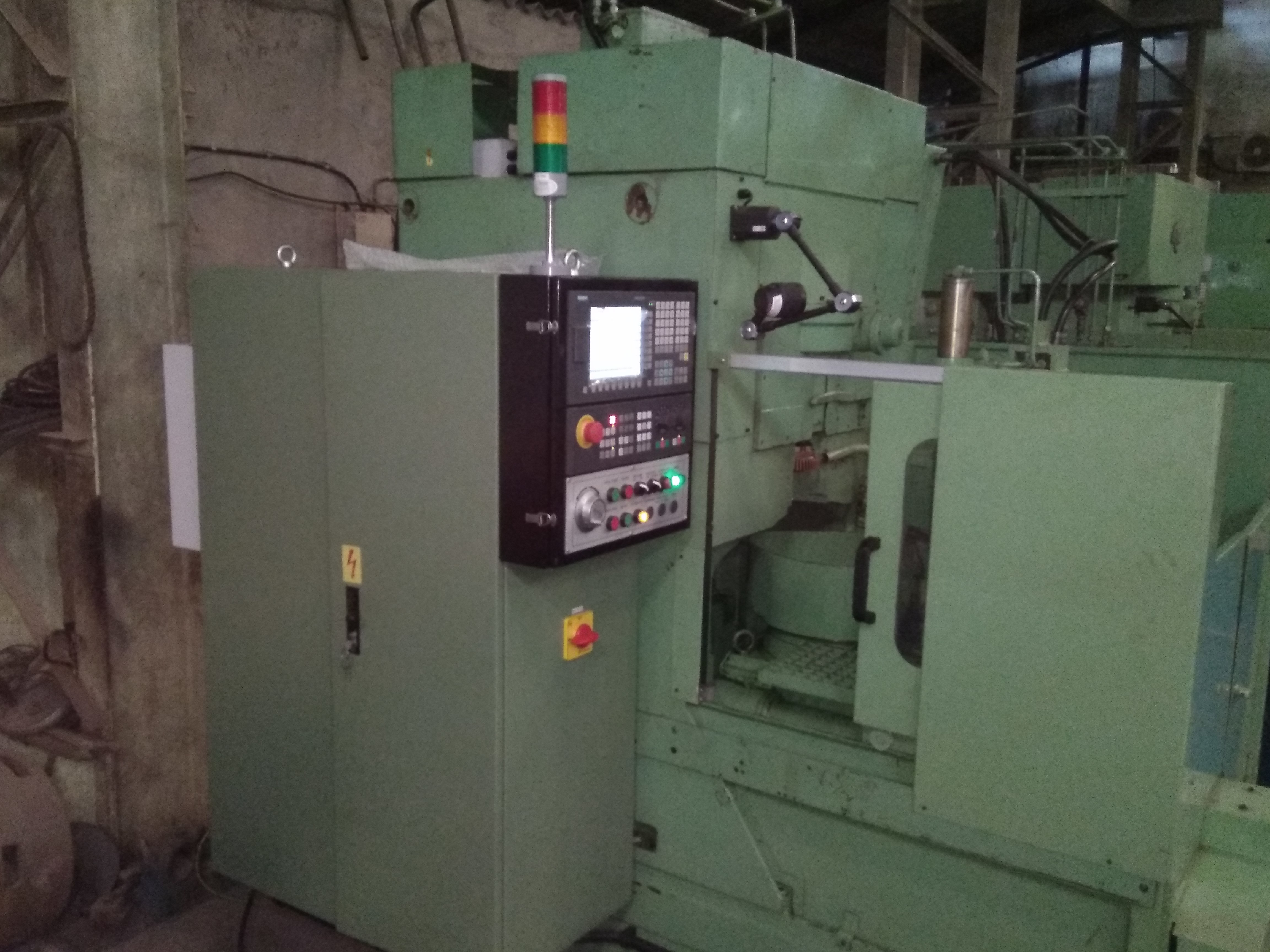

Liebherr Ws1 Cnc High Speed Gear Shaper Machine For Sale

Machine Id:1053
Model:WS1 CNC
Make:Liebherr
Year:2017
Dimensions:
Power:
Location:India

Category:Gear Shapers CNC
Serial No:Not Available
Country:Germany
Type of Machine:High Speed Gear Shaper with CNC Control
Weight:0.0
Asking Price:onrequest

Specification:
This machine was totally cleaned, hydraulic and coolant systems drained and cleaned, all gib adjustments were checked, all worm lashes were adjusted, all old parts specially bearings were replaced, all mostly oil leaks replaced and then the machine was fully recertified using the ISO alignment standards for CNC Gear Shaper.

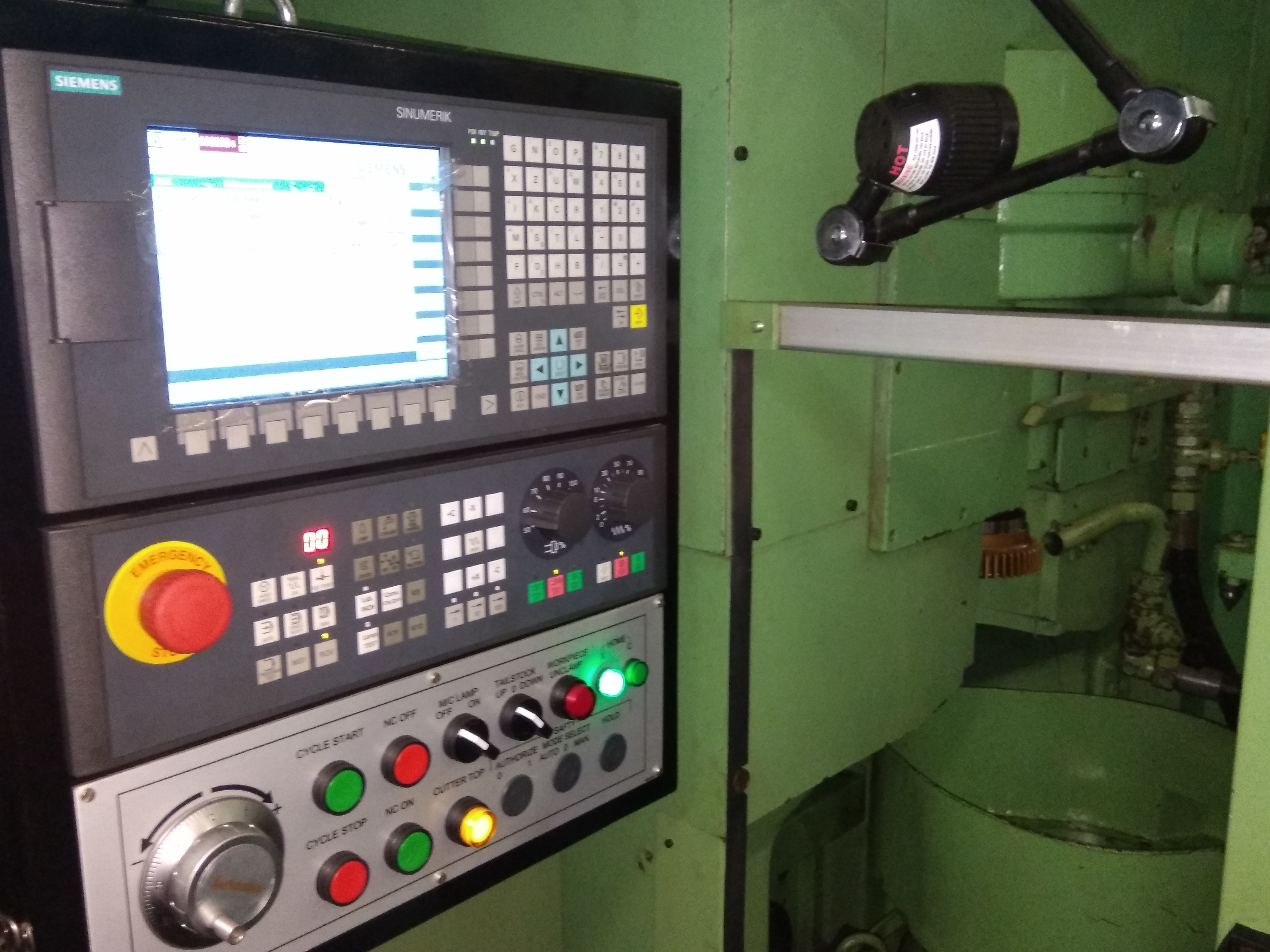

All the old German controls were eliminated and replaced with new Siemens 808D.
This machine was recontrolled using a BRAND NEW 2017 YOM
Siemens 808D, Digital drives and AC servo motors Power CNC controlling digital Servo drives for the axes.



External gears, max. , approx. 265 mm

Internal gears, max. workpiece 300 mm

Module range 0.3 - 6



Length of stroke 0 - 55 mm



No. of strokes, infinitely variable 220 1,100 /min

Feed range 2.4 2,400 mm/min

Rotary feed 0.06 4.95 mm/rev



Weight, approx. 7,300 kg
