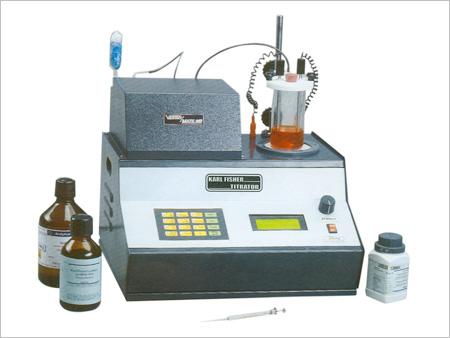

Karl Fischer Titrator With 1 Year Warranty - Application: Laboratory

Supplied with 250ml Reaction Vessel, Dual Platinum Electrode, PTFE Paddle PTFE Assembly , Moisture Trap for Reaction Vessel & 250ml Amber Reservoir Bottle, Dispensing Tube (02 Nos), PTFE Tubing for Dispensing Path, Operational & Instruction Manual, Manufacturer Test Certificate and Warranty Card.

Technical Specification :
Method of Detection : Conductometric
Backlit LCD Display : 16 x 2 Line Alphanumeric
Range of Moisture Detection : less than 20 PPM to 100%
Display of Reading in ml with minimum resolution : 0.01ml.
Dispenser : Motorized Dispensing for low & accurate measurement of reagent.
Electrode : Dual Platinum Electrode
Stirring Time : 00:00 to 99:00 ( Minutes:Second ) - Users Adjustable
End Point Time : 1-99 Seconds , Users Adjustable
End Point Sensitivity of Moisture Detection : Users Adjustable
Input : Electrode Connector
Power supply : 230 VAC A 10% , 50 Hz

Salient Features :
Metalic Epoxy Based Powder Coated Body
Built in Magnetic Stirrer with soft touch Key Speed Controller
Rugged PTFE Housing for holding Dual Platinum Electrode & Moisture Trap.
Automatic end point detection with Audio Alarm.
Auto Drain Facility for cleaning reaction vessel (Optional)
OVER TITER Audio Alarm save KF Reagent
Onsite Dispenser Calibration/Validation Facility.
MOC of Dispenser is SS/ABS/PTFE for Corrosion Protection & maintenance Free Operation.
Flushing System for cleaning dispensing path.

Optional :
Auto Drain of Reaction Vessel

Analysis Report :
Report Date & Time : 12-FEB-2010 a 16:09
Company Name: ANALAB (VADODARA)
Calibration Date & Time : 11-FEB-2010 a 23.34
Calibration Method: Water by Volume
Average Titer Factor: 6.666666
Record Number: 00
Analysis Date & Time: 12-FEB-2010 a 16.00
Sample Type & Method: Liquid by Volume
Volume of Sample (ml.)): 05.000
Density of Sample: 0.789
Stirring Time (Min:Sec): 00:00
End Point Time (Seconds): 20
End Point (ml.): 01.21
Moisture %: 000.2044
Moisture (PPM): 0002044.0
H2O (mg/ml): 003260.33
