HEAT TRANSFER THROUGH COMPOSITE WALL APPARATUS
These products are manufactured by our skilled engineers using high-grade materials and innovative technology. The offered walls are available in different designs and other related specifications, in order to meet the variegated expectations of our valuable customers.
Our provided range is rigorously tested by the team of our professionals.

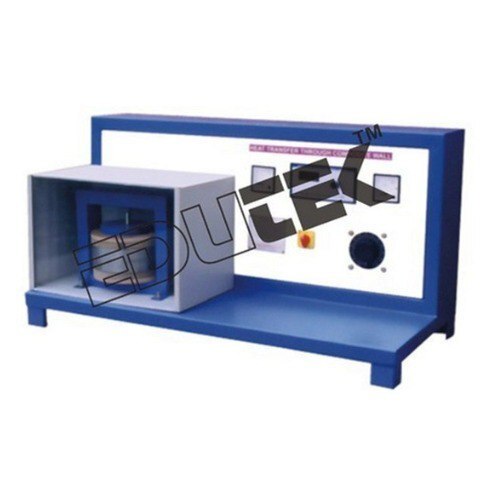

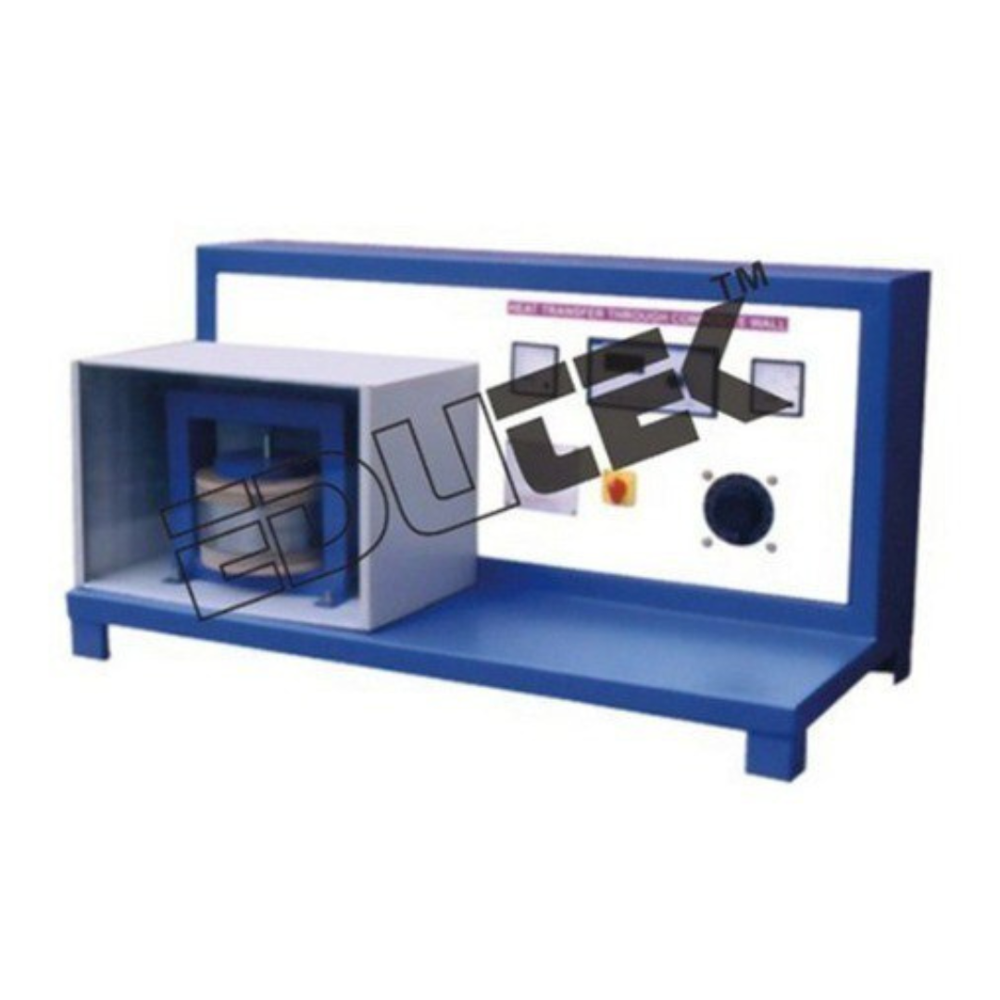

The setup consists of a heater sandwiched between two sets of slabs.
Three types of slabs are provided on either sides of heater, which forms a composite structure.
A small hand press frame is provided to ensure the perfect contact between the slabs.
A variac is provided for varying the input to the heater and Digital Voltmeter and Digital Ammeter display the heat input. Heat produced by heater flows axially on both the sides.
Temperature Sensors are embedded between interfaces of slabs to determine the temperature gradient. The experiment can be conducted at various values of input and calculation can be made accordingly.
Experiments
To determine total thermal resistance and thermal conductivity of composite wall
To plot temperature gradient along composite wall structure
The experiments can be conducted at various values of input & calculation can be made accordingly.
To plot Heat flux Vs thermal conductivity in composite structure.
Features
Strongly built
Rust resistance
Optimum performance
Specifications:
Electricity Supply:
Table for set-up support
