Free Vortex Apparatus - Application: Fluid Mechanics Lab Equipment

Specification:

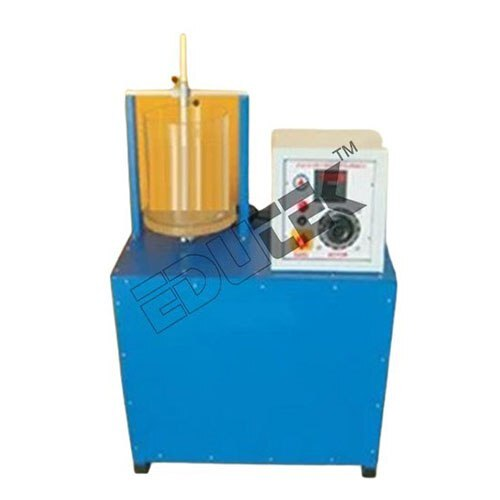

FREE VORTEX APPARATUS
The experimental set up consist of a circular transparent cylindrical tank in which four circumferential jets are placed along the circumference of the cylinder near its bottom which helps in the formation of free vortex. It is assumed that the torque exerted by these jets is negligible.
A pointer can be transversed horizontally & vertically across full diameter of the vessel so that water surface profile can be measure. Both axes contain graduations so that exact position of the pointer is known. The experimental procedure involves measurement of the resulting free surface that represents the variation of the sum of the pressure head and datum head. An arrangement is provided to drain the vessel.
Experimentation:
To plot the surface profile of a free vortex by measurement of the surface profile coordinates and to show that total energy is constant throughout vortex.
Product Specification
Country of Origin: Made in India
Material: Stainless Steel
Application: Laboratory
Power Source: Electric Motor
Flow Measurement: Using Rotameter
