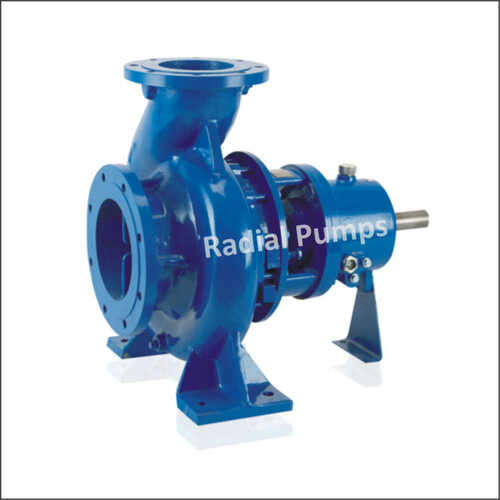

End Suction Back Pull Out Pump - High Pressure, Up To 2200 M3/hr Flow Rate, Up To 150 M Head, Multi-material Options, Efficient Hydraulic Design, Low Npsh, Noise-free Operation, Back Pull Out Design, Energy Saving Ie3 Motor Option

Operating Range
Capacity : Up to 2200 M3/hr
Head : Up to 150 mtr
Discharge Size : 25 mm to 300 mm
Temperature : Up to 350C
Pressure : Up to 15 Kg/cm2
Speed : Up to 3500 rpm

Materialof Construction
C. I, C.S, SS-304 / 304L, SS316 / 316L, Bronze,Alloy-20, CD4MCU Hast alloy B & C, etc. Duplex stainless steel, Super duplex stainlesssteel,

Applications
Hot & cold water circulation, cooling water circulation.
Drip irrigation, water supply and building services.
Thermic fluid, Jet dyeing, volatile fluids.
Condensate handing, firefighting system, ETP/STP.
Engineering, marine, refrigeration and cooling tower.
Chemicals, petrochemicals, refineries, sugar, pulp &paper, laminates industries.
Power plants, desalination plants, steel plants, rubber, Organic and inorganic chemical, DM water, sea water.
Food, salt, textile and general industries services. Corrosive and abrasive process chemicals like acids, alkalis, Solvents, slurries, hydrocarbons, crystallizing liquids, nitric, Ammonia, fertilizer, hos hate.
Chemical effluents.

Features
Back pull out design.
Conforming to DIN 24256/ISO 2858 Dimensions
High efficiency hydraulic design.
Heavy duty shaft, sleeve and bearings.
Low NPSH.
Noise and maintenance free.
Single & double mechanical seal.
Closed impeller with multi vane providing axial balancing of impeller loads.
Steady head and capacity.
One roller bearing on pump end, two angular contact ball bearings.
Grease or oil lubricated bearings
Several flange drilling options according to valid standards.
Suitable with V-belt drive or direct coupled with a motor.
Foot and centerline mounting options.
Can be supplied bare-shaft or with IE3 motors for energy saving.
