Encoder Splitters
Price:
Get Latest Price
In Stock
Product Specifications
| Power dissipation | 200mW |
| Input voltage | 5-28VDC |
| Isolation | 3.55KV |
| Input current | 5mA |
| Load per output | 150mA |
| Output voltage | 15VDC |
| Voltage drop | 0.7V |
| Features | Din rail mountable, IP65 enclosure, High load drive, Versatile input, Flexible output, Signal booster, Noise reduction |
Product Overview
Key Features
Features
- Din rail mountable / Housed in a IP65 polycarbonate enclosure
- Each output can drive150mA load
- Input signals 5/10/24 VDC and HTL/TTL selectable by jumpers
- Output pulse voltage 5/10/24 VDC as per customera s requirement
- Push pull / Open collector (Transistor) outputs
- Supply voltage 24 1Amp
- Continuous power dissipation at (or below) 25A C free-air temperature: 200mW
- Input signal voltage:5 VDC-28VDC, available is 3 varients 5V,10V and 24V
- Input to output electrical isolation: 3.55 KV
- Max. input current:5 mA @5V or 10V or 24V
- Max. load per output point:150 mA
- Max. output voltage:15 VDC
- Max. Voltage drop in output voltage: 0.7 V @ 150 mA load
- Min. input current:1.6 mA @5V or 10V or 24V
- Min.output voltage:5.0 VDC
- Resistance, input to output: 100 Ga
- Connecting one encoder to two independent control systems.
- As a encoder signal booster and reducing high frequency noise.
- To connect incremental encoder with Incompatible signal level to control system.
- For connecting one signal level (5-230 VDC)to another signal level (5-15 VDC)with isolation.
- CE certiified
- Optoisolator:UL
- PCB:IEC61373
- Profile & end plates:CE
- Terminals:UL/CE
Company Details
Focusing on a customer-centric approach, Q-LOG CONTROLS AND SYSTEMS has a pan-India presence and caters to a huge consumer base throughout the country. Get Electrical Goods, Equipment & Supplies from Q-LOG CONTROLS AND SYSTEMS at Trade India quality-assured services.
Business Type
Manufacturer, Service Provider, Supplier
Employee Count
10
Establishment
2006
Related Products

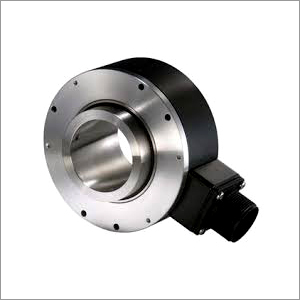

Kubler Incremental Encoder - Accuracy: 99 %
