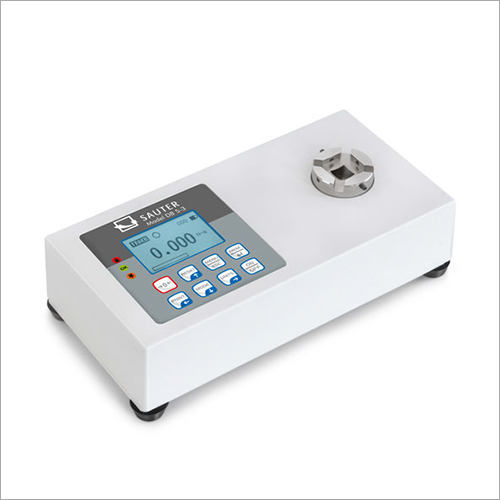

Digital Torque Tester - 8.4 Lb Weight, 3.8 Kg | 100 Lb.f.in Capacity, First/second Peak Torque Detection, 1,000-point Data Memory, Usb And Rs-232 Outputs, Adjustable Gripping Jaws

Being a customer centric organization, we are involved in distributing, trading and supplying a supreme quality range of Digital Torque Tester - Series TT01 in Chennai, Tamil Nadu, India.

Series TT01 is designed to measure application and removal torque of bottle caps up-to 100 lb.f.in (11.5 N.m). Adjustable posts efficiently grip a broad range of containers. There are also optional flat and adjustable jaws available for unique profiles. The basic system has pass or fail indicators. First / second peak torque detection is useful to measure slip and breakaway torques. This can be connected to the MESUR Lite data acquisition software.

Features:

1.Move-able 1.25" (31 mm) length posts accommodate a wide range of sample shapes and sizes
2.Available extended post lengths and other gripping options
3.USB, RS-232, Mitutoyo, and analog outputs
4.Automatic output, data storage, and zeroing upon bottle cap removal helps automate testing processes
5.First / second peak detection for slip and breakaway torques in tamper evident closures
6.1, 000-point data memory with statistics and outputs
7.Password protection prevents unauthorized changes
8.Programmable set point indicators and outputs for pass/ fail determination
9.High-speed 7, 000 Hz sampling rate accurately captures peak torque values
10.Configurable audio alarms and key tones
11.5 different units of measurement
12.MESUR Lite data collection software included


Specifications:

Accuracy: A 0.3% of full scale
Sampling rate: 7, 000 Hz
Power: AC or rechargeable battery. Multi-step low battery indicator is displayed, tester shuts off automatically when power is too low.
Battery life: Back-light on: up to 7 hours of continuous use, Back-light off: up to 24 hours of continuous use
Measurement units: oz.F.in, lb.F.in, kg.F.cm, N.m, N.cm
Output:
USB / RS-232: Configurable up to 115, 200 baud.
Mitutoyo (Digimatic) : Serial BCD suitable for all Mitutoyo SPC-compatible devices.
Analog: A 1 V DC, A 0.25% of full scale at capacity,
General purpose: Three open drain outputs, one input.
Set points: Three open drain lines.
Configurable settings: Digital filters, outputs, automatic output/data storage/zero, automatic shutoff, default settings, key tones, back light, audio alarms, passwords, calibration
Safe overload: 150% of full scale (display shows "OVER" at 110% and above)
Weight: 8.4 lb [3.8 kg]
Included items: Set of 4 1.25" length posts, universal voltage AC adapter, battery, quick-start guide, USB cable, resource CD and NIST-traceable certificate of calibration (data is available for an additional charge).
