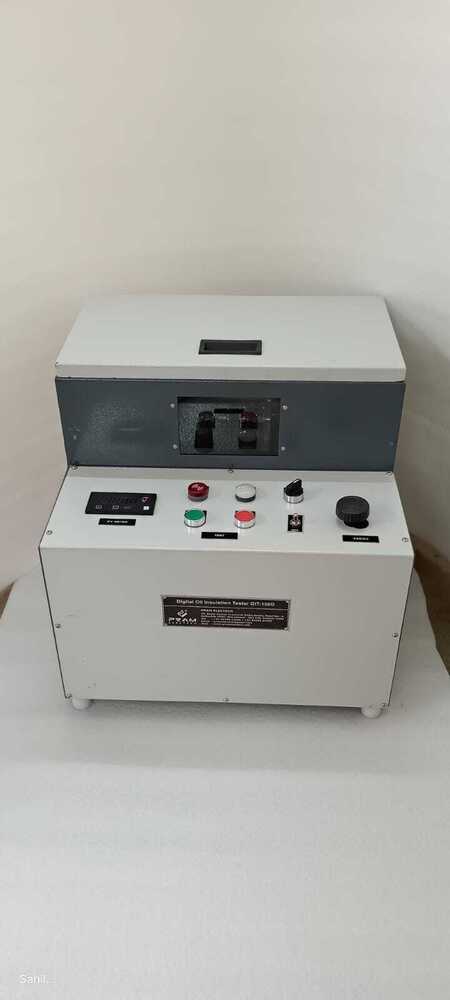

Dielectric Withstand Voltage Oil Bdv Tester - Mild Steel, 52x53x51 Cm | 100 Kv Measuring Voltage Range, Motorized & Automated Operation, Overload Protection
Price: 65490.00 INR / Piece
(55500.00 INR + 18% GST)
Get Latest Price
MRP:
65490.00 INR / Number
Weight :
57.00 Kilogram
1 Pack Contains :
1
Minimum Pack Size :
1
In Stock
Product Specifications
| Color | white |
| Product Type | Dielectric Withstand Voltage Oil Bdv Tester |
| Material | Mild Steel |
| Measuring Voltage Range | 100 KV Volt (v) |
| Operating Temperature | 45 Celsius (oC) |
| Frequency (MHz) | 50 Hertz (HZ) |
| Insulation Box | wooden Box |
| Protection System | Over Current, Under Voltage, Over Voltage |
| Size | 52 (W) x 53 (H) x 51(D) cm |
| Dimension (L*W*H) | L X B X H 52 X 53 X51 CM Centimeter (cm) |
| Weight | 57 Kilograms (kg) |
| Warranty | 1 Year |
| Payment Terms | Cash on Delivery (COD), Cash Advance (CA), Cash in Advance (CID), Cheque |
| Supply Ability | 10 Per Month |
| Delivery Time | 30 Days |
| Packaging Details | WOODEN BOX |
| Main Export Market(s) | Asia |
| Main Domestic Market | All India |
| Certifications | ISO |
| Pkg Box Height | 51.00 cm |
| Mop | 1 |
| Pkg Box Length | 52.00 cm |
| Shipping Type | free |
| Currency | INR |
| Packsize | 1 |
| Unit Type | Number |
| Brand Name | Pram Electech |
| Stock Quantity | 15 |
| GSTIN | 18% |
| Moq | 1 |
| Product Unit | 10 Number |
| MRP | 65490.00 INR |
| Weight | 57.00 Kilogram |
| Price | 55500.00 INR (Approx.) |
| Pkg Box Breadth | 53.00 cm |
| Returnable | No |
| Price Type | fixed |
| Color | white |
| Minimum Ordered Packs | 1 |
| Minimum Order Quantity | 1 |
Product Overview
Key Features
A dielectric breakdown voltage test is a measure of the electrical stress that an insulating oil can
withstand without breakdown. This test is performed for verifying the dielectric strength
of the oil of the transformer. Dielectric Strength is the maximum capacity to resist the voltage of insulating oil.
Smooth operation from zero potential to FSV with motorized (Automatic) operation.
Easy adjust locking of electrode gap (2.5mm Go-NoGo Gauge).
Fast precision breakdown detection.
Voltage Range : 60KV / 80KV / 100KV.
HV Chamber Interlock, Zero Start Interlock, Overload Trip for operator protection.
Semi-autometic Motorized control of output for easy operation.
2 kV / Sec Voltage Rise Rate.
Indications for Test ON Audio as well as Visual Indication.
Pushbuttons of Test ON / OFF and Motorized Switch for easy operation.
Digital Display Output (7 Segment LED Display).
Precise HV trip voltage measurement, voltage hold after trip.
Epoxy cast, long life HV transformer for reliable life long operation.
Compliance to IS 6792 & Other Standards
