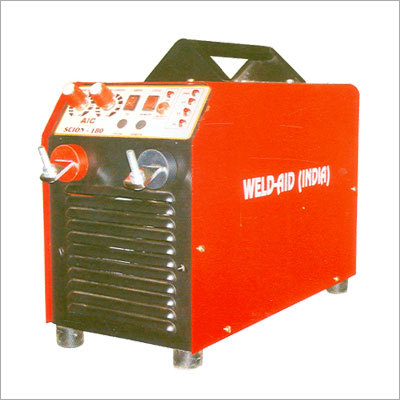

D.c. Stick-tig Welding Machine
Price:
Get Latest Price
In Stock
Product Specifications
| Input Supply | 195V-265V |
| Input Kva | 4.8 |
| Ocv-Dc | 75-85V |
| Current Range | 3-160 |
| Pulse Frequency | 1-10 |
| Class Protection | Ip23 |
| Weight(Kgs) | 13 |
| Features | Lightweight, Power Saving, Voltage Fluctuation, Reliable Ignition, Spatter Free |
| GSTIN | 0% |
Product Overview
Key Features
- Chemical plants equipment
- Dairy equipment
- Food processing machinery
- Pharmaceutical machinery
- Ornamental Mental Furniture
- Brewery Plats
- Kitchen & Hotel equipments
- Hospital Equipments
- Pipe line welding
- Structural Fabrication
- Pumps & Valves Industry
- Light weight & compact : 80% less weight compare too conventional machines.
- No Load Input 0.2 amps results in substantial savings in power cost.
- On load power consumption 50% Lesser than conventional machine.
- Designed to work under wide voltage fluctuations against over Voltage, Under Voltage, Single Phasing, Over Heating with indications.
- In-built selectable pulsing of 1 to 10Hz of output current, High OCV & controlled start current ensure reliable electrode ignition.
- Fast regulation speed & excellent dynamic properties ensures spatter free welding performance even with difficult electrodes.
- Reliable start even at 3 amps in Tig without any surge in welding current makes if suitable for thin sheet welding.
| Model | ARC 180 | ARC 220 | ARC 350 | ARC 400 | ARC 500 |
| Input | |||||
| Input Supply | 195V - 265 V | 350V - 456V | 350V - 456V | 350V - 456V | 350V - 456V |
| Phase / freg | 1/ 50 - 60 Hz | 3/ 50 - 60 HZ | 3/ 50 - 60 HZ | 3/ 50 - 60 HZ | 3/ 50 - 60 HZ |
| Max. Installed Power HP | 6 | 9 | 18 | 22 | 28 |
| Input KVA @ 60 % | 4.8 | 7.0 | 15.9 | 17.8 | 23.9 |
| @ 100 % | 3.7 | 5.4 | 9.2 | 13.7 | 15.9 |
| Output |
75 - 85 V |
75 - 85 V |
75 - 85 V |
75 - 85 V |
75 - 85 V |
| Current Rage AMPs | 3. 160 | 5 - 220 | 5 - 350 | 5 - 400 | 10 - 500 |
| Current @60 % AMPs | 160 | 220 | 350 | 400 | 500 |
| @ 100 % | 120 | 165 | 230 | 300 | 380 |
| Pulse Frequency Hz | - | 1 - 10 | 1 - 10 | 1 - 10 | 1 - 10 |
| Class of protection | IP 23 | IP 23 | IP 23 | IP 23 | IP 23 |
| Other | |||||
| Class Of Insulation | H | H | H | H | H |
| Cooling | Forced Air | Forced Air | Forced Air | Forced Air | Forced Air |
|
| 195 x 430 x 270 | 210 x 500 x 320 | 270 x 650 x 480 | 260 x 680 x 360 | 260 x 680 x 360 |
| Weight in Kgs | 13 | 19 | 38 | 43 | 43 |
| MODEL | ARC 180 HF/PLUSE | ARC 220 HF/PLUSE | ARC 300 HF/PLUSE | ARC 350 HF/PLUSE | ARC 400 HF/PLUSE | ARC 500 HF/PLUS |
| PRE FLOW | 1-10 SEC. | 1-10 SEC | 1-10 SEC | 1-10 SEC | 1-10 SEC | 1-10 SEC |
| POST FLOW | 1-10 SEC. | 1-10 SEC | 1-10 SEC | 1-10 SEC | 1-10 SEC | 1-10 SEC |
| UP SLOPE | 1-10 SEC. | 1-10 SEC | 1-10 SEC | 1-10 SEC | 1-10 SEC | 1-10 SEC |
| DOWN SLOP | 1-10 SEC. | 1-10 SEC | 1-10 SEC | 1-10 SEC | 1-10 SEC | 1-10 SEC |
| PULSE TIME | 10%-90% | 1-10 SEC | 1-10 SEC | 1-10 SEC | 1-10 SEC | 1-10 SEC |
| PULSE FREQUENCY | 1-10Hz | 1-10Hz | 1-10Hz | 1-10Hz | 1-10Hz | 1-10Hz |
| DIMENSIONS | ||||||
| WxLxH in MM | 195x430x49 | 220x550x600 | 260x680x700 | 270x670x800 | 340x700x800 | 420x540x850 |
| WEIGHT IN KGS | 21 | 26 | 42 | 40 | 43 | 70 |
