Welding Machine

What Is A Welding Machine?

A welding machine is a powerful piece of equipment that is used to join together two pieces of metal. This machine is responsible for holding the metal pieces in place while also melting them and applying pressure to join them together.

It is a necessary piece of equipment for any construction-related job that involves doing work with metal.

The temperatures that are applied by welding machines are significantly higher than those that are required for the purposes of cooking or burning, and this allows for the creation of welds that are extremely strong.

MIG welding machines and wire feeders are the two types of welding machines that are used most frequently today.

Different Types of Welding & Their Applications

1. Gas welding

Currently, gas welding is only used in exceptional cases because TIG welding has become so popular. Kits for gas welding are compact and lightweight, and their main components are oxygen and acetylene. They are still used on occasion to fuse together broken pieces of exhaust from automobiles.

The United States and the rest of the world are currently experiencing a significant lack of skilled welders. As a result of this scarcity, job opportunities are currently favourable for young individuals who are considering a career as a welding technician.

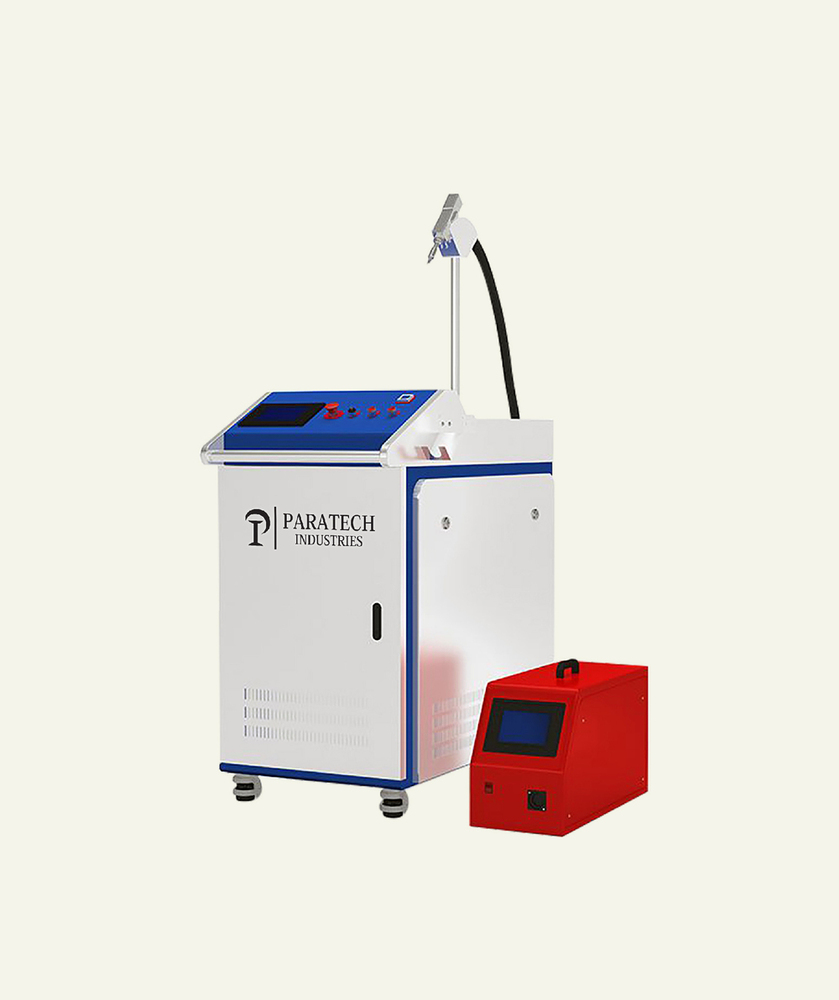

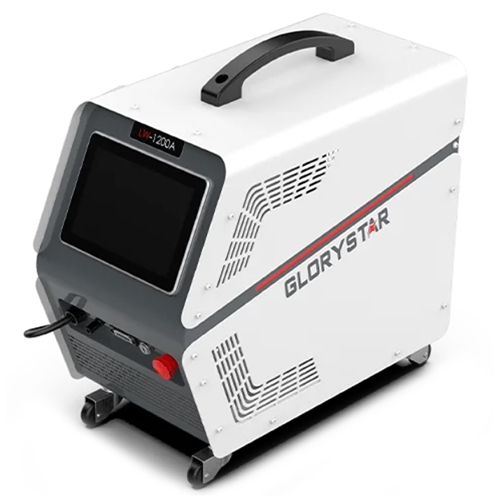

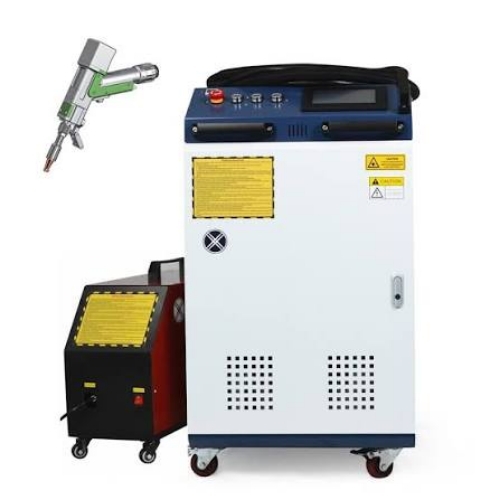

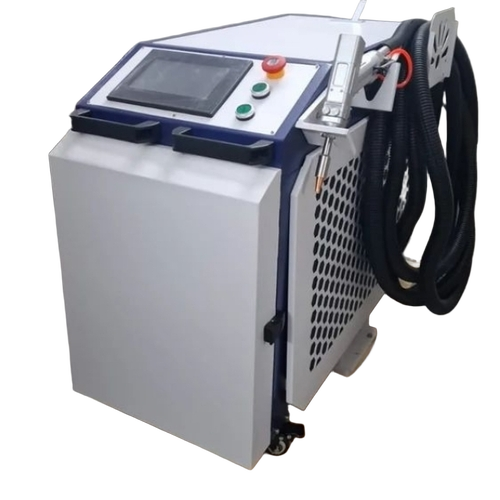

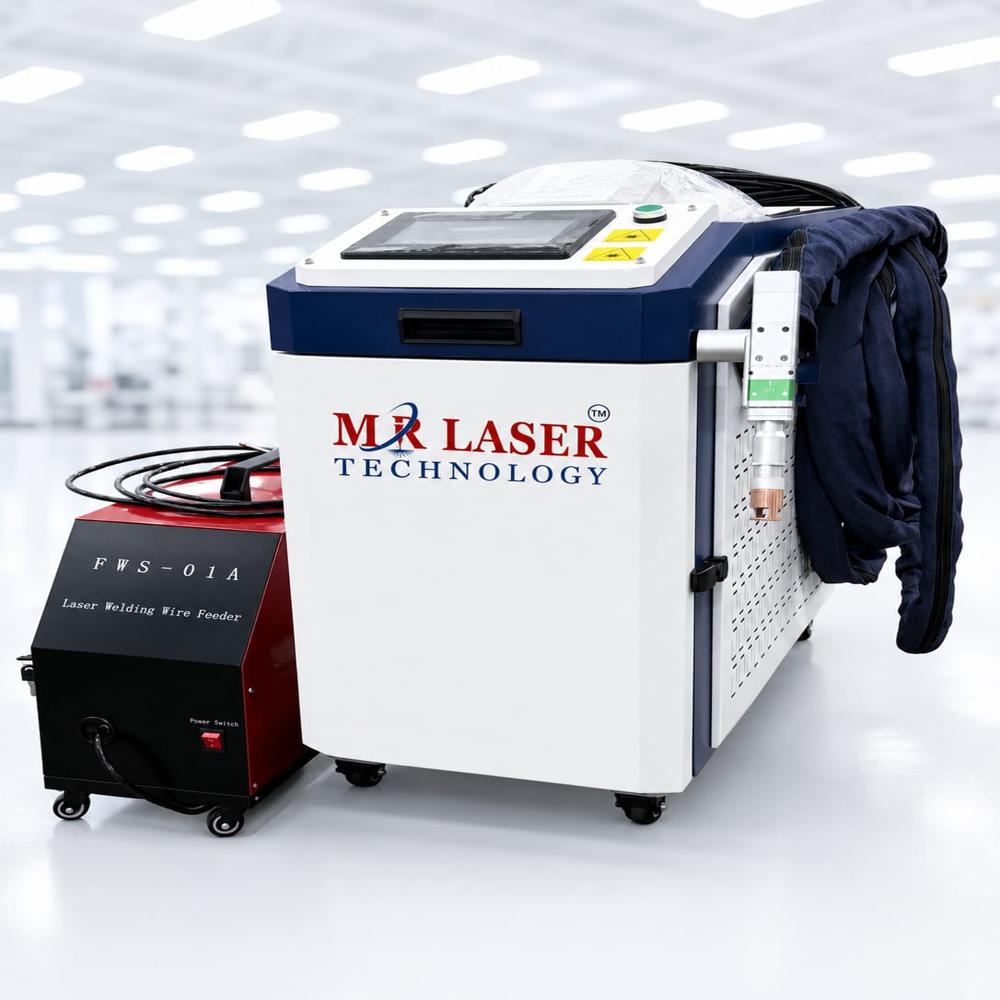

2. Electron beam and laser welding

Laser and electron beam welding are high-energy, high-precision welding methods. Lasers and electron beams can be targeted and focussed with the precision needed to weld tiny implantable medical devices, and they can also supply the massive quantities of power needed to join together massive sections of spacecraft.

 Laser and electron beam welding are both powerful, flexible, and easily automated methods of construction. For both metallurgical and visual purposes, both methods can produce stunning welds. In some cases, both approaches can be less expensive.

3. Plasma arc welding

Plasma arc welding is a precise method typically employed in aerospace applications with metal thicknesses of 0.006 inches or less. A good place to use this would be on an engine blade or an air seal.

The plasma gas is typically argon, while the shielding gas is typically argon + 2–5% hydrogen. The current rating of the nozzle decreases while using helium as plasma gas due to the gas's higher temperature.

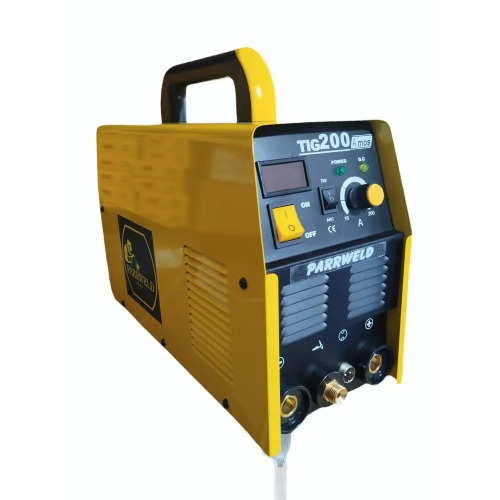

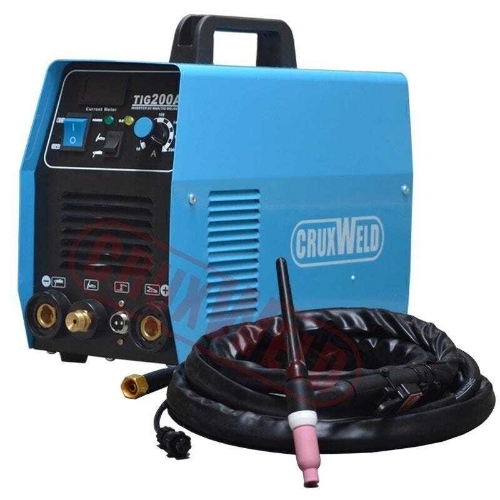

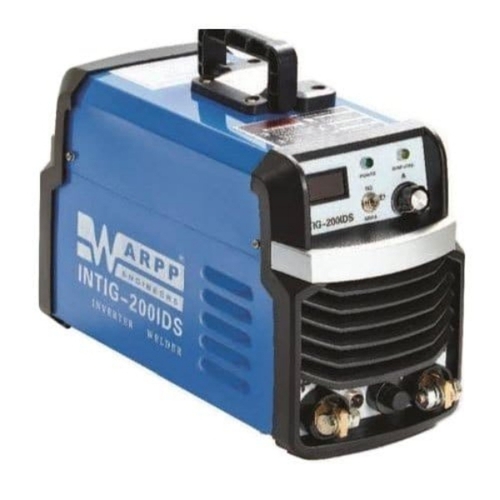

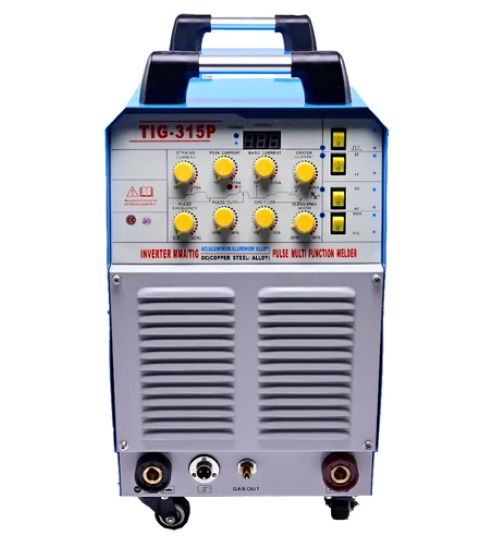

4. TIG welding

Lincoln Electric's TIG welders are highly trained professionals since, despite TIG welding's many applications, it is also one of the more complex welding methods to master.

When TIG Welding Machine, you'll need both hands. One hand holds a TIG flame while the other feeds the rod. Most common metals can be welded with this torch's generated heat and arc, including aluminium, titanium, nickel alloys, steel, cobalt, and copper alloys.

Metals as diverse as steel, nickel alloys, stainless steel, copper, chromoly, aluminium, magnesium, brass, bronze, and even gold can all be welded with a TIG welder. Bicycle frames, lawnmowers, door knobs, fenders, and many other metal objects can all benefit from TIG welding.

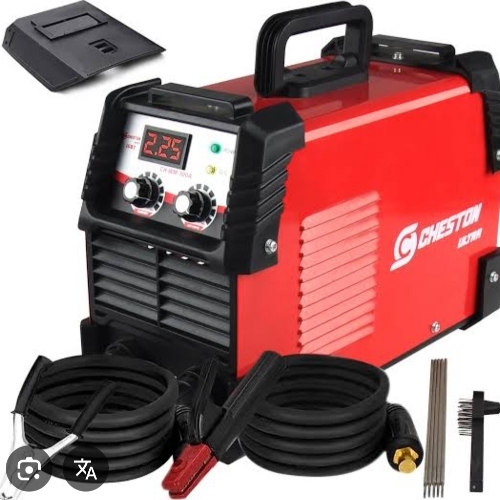

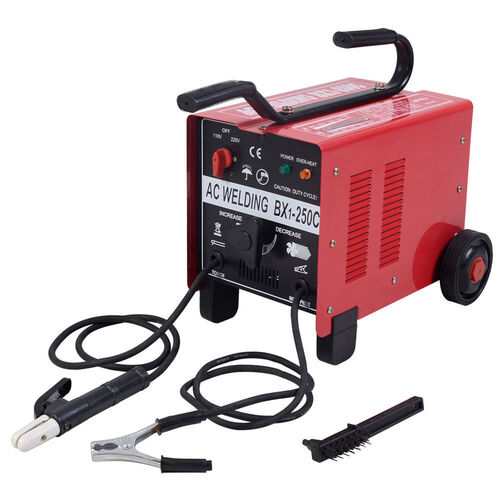

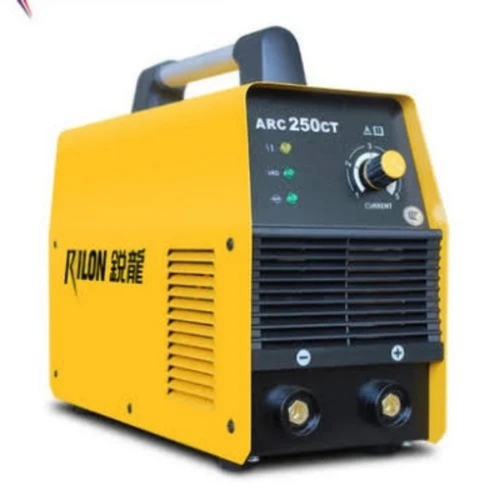

5. Stick welding

Stick welding, which is also known as arc welding, is a method that is considered to be more traditional. It takes more practice to become proficient at stick welding than it does with metal inert gas welding, but you can get the gear you need to try it at home for a reasonable investment. Stick welding is performed with a welding rod with an electrode attached to one end.

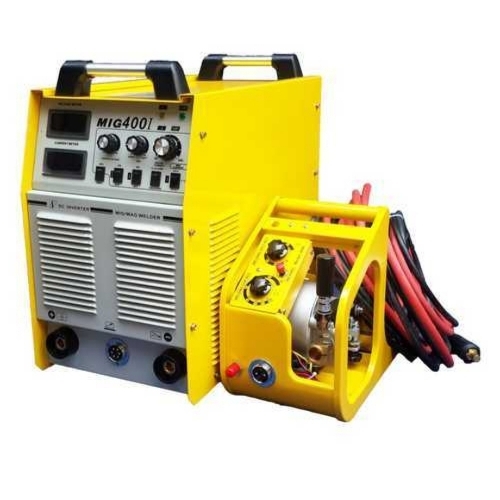

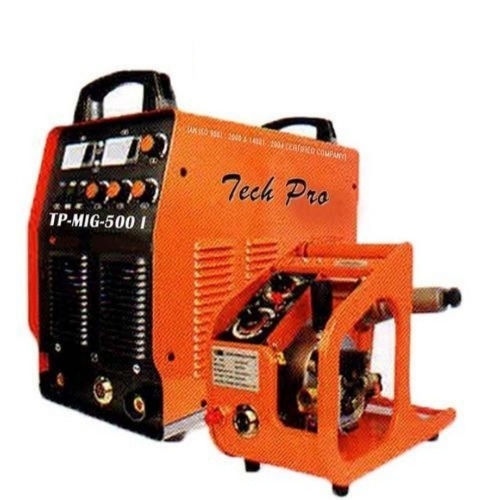

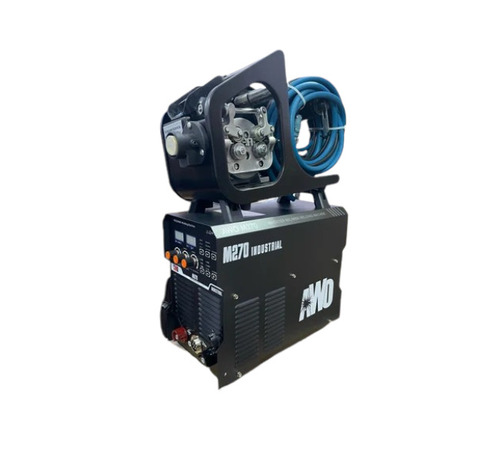

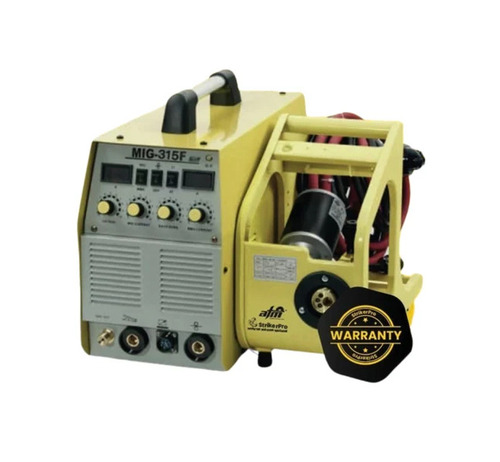

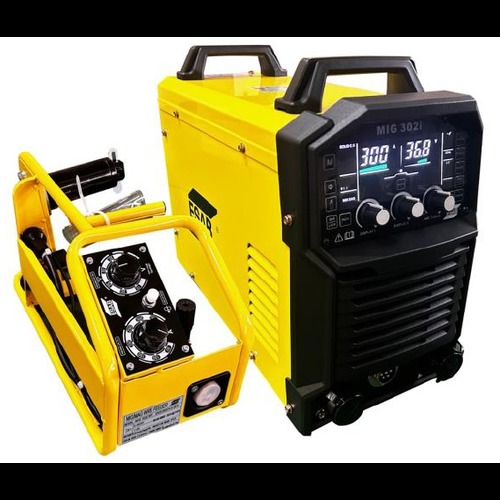

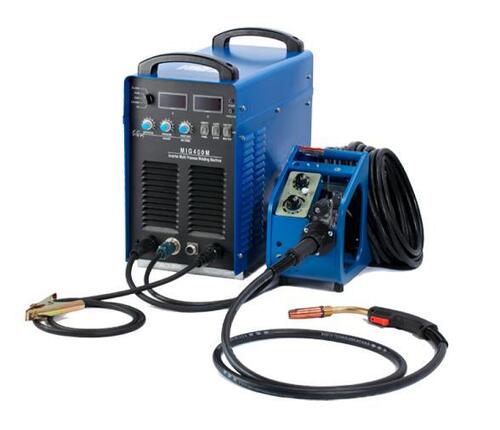

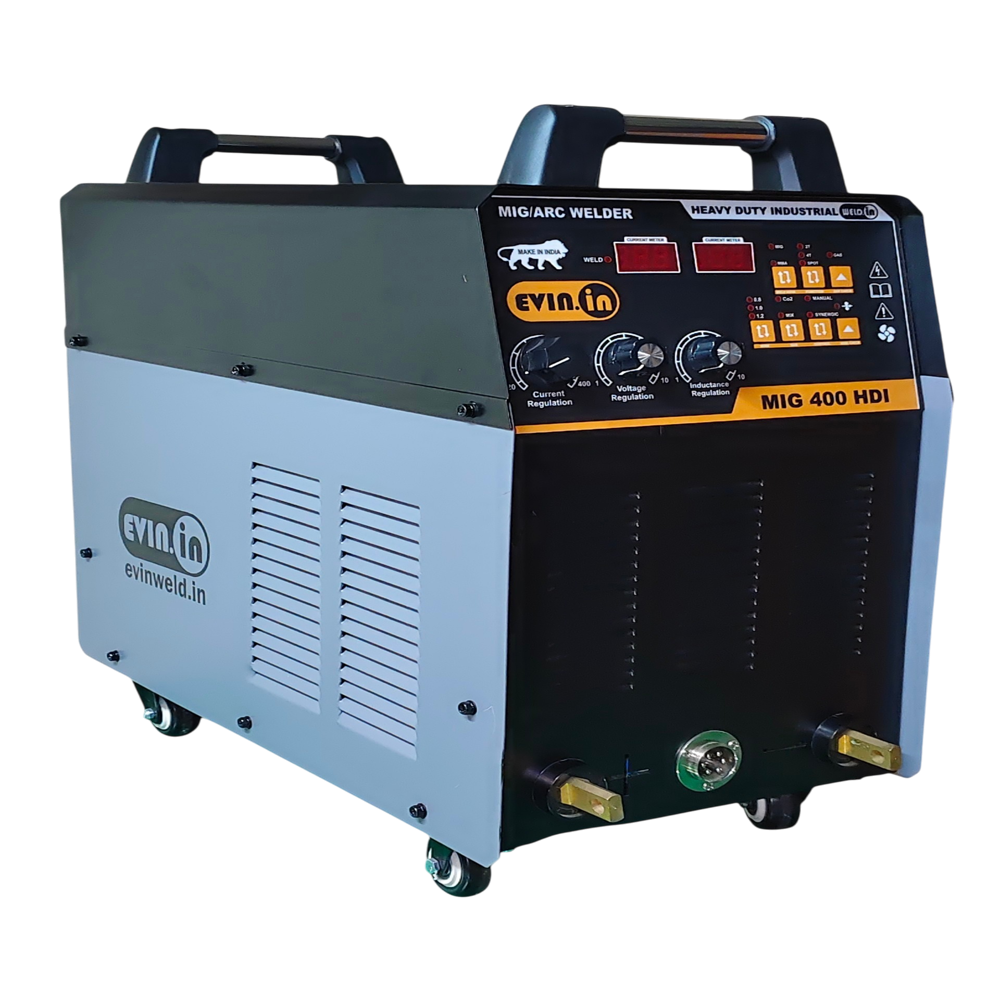

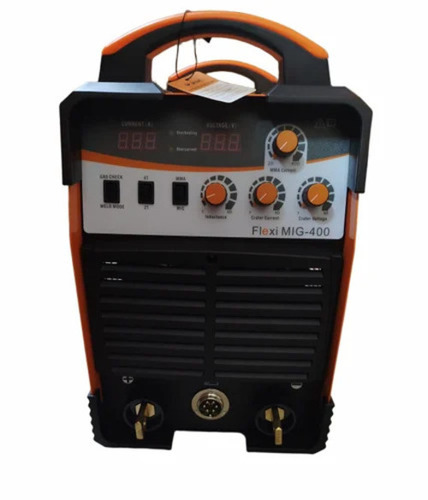

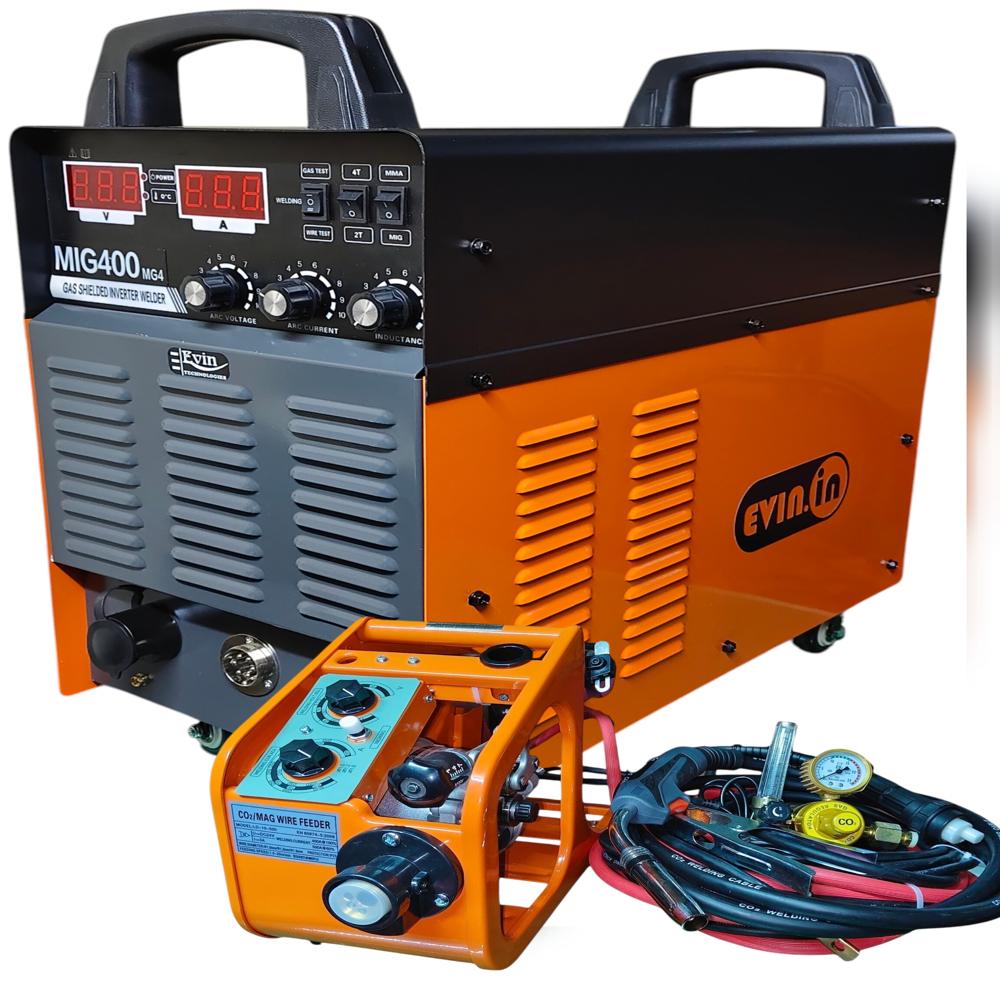

6. MIG welding

Learning MIG welding is a good option for those just starting out in the welding industry. Dual-process MIG welding is possible. Bare wire is utilised in the first, whereas a flux core is utilised in the second.

When welding thin metal components together, a bare wire MIG welder is a good option. Because it does not need a flow metre or gas supply, flux core MIG welding can be done in the open air. MIG welding is popular among do-it-yourselfers and hobbyists because the equipment and materials needed are less costly.

Working Principle And Characteristics of a Welding Machine

Working Principle

The welder itself is a unique type of transformer. When the voltage transformer is connected to the load, there is only a minor voltage drop, but when the welding machine is attached, the drop is much larger. Adjusting the magnetic flux inductance and the series inductance is mostly responsible for this. Even though the circuit is closed, the current is the same at every point.

After the molten alloy electrode core has connected to the welding object and cooled, the two pieces will be permanently joined. Since the voltage between the electrode it is higher at this point (60-70V) and since preheating makes the end of the electrode and the welded part easy to emit electrons, the air in the gap is penetrated to conduct electricity, and a brilliant spark is simultaneously generated when the electrode is lifted.

Characteristics of a welding machine.

 There are basically three types of Characteristics of a welding machine.

i. Drooping type

In a continuous current type welding equipment, the V-I curve dips. The electrode in a gas metal arc welder (GMAW Welder) is effectively in a short circuit when an arc is struck, necessitating an instantaneous current surge. A constant-current machine is constructed to reduce these spikes as much as possible.

When the terminal voltage of the welding machine drops as the welding current rises, we say that the welding machine is drooping. V-I Identities of Drooping is a technique utilized by welding machines that use a continuous current.

Dripping, sagging, or dipping power supply... Internal resistance value and inductance in the welding circuit produce a little decline in the output volt ampere characteristics, giving the curve a slightly downward or negative slope.

ii. Flat or constant voltage type

The semi-automatic MIG Welding Machine, along with other types of automatic welding machines, utilises characteristics of the flat or constant voltage type.

iii. Rising voltage type

Welding machines that are fully automatic typically utilise characteristics of a rising voltage kind.

The voltage in an open circuit will typically fall between between 70 and 80 volts.

 The system used to modify the welding current is often located in the AC part of the machine before the rectifiers. The theory of controlling current is based on altering inductance or resistance, and there are several ways to achieve this.

Tips To Easy Maintenance Of Your Welding Equipment

Gaining knowledge of how to easily and effectively maintain your welding equipment can result in a longer useful life for the tools as well as improved performance.

a. Keep liners clean

The steel neck in the liner will collect dirt during welding. An unsteady arc will form if there is a lot of dirt in the way of the wires being fed. This is why it's preferable to use clean liners

Compressed air makes it simple to dislodge dirt from the liner and blow it away. The arc can become unstable if the liner is unclean and the feed roller system is too tightly tightened. It has a negative impact on the welding process and also wears out the liner, which must be changed eventually.

b. Replace contact tips

It is possible for contact tips to catch fire, although they may be replaced quickly. Despite the fact that a contact tip is a cheap worn part, most works managers will instead opt to replace the torch altogether. It's true that swapping out the contact tip is a more convenient and inexpensive option.

c. Update machine software

There are several types of welding machines, and many of them run on software,. A simple strategy to preserve your welding machine and investment against the future is to keep the software up to date on a regular basis.

d. Let welder be in charge of machines

Welders can be trusted with the upkeep of their equipment if given the opportunity. Welders should be responsible for maintaining their welding equipment by replacing worn components such as contact tips, liners, and other wear parts as needed. The welder's extra effort won't cost much, but it will greatly increase the machine's longevity.

e. Improve ROI using the right type of cooling

Overheating the welding machine is a known problem with prolonged welding sequences at high amperages. That's why it's important to weigh the pros and downsides of both water-cooled and air-cooled welding machines before making a purchase.

The process of welding is critical to the success of a wide variety of businesses, including the automobile industry, the construction industry, the aviation sector, and many more. So many objects, including a great number of buildings, gates, and fences, as well as minor kitchen appliances and automobiles, would not exist without this sort of metal work.

FAQs: Welding Machine


Q. What are the parts of welding machine?
Ans. The parts of a wielding machine is  Welder safety gear, fume extractor, power source, electrode holder and cables, etc.

Q. What are jigs and fixtures in welding?
Ans. A jig controls and guides the cutting tool to work in a certain spot on a workpiece. Fixtures are used to hold and position a piece of work.


Q. Is MIG welding stronger than TIG?
Ans. Most of the time, joints made with TIG welding are stronger than those made with MIG welding.

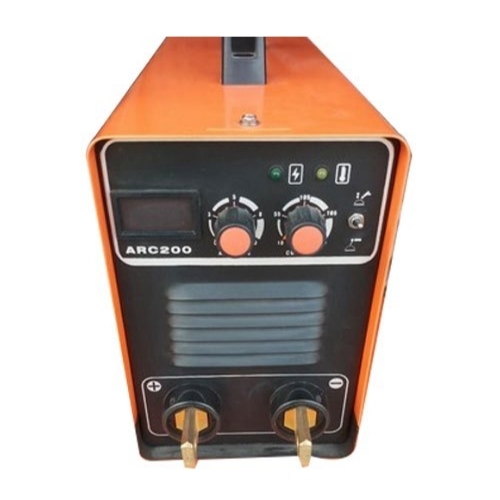

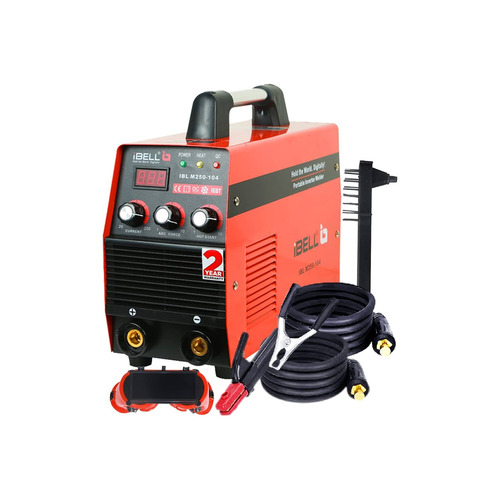

Q. What is arc welding machine?
Ans. A machine used to join metals together is called an arc welding machine.
