Coriollis Component Of Acceleration Apparatus - Stainless Steel, 300mm Length Rotating Arms, Variable Speed Pump, Rpm Indicator | Engineering Testing Equipment For Detailed Coriolis Analysis

Specification:

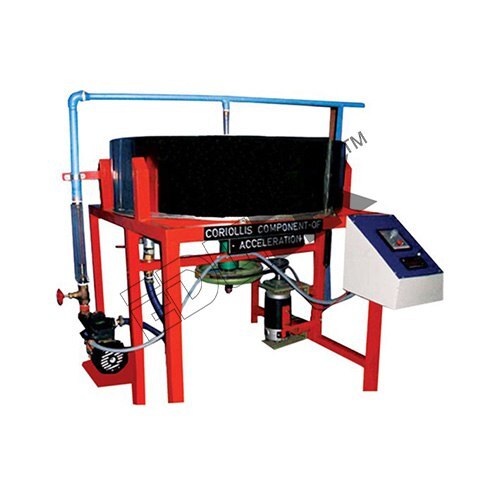

CORIOLLIS COMPONENT OF ACCELERATION APPARATUS
We are offering a wide range of Coriolis Component Acceleration.
This entire set up is designed to study various coriollis components of a slider crank mechanism.
In this process the continuous stream of water which is flowing through a steady rotating pair of tubes replaces mechanical slider system.
The tubes of the system can be easily rotated in various speeds with the usage of a swinging field motor which also serves a dynamometer. There is a Perspex window located on the top of the tank.
This window assures complete clear view of the process. It also prevents the splashing of water over the side of the tank.
The in-built dynamometer continuously measures the torque which is applied to the various rotating tubes. This entire equipment is self-contained.
The re-circulating of the water is assisted with a own speed control unit and water circulating pump which is separate.
Experimentation
To determine Coriolis Component of Acceleration at various speeds of rotation and water flow rates
Utilities Required
Electricity
0.5 kW, 220 V, Single Phase
Drain
Water Supply
Technical Details:
Swinging field type, variable speed
Pump, FHP
The whole set-up is well designed and arranged in a good quality painted structure
Fabricated out of stainless steel
Rotating arms
9mm/6mm orifice diameter, length 300 mm
Rotameter, Electric motor, Main tank
Control Panel comprises of:
Speed control unit
Standard make on/Off switch, mains indicator
RPM indicator with proximity sensor
RPM measurement
