Bod Incubator - Double Walled Stainless Steel 304 With 12 Cu.ft Capacity | 75mm Glass Wool Insulation, Pid Microprocessor Control, Cfc Free Cooling System, 12 Months Warranty

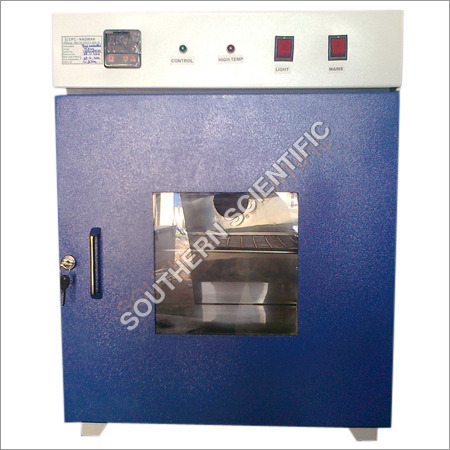

BOD Incubator (LOW TEMP.) 'U-TECH' MAKE :

Double walled, inner made of Stainless Steel 304 quality, outer made of thick best quality Mild Steel the surface of which is primer coated for anti rusting and is duly white stove powder coated paint . Insulation between inner and outer wall is done with 75mm thick glass wool to prevent any heat loss. Inner chamber is provided with 2/3 nos. perforated stainless steel shelves with ribs to adjust the shelves at desirable height.Provided with double door, inner made of thick transparent full view glass and outer door is double walled metallic properly insulated with glass wool and also provided with best quality handle, gasket, lock etc. Provided with door operated illumination lamp. Whole unit is mounted on castor wheels.Temp.Range is from 5A A C to 60A A C and is controlled by electronically controlled by PID Microprocessor Controller withPT-100 sensor. This controller is provided with time delay relay to control the accuracy in maintaining the temperature. Temp. is maintained with an accuracy of + 0.5A A A A A A A A C.Cooling is done with ISI Mark compressor of KIRLOSKAR make which is connected to thick copper coils placed in the rear of the chamber through condenser, fan motor, capacitor, relay etc. Whole cooling unit is placed below the main chamber in a GI housing. CFC Free, Environment friendly. Heating is done with ISI mark strip type heaters placed near the cooling coils. Air is circulated by 2-nos. ISI mark Silicon bind motors, which are connected to balanced blowers, which operates alternatively and continuously with heating and cooling. Provided with On/Off switch, Indicators, Digital Controllers etc.

Size inside chamber (W x D x H) Capacity Volume
455 mmx 410 mm x 610 mm 4.0 Cuft. 117 lts.
505 mm x 415 mm x 830 mm 6.1Cu.ft 171 lts.
570 mm x 550 mm x 875 mm 10 Cu.ft 280 lts.
650 mm x 580 mm x 900 mm 12 Cu.ft 336 lts.
700mm x 650 mm x 900 mm 15 Cu.ft 420 lts.
