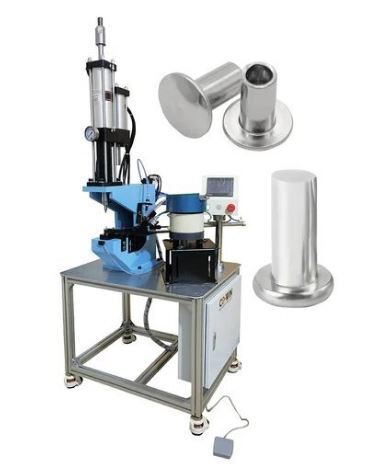

Auto Feeder Hollow Riveting Machine

We are well known Manufacturer & Supplier of Automatic Riveting Machine High-speed in Dongguan, Guangdong, China.

Function equipment can be used to all kinds of specifications of bulk rivet by vibration dist sorting and then transported to the plug-in head, by inserting head of automatic riveting accurate inserted into circuit board and open all kinds of flower shape make it out out with the adhesion strength function equipment.

Specification:
Overall dimension:2250*1300*1600mm
Weight:1000KG
Air: 6+/-0.5kg/cm2A A A A a air consumption: 656N/minA A A Aca A
Power:AC220V,single-phase50/60HZ,1.4KW
Noise:80dB
Operating enviroment5-40A AcAca A A a
Humidity:10-90%RH(it can be used as long as there are no crystal beads in the air)
Requirements for the surrounding environment:no corrossive gas
Movement dimension of the workbench:X680mm, Y370mm,Multi-direction X580mm,Y370mm Bilatery.
Movement speed of workbench:22.5m/min
Rotary table of the workbench
PCB electric circuit board:500*350Max
Plugging speed:200PCS/min
Installation time of electric circuit board:4s
Component inserted:1.6-3.5mm common rivets, long rivets and lace rivet
Q'ty of plugs:1-4plugs based on the requirements
Hole correction mode:by the angle system of the machine
Computer control system:Intel Corei3 CPU Windows operation system
Display system:17inch color LCD
Feeding system:vibrating large feeding system
