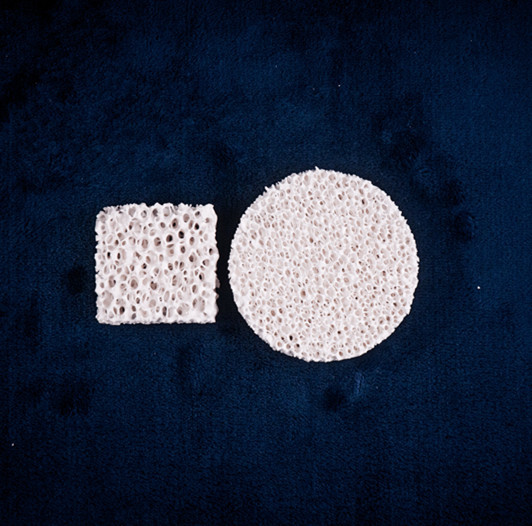

Alumina Foam Ceramic Filter Plate For Casting Diameter: 40-600 Millimeter (Mm)

5

5

filter for casting

filter for casting

Three years

Three years

10-60ppi

10-40ppi

2-45kg/s

2-45kg/s

11-50 Millimeter (mm)

11-50 Millimeter (mm)

Round ,square ,custom geometric shapes

Round ,square ,custom geometric shapes

15-6000 Grams (g)

16-6000 Grams (g)

40-600

(40-500)*i 40-500i *i 11-50i

40-600 Millimeter (mm)

40500 Millimeter (mm)

TIANJIN SHANGHANG ,CHINA

TIANJIN SHANGHANG ,CHINA

cartons and pallet

carton and pallet

Alumina Ceramic Foam Filter Plate Features a Superior dimensional tolerances a Stable chemical composition a Highest filtration efficiency a Excellent strength a Resistant to corrosion attack by molten aluminum and alloys a Beveled edges and compressible gasket Product description of alumina foam ceramic filter plate: Increase the uniformity of the internal structure of the metal; Improve mechanical properties; Eliminate metallurgical defects (gas deposition, pores, leakage); Improved surface quality; The machinability of the product is significantly improved, which reduces its processing cost; COMMON SIZES: 7x7x2" A A A (178x178x50mm) 9x9x2" A A A (229x229x50mm) 12x12x2" A (305x305x50mm) 15x15x2" A (381x381x50mm) 17x17x2" A (432x432x50mm) 20x20x2" A (508x508x50mm) 23x23x2" A (584x584x50mm) 26x26x2" A (584x584x50mm) *Other sizes can be customized upon request.

We can supply ceramic foam filters are as follows: 1.Silicon carbide ( SiC) is used as a distinctive element in the refractory mixture material to make foam filters. Gray in color, foam filter is a strong and durable foam filter, which can be used to purge and filter solution of ductile iron casting, grey iron and other iron casting. 2. Zirconia Ceramic Foam Filter is applied to purge and filter solution of steel high temperature metal such as steel alloy stainless steel etc.Typical application of zirconia ceramic foam filter is for in-mold, tundish, pouring cup or baffle-type filtration. 3. Alumina Ceramic Foam Filter is applied to purge and filter solution of aluminium and aluminium alloys. White in color alumina foam filter is made from high purity alumina (AI2O3). It has excellent ability to resist high thermal shock while maintaining efficient removal of impurities with continuous and thorough filtration. Advantage of Ceramic Foam Filters 1.Simplified and shorten gating system,increasing yield. 2.High strength without loose ceramic particles or powder 3.Remove tiny slag effectively and purify molten metal. 4.Three dimensional connected mesh structure and high porosity 5. Well-distributed molten metal and improve performance. 6. Quiet laminar flow of molten metal. 7.Smaller particles are captured on the filter cake created by the larger particles , finer particles are captured within the pores in the filter. Principle Of Using Filter: a c Set the filters as close as possible of the casting. a c Use simple gating system without dirt trap ( improve yield). a c The working area of filter should be 4a 6 times of the section of chocked flow in gating system to make sure that the pouring speed is not affected. a c Select the proper filters according to types of metal and pouring temperature. a c The higher porosity, the better filtration.

400000 Per Year

2000000 Per Year

Yes

Yes
