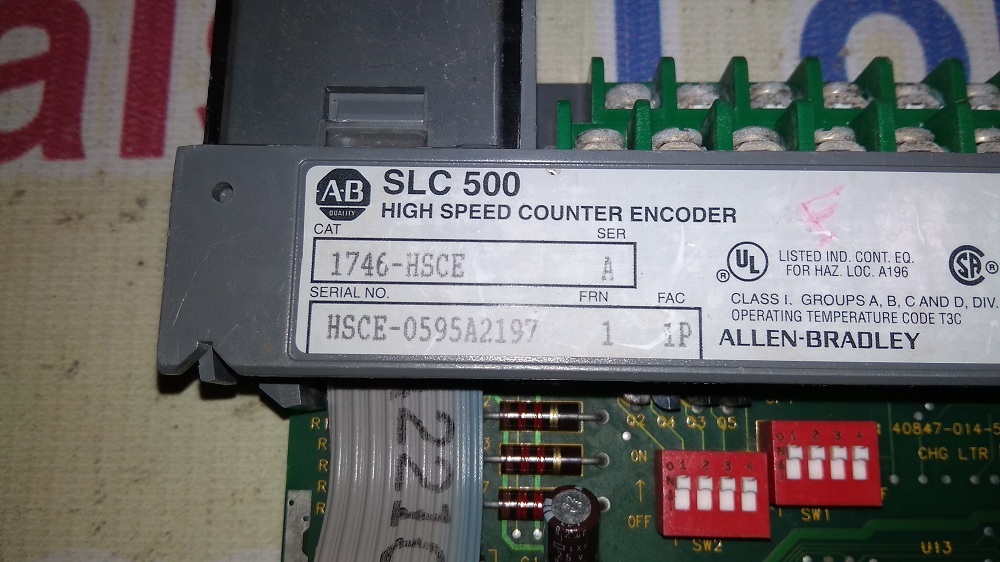

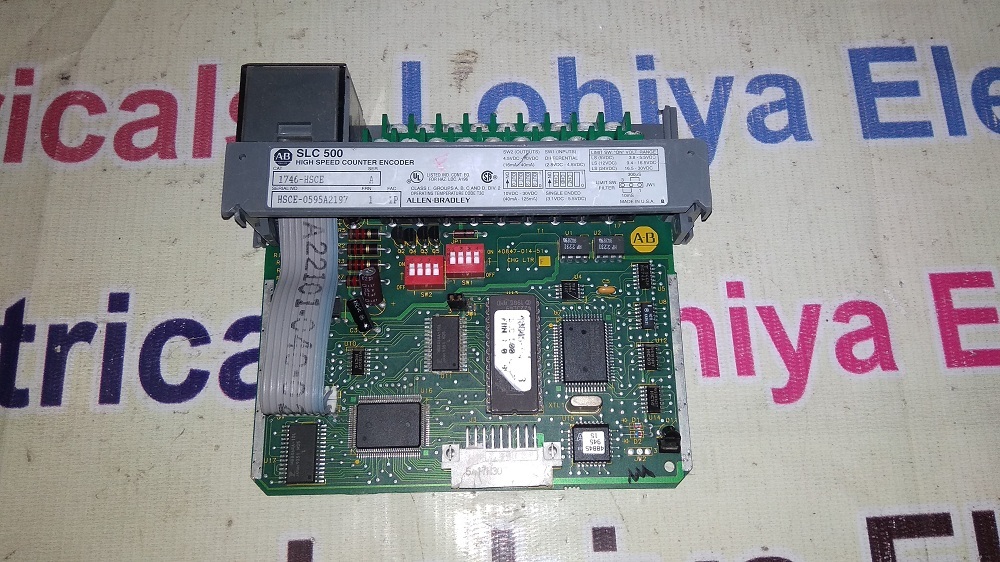

Allen Bradley Cpu 1746-hsce

Price:

Get Latest Price

Brand Name :

Allen Bradley

In Stock

Product Specifications

Current Rating	600mA
Cooling System	Passive (natural convection)
Features	Direct Connect to SLC 500 Series, High-speed pulse counting, Quadrature encoder support, 12/24V DC or differential inputs
Protection Class	Class I
Connectivity Type	Removable terminal block for signal wiring
Rated Operation Voltage	5 VDC
Way	4 channels (inputs)
Rated Current	600mA (backplane current draw)
Cabinet Material	Enclosure-quality industrial plastic
Operating Voltage	5 VDC (provided by PLC rack)
Base Material	Other, Plastic / Metal hybrid
Thickness	Standard SLC module thickness
Protection Level	Other, IP20
Rated Insulation Voltage	30V (between isolated groups)
Components	Pulse Counter IC, Input Terminals, Status LEDs
Panel Type	Module panel slot (for PLC rack)
Control System	Programmable Logic Controller (PLC)
Cover Material	Other, Plastic
Product Type	Other, High Speed Counter Module
Material	Other, Industrial-grade Plastic and Metal (Module Housing and Connectors)
Surface Finish	Other, Matte Finish
Standard	Allen Bradley SLC 500 Series
Surface Color	Other, Gray
Rated Voltage	5 VDC supplied from SLC chassis backplane
Frequency (MHz)	5 MHz per channel
Maximum Output Current	N/A (Signal module, not power output)
Dimension (LWH)	142 x 35 x 145 mm
Application	Position monitoring, control for servo/stepper motors
IP Rating	Other, IP20
Display Type	Other, LED Status Indicators
