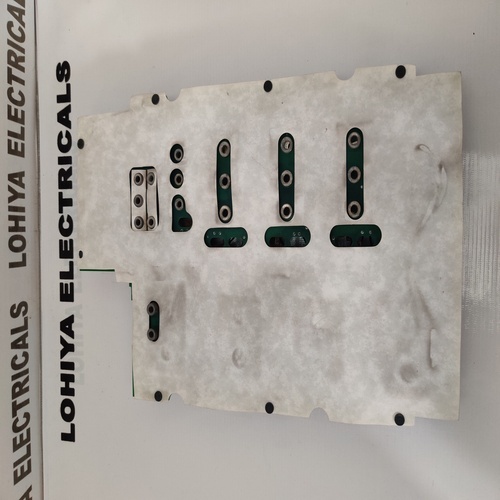

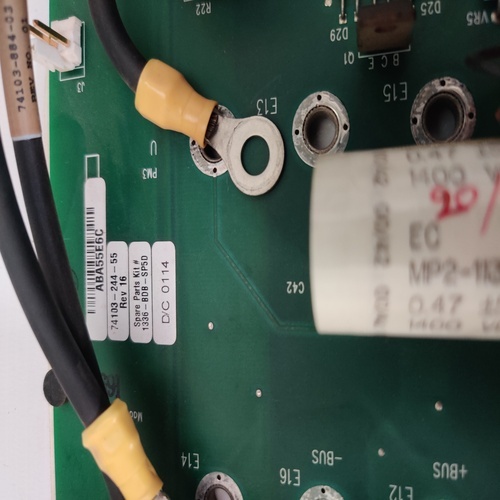

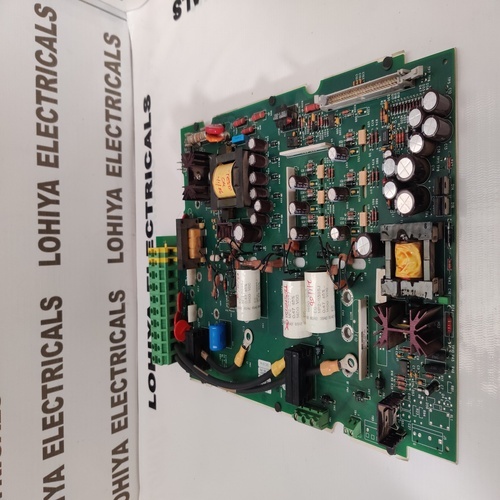

Electric Panel Allen Bradley 1336-bdb-sp5d Pcb Board
Price:
Get Latest Price
Minimum Order Quantity :
1
Brand Name :
Allen Bradley
In Stock
Product Specifications
| Operating Voltage | 600V DC max |
| Protection Class | Class I (intended for use within a protected device/enclosure) |
| Components | Surface-mounted and through-hole electronic components |
| Panel Type | PCB board for VFD (Variable Frequency Drive) |
| Cooling System | Passive (via drives main cooling system) |
| Cabinet Material | N/A (PCB board only) |
| Rated Insulation Voltage | >1kV |
| Base Material | Other, FR4 Epoxy Glass |
| Rated Current | Up to 15A |
| Thickness | 1.6mm |
| Way | Multi-layer PCB |
| Current Rating | Up to 15A |
| Protection Level | Other, PCB conforms to protection requirements in IP20 environment |
| Control System | Integrated with drive electronic system |
| Cover Material | Other, None (as per standard PCB configuration) |
| Rated Operation Voltage | 600V DC |
| Features | Direct replacement for original Allen Bradley part, RoHS compliant, high reliability |
| Connectivity Type | Edge connectors, pin headers |
| Product Type | Electric Panel |
| Material | Other, High-grade PCB with industrial-grade copper layers |
| Surface Finish | Other, Lead-free HASL (Hot Air Solder Leveling) |
| Standard | Complies with original OEM requirements for Allen Bradley 1336 drives |
| Surface Color | Green |
| Rated Voltage | 600V DC max |
| Frequency (MHz) | 50/60Hz compatible systems |
| Maximum Output Current | Varies by drive rating, typical: 5A-15A |
| Dimension (L*W*H) | Approx. 270mm x 140mm x 20mm |
| Application | Replacement board for Allen Bradley 1336 drive system |
| IP Rating | Other, IP20 (when installed in enclosure) |
Product Overview
Key Features
Company Details
We Are The Supplier of Old And Used Automation Materials Of Most of Automation Companies Like ABB, ALLEN BRADLEY, SIEMENS, PEPPERL + FUSCH, YASKAWA, YOKOGAWA, B&R, LENZE, INDRAMAT, REXROTH And Many More Companies.
Business Type
Supplier, Trading Company
Employee Count
12
Establishment
2009
Working Days
Monday To Saturday
GST NO
24AHSPL3513E1ZI
Payment Mode
Paypal
