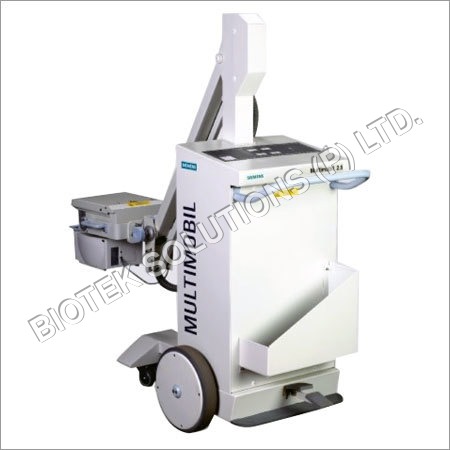

50kw Mobile Digital X-ray System

Price:

Get Latest Price

In Stock

Product Specifications

Material	Steel, Aluminium Alloy, Medical Grade Plastic
Condition	New
Technology	Other, Digital Radiography (DR, Wireless Flat Panel Integration)
Portable	Other, Yes, mobile with battery operation
Light Source	Other, LED Collimator Light
Pressure Range	Atmospheric
Operating Temperature	10AdegC to 40AdegC
Humidity %	a%0$? 85%
Sensors Specification	Flat Panel Detector, Digital; 17aEUR x 17aEUR Wireless, Scintillator: CsI or GOS, Pixel Pitch: 139 I1/4m
Indicator Specification	LED System Status Indicator, Ready/Exposure/Charging Indication
Ray Frequency Range	X-ray Frequency: 40~150 kHz
Exposure Time Range (in Sec)	0.001 - 4 sec
Focus	Small Focus: 0.6 mm; Large Focus: 1.2 mm
Image System	Digital Display with Wireless Flat Panel Detector, Immediate Image Preview
Usage	Medical Imaging, Emergency X-Ray, Orthopedics, ICU, Ward, Operation Theatre
Power Source	Other, AC Main (180-240V, 50/60Hz), Rechargeable Battery (for mobile use)
Power Consumption	a%0$? 8 kW (system); Maximum Output: 50 kW
Working Voltage	180-240V AC, 50/60Hz
Dimension (LWH)	1600 x 700 x 1300 mm (approx.)
Weight	Approx. 350 kg (with battery & detector)
