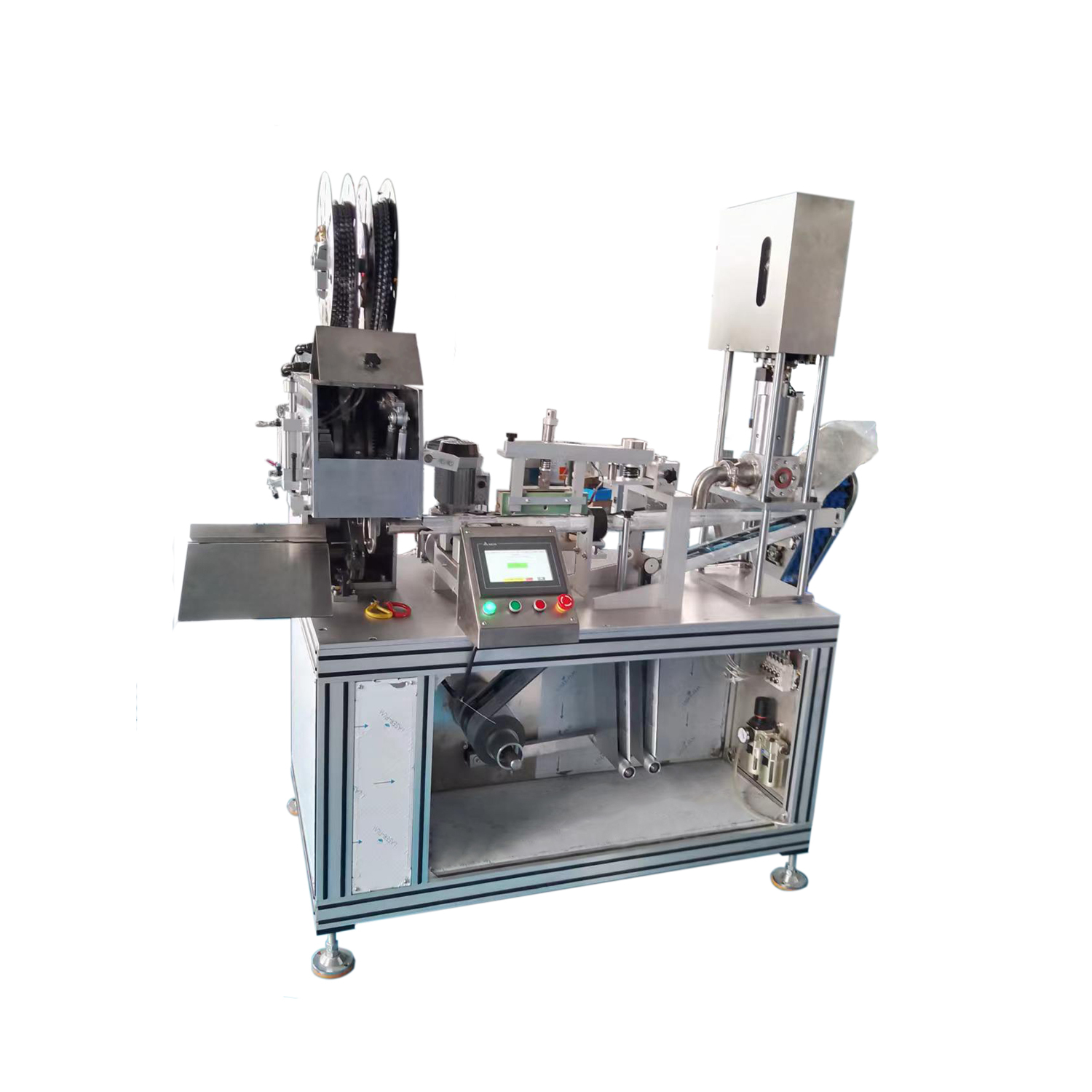

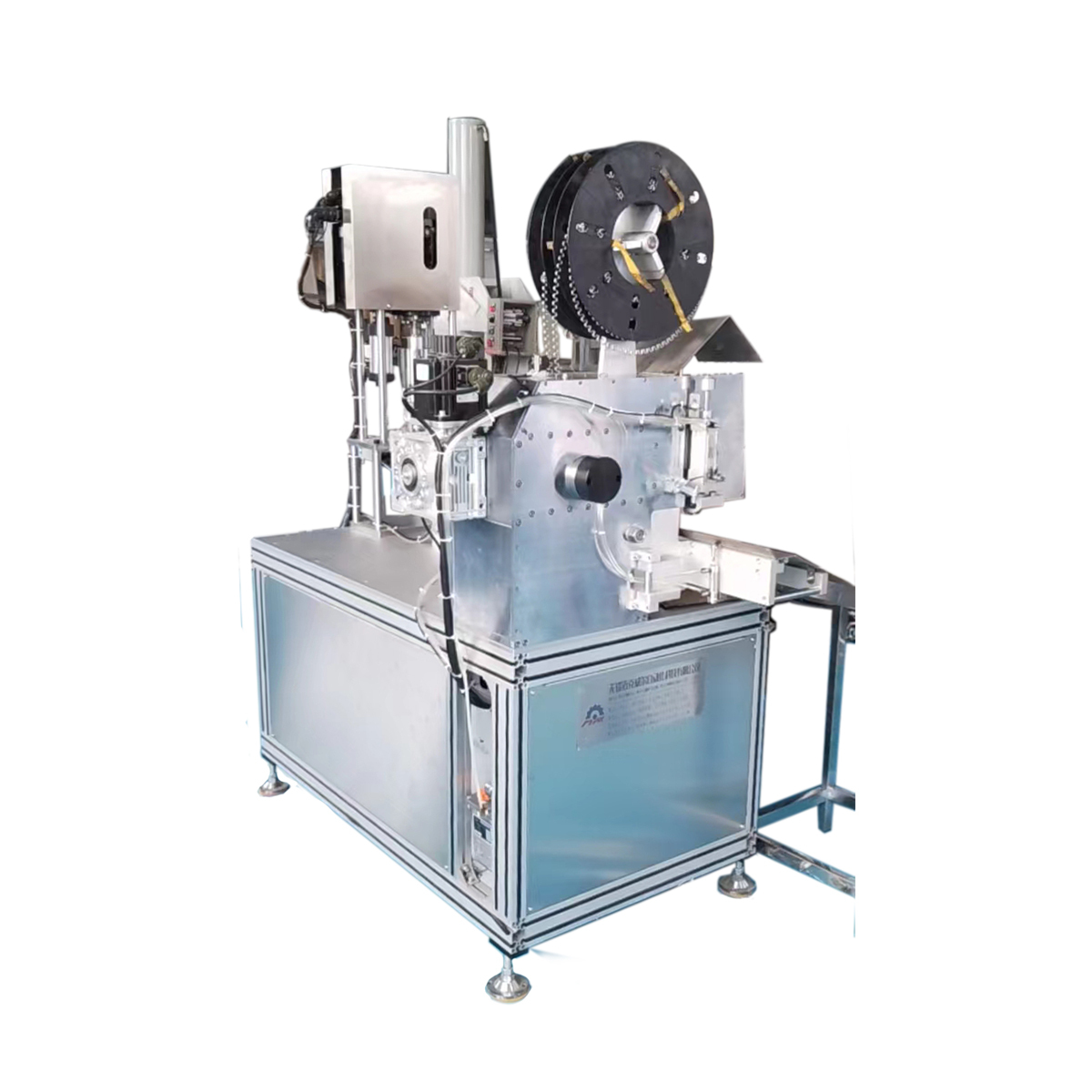

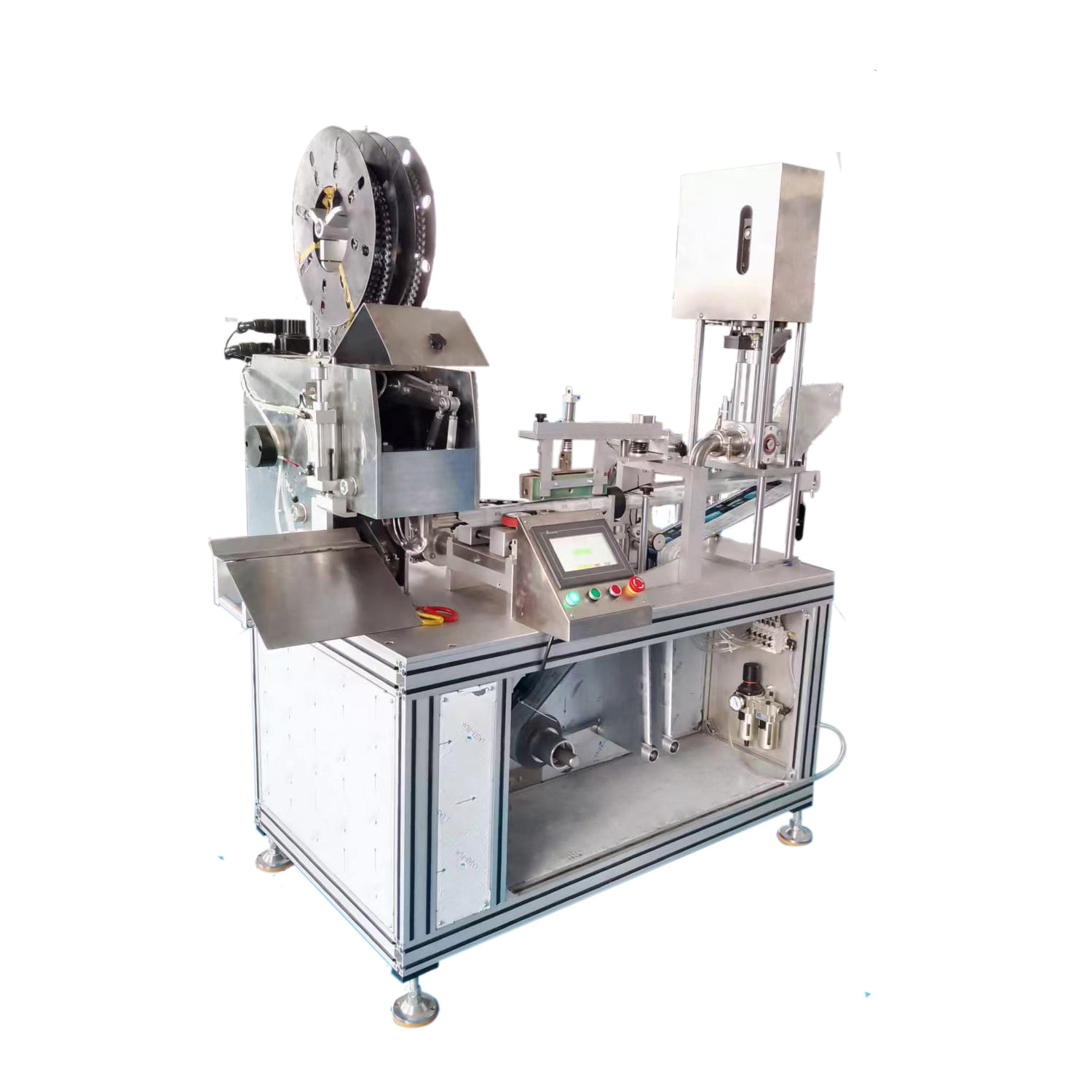

Automatic Soft Sausage Silicone Sealant Filling Machine Capacity: 25-35 Pcs/min

Type : MAX-RJ-1/MAX-RJ-1A
Power Supply: 380V/50HZ & 220V/50HZ Optional
Air Supply: 0.6-0.8MPa
Filling Volume:MAX 600ml Adjustable
Volume Precision:0.5%Max
Speed: 6001500pcs/hr
Tube Diameters: 44mm/46mmm/48mm Optional
Dimensions: 1950mm*1150mm*1950mm
Weight: 650kg

Introduction:

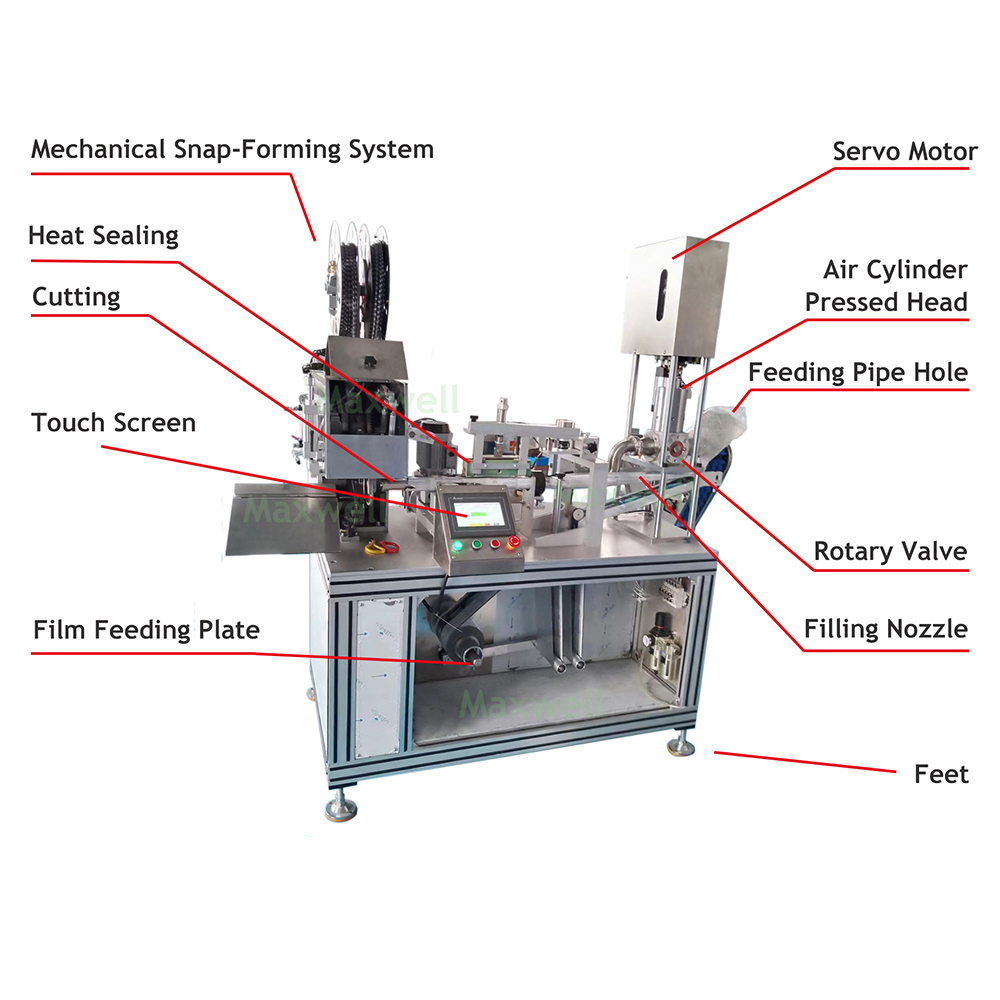

This full automatic sausage filling machine is widely used for filling silicone sealant, polyurethane sealant, MS sealant,adhesive and other paste materials. This filling machine is horizontal structure has features of moving easily, adopting advanced pneumatic and photoelectric monitoring as well as PLC intelligent control. This filling machine includes four closely linked processes of flexible package tube making, PLC precision controlled, double end sealing forming and automatic cutting. This filling machine has advantages of accurate filling weight, consistent batches, replacing previous segmented processes of tube making-filling-clipping, avoiding problems of cooperation between different working procedures. This filling machine keep product quality stable, improve production efficiency, with excellent filling and sealing performance, also save cost during production for sealant or adhesive manufacturers.


Function:
1. Suitable for silicone sealant, PU sealant, MS sealant and adhesive etc
2. Suitable for sausage film with width 152-164mm, thinkness 0.05-0.07mm.
3. Suitable for 15-8 great wall clip.
4. Filling speed is about 25-35pcs/minute.
5. Filling capacity can be set between 300ml to 600ml.
6. Free choices between manual operation and automatic operation
7. Automatic alarm display and machine stop at error.
