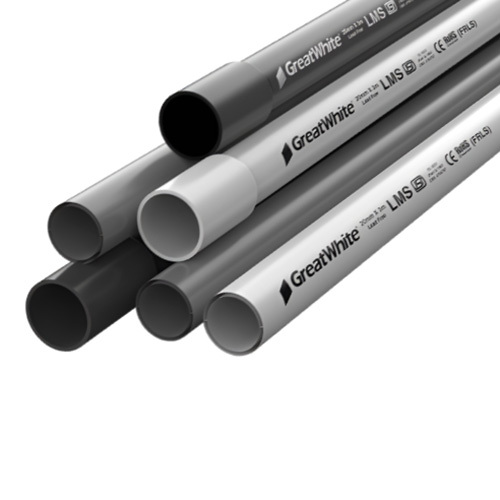

Pvc Electrical Pipe

What Is Electrical Pvc Pipe


Introduction

There is a plethora of resources available to learn more about the conduit system. Whether you're looking to upgrade your home or your utility, knowing how electricity is supplied is crucial. You might be wondering about PVC electrical pipe.

Using the correct and compliant material in a conduit system is a foundational practice unto itself; failure to do so can have disastrous consequences. Your electrical raceway system's conductors are vulnerable to harm if you use the incorrect conduit. Electrical shock, fire, and power outages are the worst-case scenarios of electrical failure.

Installation of wire arrangement is the bare minimum of house improvement. We will use PVC electrical pipe to encase the wires during system design for maximum protection. PVC electrical conduit is available in a variety of sizes to accommodate a wide range of wire thicknesses.


Types of Pvc Electrical Pipe

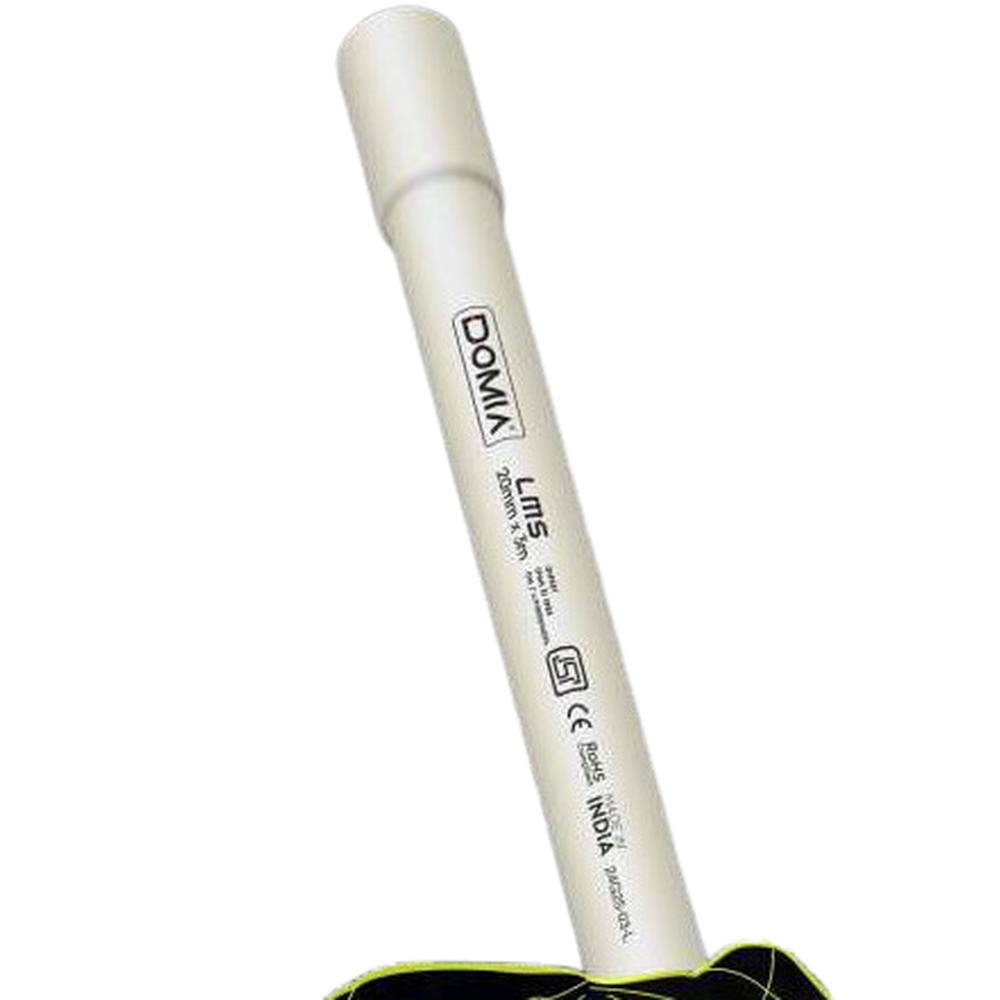

1. Rigid PVC PIpe

Similar to plastic plumbing pipe, rigid polyvinyl chloride (PVC) is placed using plastic fittings that are bonded into place.

If heated in a portable heater box, it can be shaped as desired. Direct burial in the earth is possible with PVC since the conduit tubing and fittings can be waterproof when cemented together.

It can even be used in extremely acidic conditions.


2. Flexible Metal Pipe- LFMC and FMC

Greenfield is another name for flexible metal conduit (FMC), which was named after its inventor. Because of its spiral design, it can easily bend and twist around obstacles.

Dry indoor environments are ideal for installing standard FMC, and short lengths are common between a wall box and a motor or stationary item like a garbage disposal.

To prevent water leakage, a plastic coating is applied to a special kind of flexible metal conduit called liquid-tight flexible metal conduit (LFMC), which is then used in conjunction with sealed fittings. It's a typical accessory for outdoor appliances like air conditioners.


3. Electrical Non-Metallic Tubing (ENT)

Corrugated plastic ENT is electrically nonmetallic, meaning it can withstand moisture and fire without catching on fire.

You can snap it together or glue it in place, and it bends easily. Since non-metallic tubing is less durable than EMT, it is typically put behind the wall. Concrete can be poured over ENT after it has been installed in a concrete block building, just as it can over normal wood or metal frame walls.

The blue tint of a popular kind of this tubing has earned ENT the humorous moniker "smurf tube," in reference to the popular animated cartoon series based on the same name.


4. Electrical Metallic Tubing (EMT)

EMT (electrical metal tubing) is a type of rigid electrical conduit that is often constructed of galvanized steel but can also be made of aluminum.

Since it is thinner and lighter than RMC, "thin-wall" conduit is another name for EMT. Although EMT is hard, it may be shaped with a conduit bender. Fasteners like setscrews and compression clamps are used to mount EMT fittings and provide a tight connection.

Unlike RMC and IMC, the tube itself is not threaded. EMT typically comes in sizes between 1/2 inch and 1 inch.

Throughout residential and light commercial development, it is utilized for exposed indoor wiring runs. Watertight connections are required for any exterior installation.


5. Rigid Metal Pipe  RMC and IMC

Rigid metal conduit (RMC) is a heavy-duty galvanized steel tubing system that uses threaded fittings for installation. Its primary function is as a weatherproof covering for outdoor electrical lines, panels, and other devices. RMC comes in lengths of 10 and 20 feet and may be threaded at both ends.

To the same end uses as rigid metal conduit (RMC), intermediate metal conduit (IMC) is thinner and lighter in weight.

In modern building, IMC has mostly replaced RMC due to its lower weight and greater workability.


6. PVC Utility Duct

Made for graves and burial vaults. Its intended function is below ground, thus you shouldn't install it in any structural elements. Select an item from the online catalog that compares and contrasts DB or EB PVC Utility Duct to learn more about it.


7. Schedule 80 PVC Pipe

Schedule 80 pvc electrical pipe should replace Schedule 40 PVC Pipe in all situations where the electrical pipe could be damaged by mechanical stress. As a result, Schedule 80 PVC Pipe is the preferred choice.


8. Schedule 40 Pipe

Standardized Polyvinyl Chloride Pipe, Schedule 40 According to NEC 352, floors, ceilings and electrical wiring in walls must be run through conduit electrical pipe. It can be utilized in regions that receive direct sunshine, be encased in concrete, and be buried directly in the ground, all in accordance with NEC 352.


Advantages of Pvc Electrical Pipe


1. Durable

In the past, electrical pipes would rust and weaken during the rainy season, but now that PVC can halt the flow of water, PVC-coated flexible conduit is used instead of metal conduit, and the system lasts much longer without frequent maintenance.

2. Fireproof

A PVC coating on the outside of a flexible conduit prevents it from catching fire and sustaining internal damage, which can be difficult to detect. These pipes are fireproof since PVC is a good fireproof material.

3. Stability

As we've already established, the PVC coating on the pipe makes it more resistant to water, oil, alkali, and acid, making the steel within more robust and able to withstand wear and tear for longer than it would in a standard cable conduit.

4. Convenient

Comparing plastic and metal cable conduit reveals that the former provides superior smoothness on both the pipe's exterior and interior. This makes it simpler for people to install the wiring and cords, and it's also easier to relocate the components should they need to be replaced.

5. Better Appearance

The PVC-coated flexible conduit is more reliable at its job, but its smooth exterior makes it less appealing to the eye than the flexible cable conduit. By raising the PVC thickness during manufacturing, the final product can be made to look sleeker and more appealing.


Which Pvc Pipe Is Best for Electrical Wiring


1. Nippon America LM-BK-14 Conduit

Unfortunately, the conduits I had on hand were either too large or would have melted under the heat. I was fortunate enough to locate some Nippon America.125" Wire Conduit. As an added bonus, this conduit may shield car wiring from environmental hazards like salt and ultraviolet light, as well as punctures and dampness.

Features:

• - The polyethylene used is of the highest quality.
• - Simple to set up because of its portability and adaptability
• - Gives great defense against constant vibration and abrasion
• - Capable of withstanding exposure to water, salt, air, and sunlight
• - Will hold up under the wear and tear of daily driving in any weather and season

2. Sealproof 8431KIT Conduit Kit

As compared to the metallic conduits I was previously using, this one is about half as heavy, which is one of the main reasons I like it so much. Because of its smooth interior surface, I can easily run new wiring through it if necessary.

Features:

• - Compared to metal pipes, these are 50% less in weight.
• - No rough spots or burrs on the inside.
• - Protection from corrosion; impervious to oil and acid
• - It's pliable and simple to alter the length to suit your needs.
• - Cut down on setup time.

3. Electriduct WL-BK-200-25 Conduit

I used this Electriduct conduit to run wires for electrical equipment in an indoor playground for kids, and it worked wonderfully. The park was located in a vacant space above a shopping center. Because play parks thrive on drawing in new consumers, this is a bit of an aesthetic challenge.

Features:

• - With eleven distinct hues to pick from
• - Using high-grade polyethylene
• - Gives the cables in your home exceptional safety
• - Because of its split design, assembly is a breeze.
• - Safe for use in temperatures as high as 200 degrees Fahrenheit
