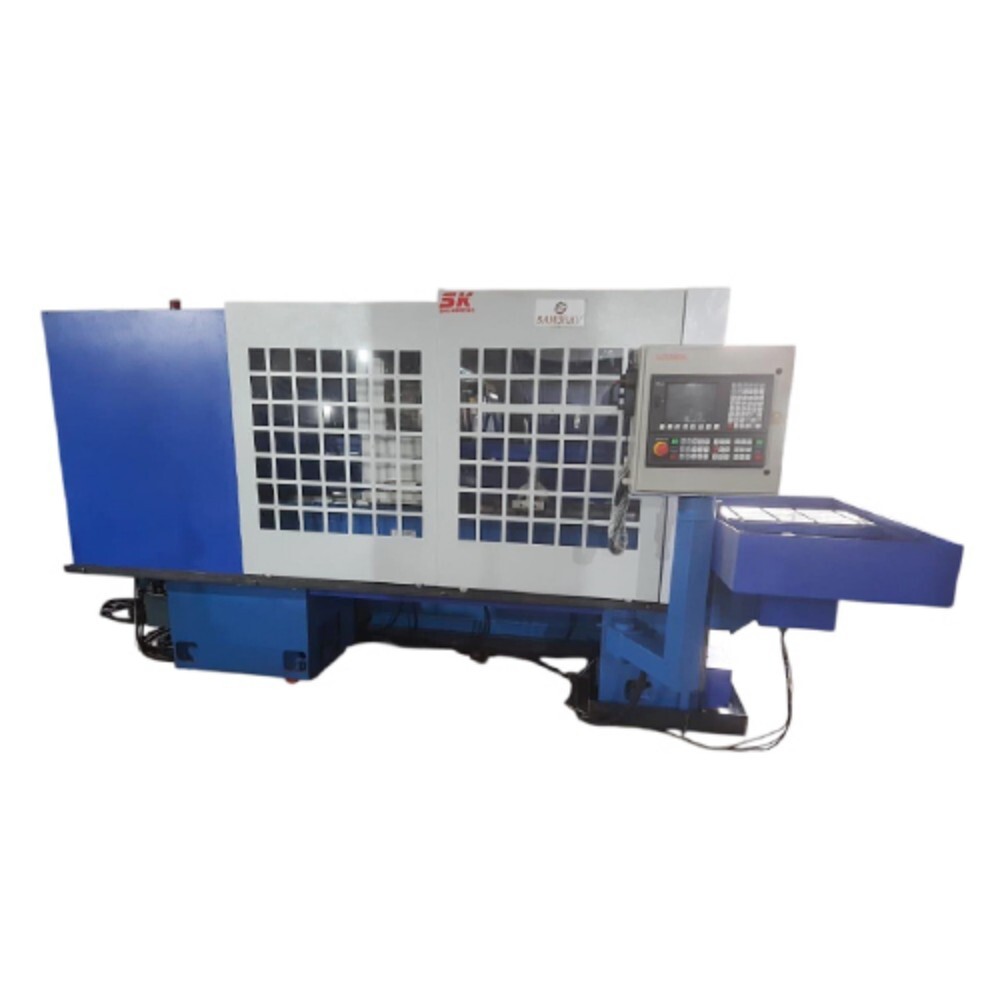

Zk2120cx2/1000 Dual-axis Gun Drilling Machine

We are engaged in manufacturing, exporting and supplying excellent quality ZK2120CX2/1000 Dual-Axis Gun Drilling Machine to our valuable clients in Xian, Shaanxi, China.
Processing Method: outside chip removing; gun drill
Hole Diameter(mm): I 5~I 20
Hole Depth(mm): 1000
Bench Traverse Distance(mm): 200
NC System: GSK980TDC / FANUC OI Mate TC
Drill Pipe: high speed mechanical spindle; frequency control; simultaneously rotating and feeding
Workpiece: fixed, non-rotation
Guide Sleeve: Hydraulically drive;
a Va shape steel tolling, semi-circle sleeve overhead, hydraulic pressure plate presses and top of tail press workpiece against guide sleeve.
Parameter:
Processing Ability:
1. Number of Spindle(pcs): 2
2. Centre Distance between Axis(mm): 350
3. Bench Area(m2): 1600X600
4. Hole Diameter(mm): I 5~I 20
5. Hole Depth(mm): a 1000
6. Max Workpiece Diameter (mm): a I 200
7. Length Range of Workpiece(mm): a 1000
8. Bench Traverse Distance(mm): 200

Processing Accuracy:
1. Hole Skewness: a 1/1000 (draw ratioa 100)
2. Dimensional Accuracy of Drill Pipe: IT7~IT11
3. Hole Rugosity: Ra0.8~Ra3.2

Hydraulic System
1. Max Volume of Flow(L/min): 100
2. Max Pressure(Mp): 12
3. Filtering Accuracy(um): 20
4. Oil Storage Capacity(L): a Y1000

Basic Dimension & Weight
1. Dimension (mm): 5100*2700*1800(L*W*H)
2. Height between Drill Pipe Centre and Ground(mm): 1070
3. Height between Drill Pipe Centre and Bench(mm): 242.0
