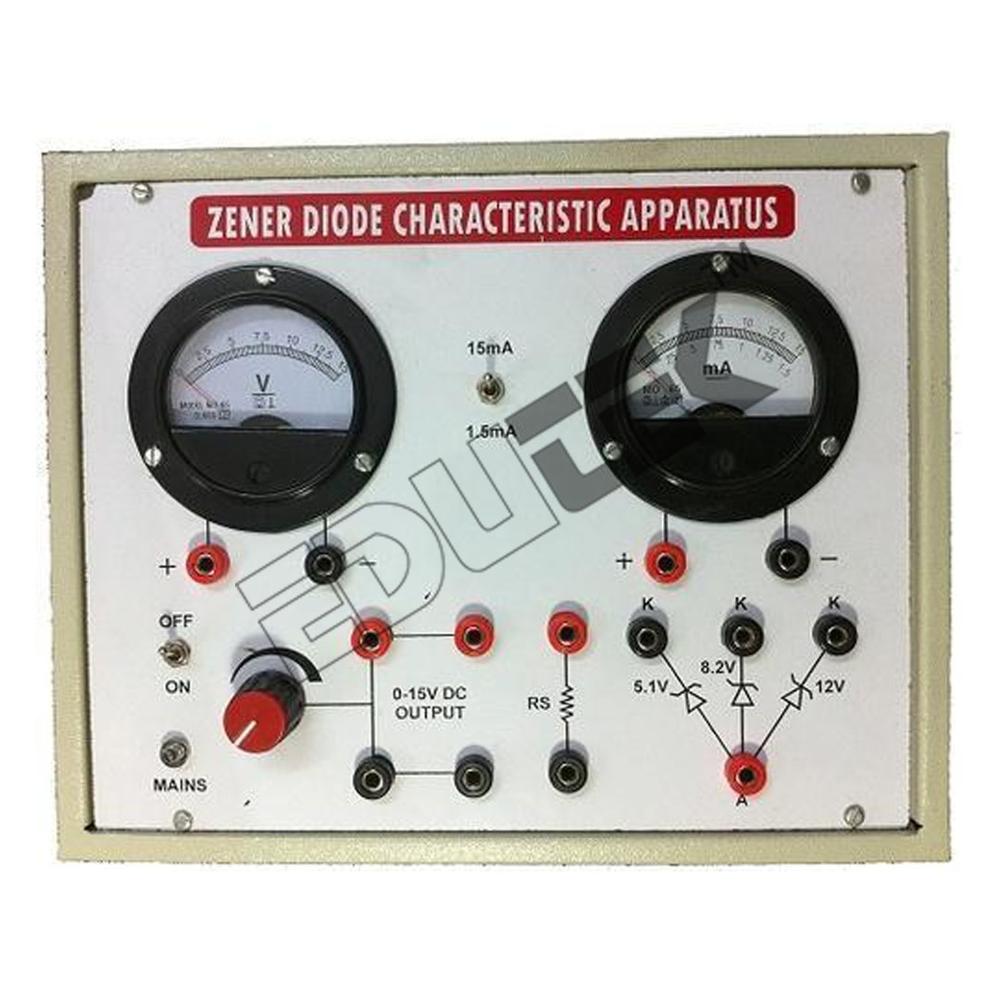

Zener Diode Characteristics Apparatus - Heavy Duty Metal Enclosure, 0-15 Volts Dc / 150 Ma Power Supply, Two Volt Meters For Current And Voltage Measurement, Multiple Zener Diodes With 4mm Socket Connections, Illustrated Instruction Manual Included
Price: 50.0 INR / Piece
Get Latest Price
Minimum Order Quantity :
1 Piece
Brand Name :
Edutek
In Stock
Product Specifications
| Interface | 4 mm binding post terminals |
| Response Time | Analog, immediate |
| Operating Temperature | 0AdegC to 50AdegC |
| Resolution | Analog meters with typically 0.1V/1mA scale |
| Components | Fixed resistor, Zener diode, potentiometer, binding terminals, panel meter |
| Output | Measurement terminals for voltage and current |
| Input | Test voltage adjustable up to 10V |
| IP Rating | Not rated |
| Features | Self-contained, easy connections, inbuilt Zener diode and meters |
| Usage | Engineering Electronic Instruments |
| Display Type | Other, Analog panel meter (voltmeter and ammeter) |
| Product Type | Zener Diode Characteristics Apparatus |
| Application | Engineering Electronic Instruments |
| Power Source | AC Mains supply |
| Power Supply | 230V AC, 50Hz |
| Rated Voltage | 5V to 24V (as per Zener diode selection) |
| Supply Voltage | 230V AC |
| Size | Medium desktop size |
| Dimension (L*W*H) | 300 mm x 220 mm x 60 mm |
| Function | To study and plot the V-I characteristics of a Zener diode in forward and reverse bias |
| Color | Light Grey/Blue |
| Weight | Approx. 2 kg |
| Current Rating | Up to 20 mA (depending on Zener diode used) |
| Capacity | Single circuit operation |
| Thickness | Approx. 60 mm |
| Frequency | 50Hz |
| Payment Terms | Telegraphic Transfer (T/T), Cheque, Letter of Credit (L/C), Cash Advance (CA), Cash on Delivery (COD) |
| Packaging Details | Carton Box, Export Quality also Available |
| Main Domestic Market | All India |
| Certifications | ISO 9001, 14001, CE |
Product Overview
Key Features
The instrument comprises of the following:
Two moving coil MO-65-volt meters mounted on the front panel for measuring current and voltage. The connection for each meter is brought out at 4mm sockets
One DC regulated continuously variable power supply 0-15 Volts DC / 150 mA.
