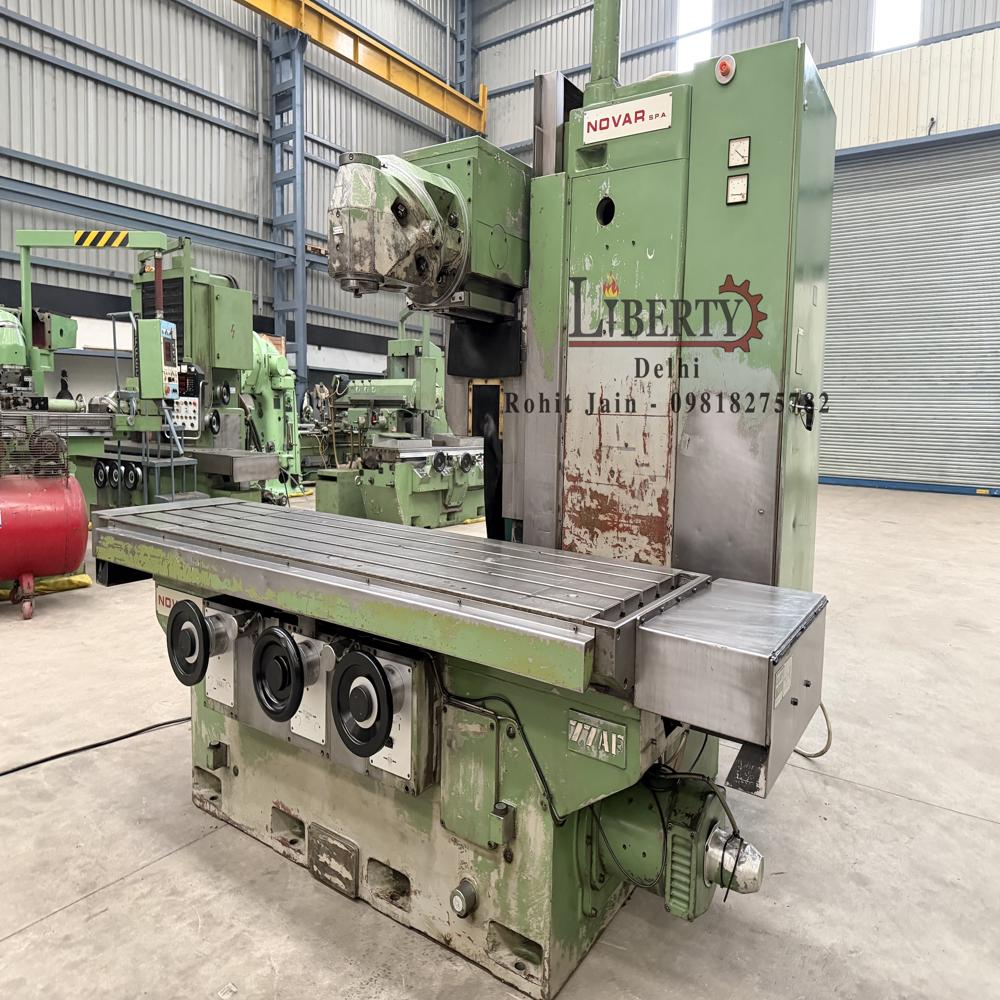

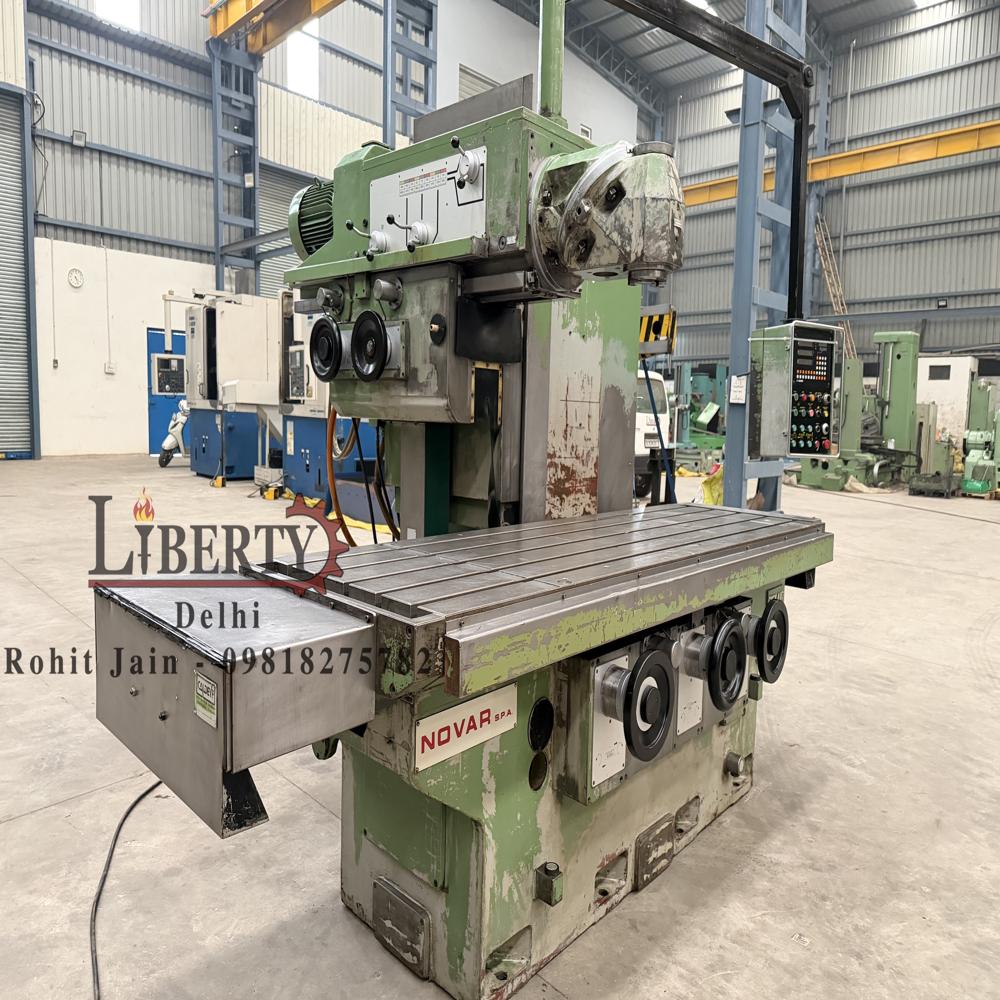

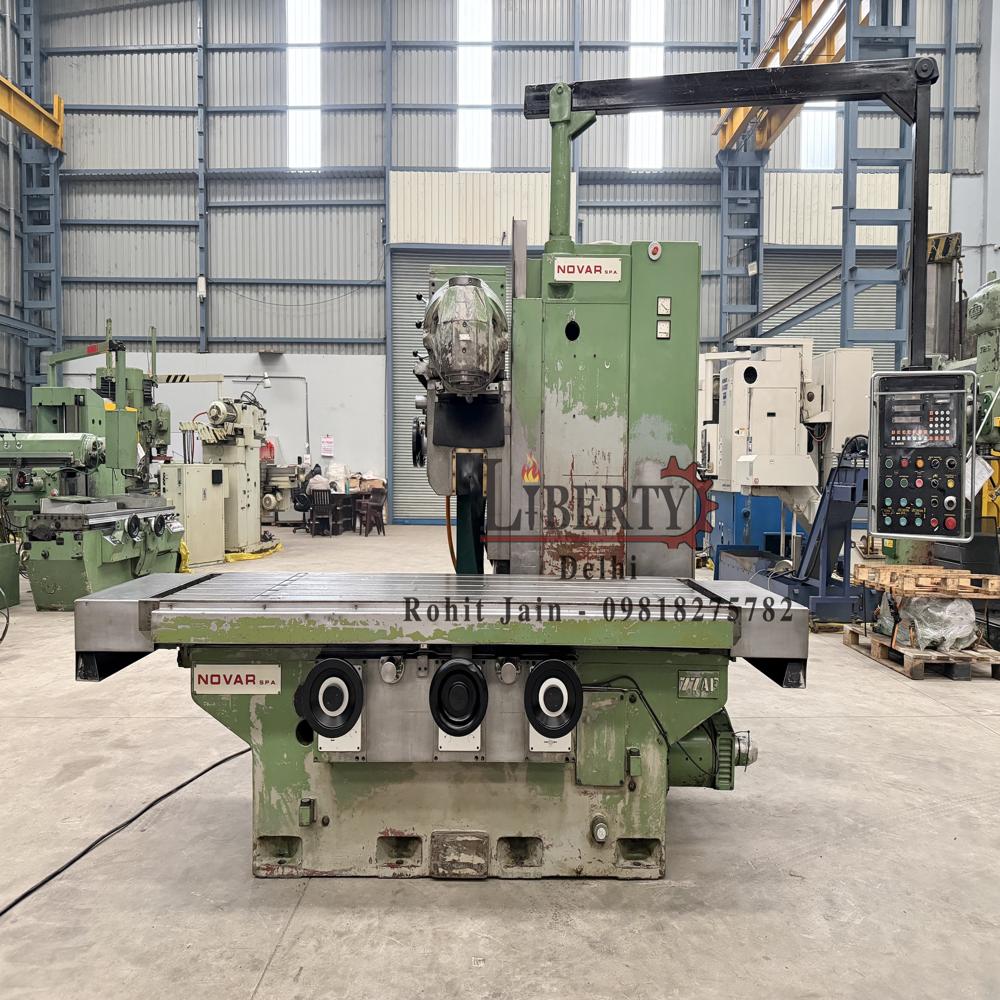

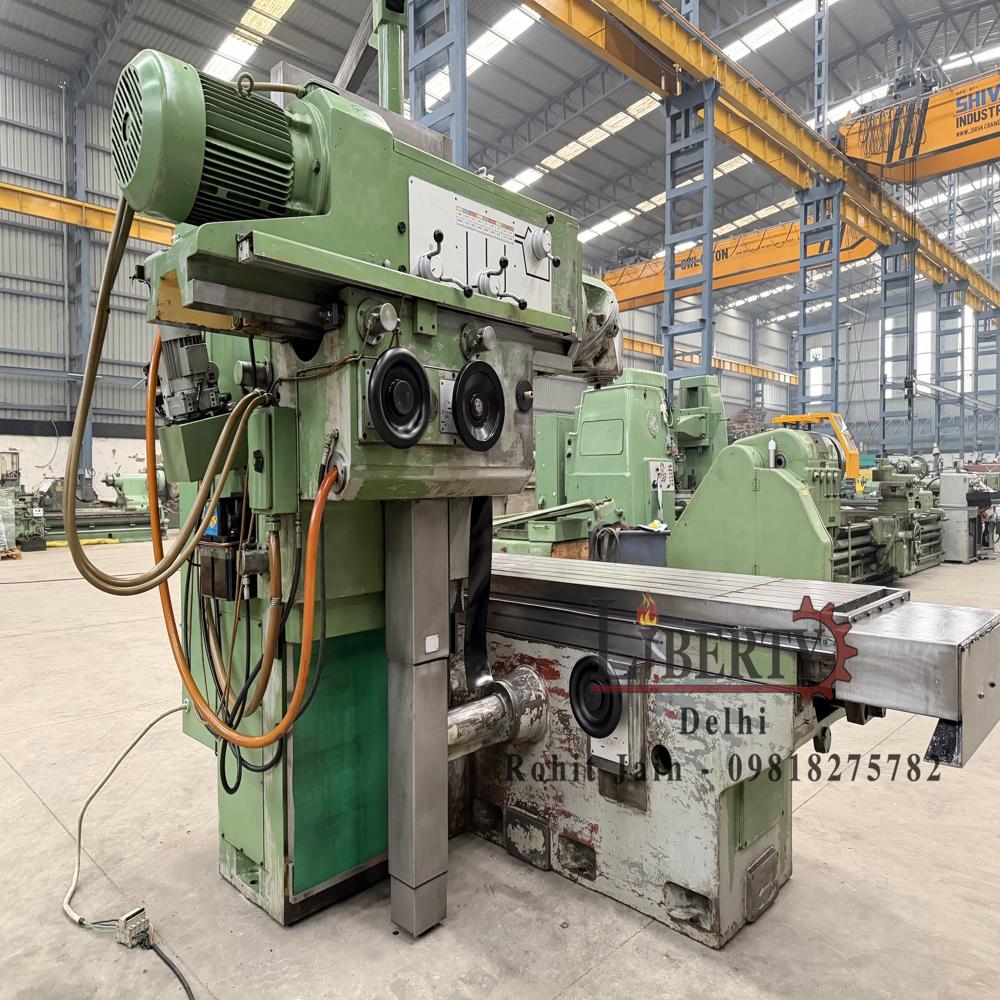

Zayer Spain 77-af Heavy Duty Universal Bed Milling Machine

Price: 100000.00 INR / Piece

(100000.00 + 0% GST)

Get Latest Price

1 Pack Contains :

Minimum Pack Size :

In Stock

-1+

Feature	Universal dual-swivel head, 3-axis DRO, vertical/horizontal/angular capability, heavy-duty structure, made with Novar (Italy).
General Use	Zayer (Spain) make Heavy-Duty Universal Bed Milling Machine in excellent working condition. The model of the machine is 77-AF and the Table Size is 2160 mm x 700 mm. This machine has been made in collaboration with Novar (Italy). The machine has a Universal type Dual-Swivel type Milling Head which is capable of doing Vertical, Horizontal as well as Angular Milling operations. The machine is also equipped with a 3-Axis DRO. The technical details are as follows -
CNC Or Not	Conventional (Not CNC)
Control System	Manual with 3-Axis DRO
Table Size	2160 mm x 700 mm
Table Slide Way	Box type
Floor Space	Approx. 4200 mm x 3200 mm
Spindle Speed	18 speeds, 30a 1800 rpm
Power	Main Motor: 15 HP
Voltage	415V / 3-Phase / 50Hz
Product Type	Universal Bed Milling Machine
Material	Heavy-duty Cast Iron & Steel
Type	Horizontal/Vertical/Angular Milling
Computerized	No
Dimension (LWH)	Approx. 4200 x 3200 x 2200 mm
Color	Standard industrial (Grey/Blue)
Capacity	Table Load: ~2000 kg
Automatic	Semi-automatic
Weight (kg)	~8600 kg
Model	77-AF
Rotation	Head Swiveling A 90A in two planes
Unit	1
Unit Type	Piece/Pieces
Moq	1
Price	100000.00
Selling Price	100000.00
Brand Name	Zayer (Spain)
Currency	INR
Packsize	1
Mop	1
Is Freight Charges
GSTIN	0%
