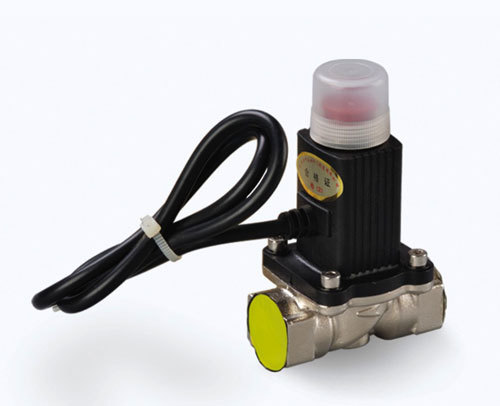

Vf / Vz Solenoid Valve

We are engaged in offering VF / VZ Solenoid Valve, which consists of the following specification:-

Series NO
VF3:(Series)
VF5:(Series)
VZ5:(Series)
Coil and Places
1: Single-head Double-position
2: Double-head Double-position
3: Double-head Three-position Close Type
4: Double-head Three-position Exhaust Type
5: Double-head Three-position Pressure Type
Order No
VF3:30
VF5:50
VZ5:20
Standard Voltage
DC12V
DC24V
AC24V 50Hz/60Hz
AC110V 50Hz/60Hz
AC220V 50Hz/60Hz
AC380V 50Hz/60Hz
Model
VF 3130, VF 3230, VF 33(4/5)30, VF 33(4/5)30, VF 33(4/5)30, VF 53(4/5)20, VZ 5120, VZ 5220, VZ 53(4/5)20
Working Medium: 40 Micron Filtered Air
Motion Pattern: Motion Pattern
Joint Pipe Bore:Inlet=Outlet=G1/4Exhaust=G1/8, Inlet=Outlet=Exhaust=G3/8,
Inlet=Outlet=Exhaust=G1/8
Operating Temperature: 5~50A C
Working Pressure: 0.15~0.8Mpa
Max. Pressure Resistance: 1.2Mpa
Power Consumption: AC:4.5VA DC:3W
Protection Class: IP65(DIN40050)
Insulation: F Class
Wiring Form: Lead Wire or Connector Type
Voltage Range: A 10%
Highest Action Frequency: 5 Cycle/Sec
Shortest Excitation Time: 0.05 Second
