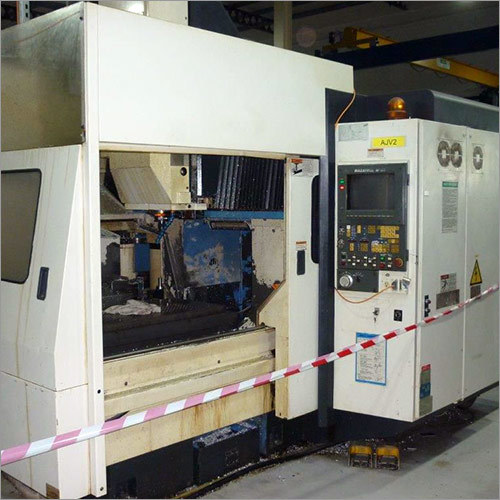

Vertical Machining Centres (Chetak 125 Mc) By Batliboi Ltd.

With the help of skilled professionals and good knowledgeable experience, we are involved in supplying, exporting and manufacturing quality-assured spectrum of Vertical Machining Centres (Chetak 125 MC) in Kolkata, West Bengal, India.

Features:
* Excellent Static and Dynamic rigidity with bed type configuration.
* Maintenance free independent AC Servo Motors directly coupled to Ball Screws for all the three axes.
* Feedback through Absolute Encoder. No Limit Switches.
* Hardened and Ground pre-loaded Ball Screws for all the three axes.
* LM Guide-ways for all the three axis for fast and accurate positioning of slides.
* High Speeds, Feeds and Rapid rate for machining Ferrous and Non-Ferrous Metals.
* High Speed precision Milling and Boring spindle.
* Variable Speed AC Spindle motor with Spindle bearings grease packed for life.
* Coolant tank with chip tray.
* No hydraulics in machine.
* Inbuilt flush coolant arrangement for ease of chip removal .
* High power spindle motor on request at optional.
* Chiller unit for spindle at optional

Main SpecificationsChetak 125 MC
TraverseX 1270 mm
Y660 mm
Z660 mm
Work Table 1350 x 660 mm
Spindle Power11 / 15 kw
Spindle Speed 60 a 6000 rpm
Spindle TaperBT50
Rapid Rate 20 m / min

21 Tool ATC as standard.(Optional 20 Tool Twin Arm Type ATC)
