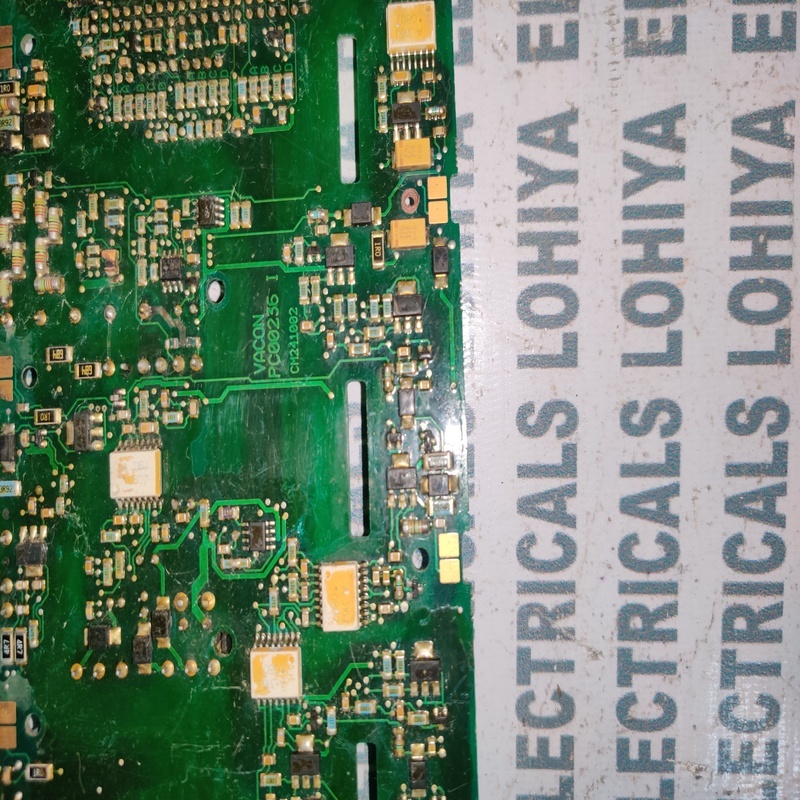

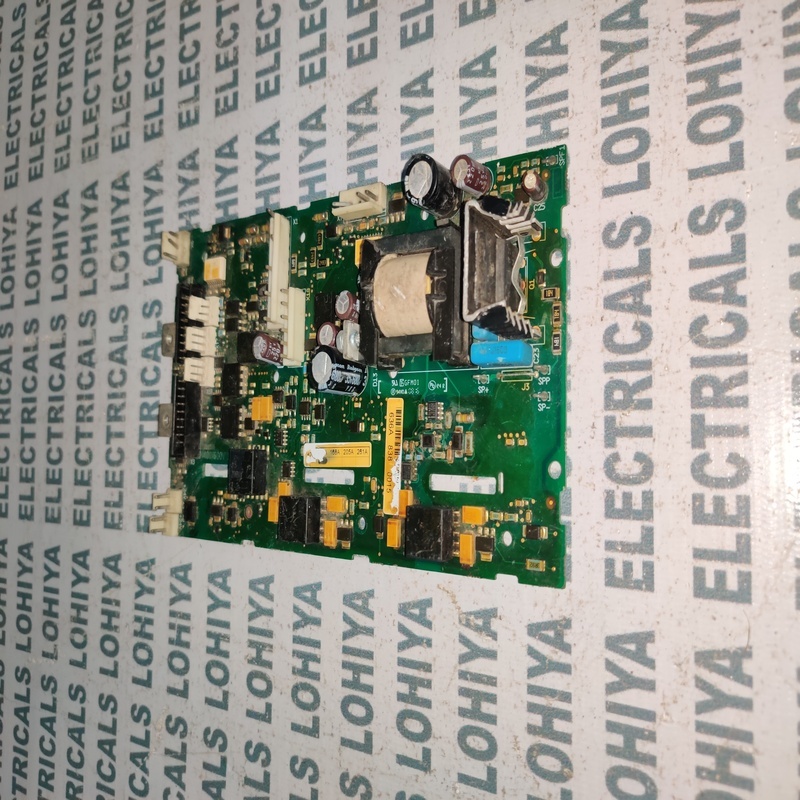

Vacon Pc00236 I Cm241002 Drive Board
Price:
Get Latest Price
Brand Name :
Vacon
In Stock
Product Specifications
| Panel Type | Controller/Drive Interface |
| Protection Level | Other, Conformal Coated |
| Control System | Microcontroller-based |
| Cover Material | Other, N/A (PCBA) |
| Cooling System | External Forced Air (via drive) |
| Rated Insulation Voltage | 800 V AC |
| Current Rating | 10 A |
| Thickness | 1.6 mm (PCB) |
| Cabinet Material | Not Applicable (PCB) |
| Components | Microprocessor, Power MOSFETs, Relays, Connectors, Passive Components |
| Operating Voltage | 24 V DC (Logic), 690 V AC (Drive) |
| Rated Operation Voltage | 690 V AC Max |
| Rated Current | 10 A |
| Features | Supports VACON VFD, Fast Switching, Multi-layer circuit design, OEM quality, Fault/Status Indication |
| Way | Multi-Layer |
| Protection Class | Conformal Coating, ESD Protection |
| Connectivity Type | Edge Connectors, Screw Terminal Ports |
| Base Material | Other, FR4 Epoxy Glass |
| Product Type | Other, Drive Board / Control Board |
| Material | Other, High-grade PCB (Printed Circuit Board), Electronic Components |
| Surface Finish | Other, Solder Masked, Glossy Finish |
| Standard | OEM (Original Equipment Manufacturer) Specification |
| Surface Color | Green |
| Rated Voltage | 24 V DC (Control), Up to 690 V AC (Drive) |
| Frequency (MHz) | 50/60 Hz operation |
| Maximum Output Current | 10 A |
| Dimension (L*W*H) | 250 mm x 130 mm x 18 mm (approx) |
| Application | VACON VFD (Variable Frequency Drive) Series, Industrial Automation |
| IP Rating | Other, IP00 (PCB Assembly only) |
| Display Type | Other, None (Board level product) |
