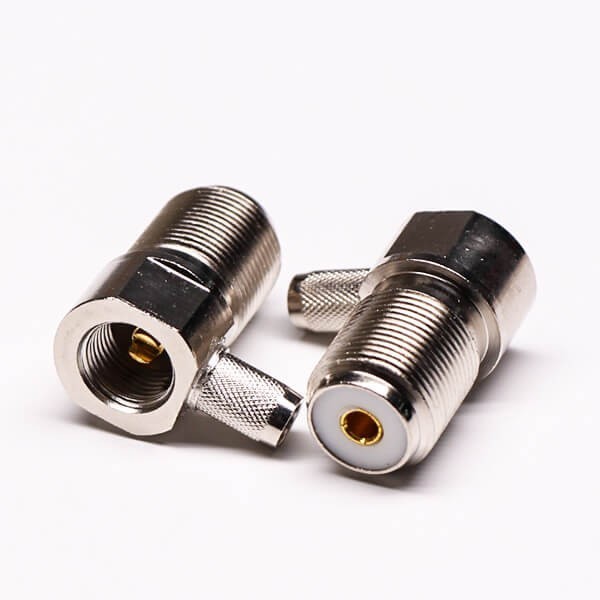

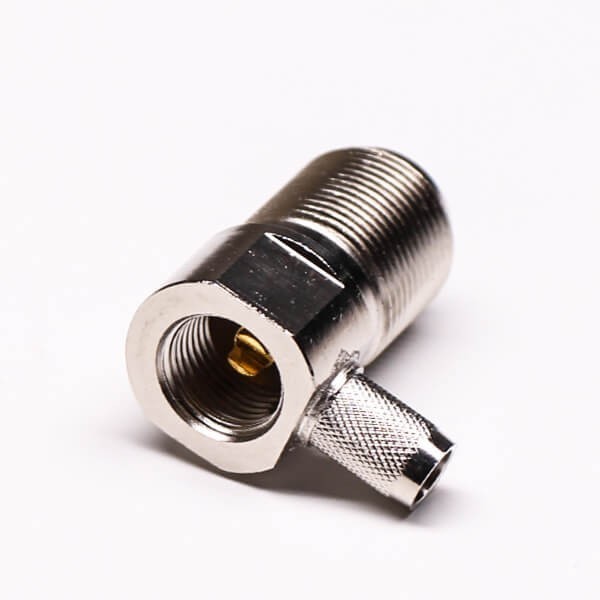

Uhf Jack Front Bulkhead Connector R/a Crimp Type For Cable
Share

Uhf Jack Front Bulkhead Connector R/a Crimp Type For Cable

Price: 65 INR / Piece

Get Latest Price

Minimum Order Quantity :

5 Piece

Brand Name :

3an Telecom

In Stock

In Stock

Product Specifications

Core MaterialCopper
Tensile StrengthHigh mechanical strength for secure mounting
WeightApprox. 18g
FeaturesRight Angle (R/A) design, bulkhead mounting, crimp type for easy cable termination
Impedance50 Ohms nominal
Conductor ShapeRound
Dielectiric Strengtha%0Y= 1000V RMS
Usage & ApplicationsPanel installation, communication equipment, RF systems
Locking TypeNut lock bulkhead
Conductor TypeSolid
Cable TypeSuitable for RG-58, RG-213, RG-8/U cables
Armored MaterialNot armored
Core Number1
Diameter15mm mounting hole
Number of ConductorSingle
Rated Temperature-55AdegC to +85AdegC
Operating Temperature-55AdegC to +85AdegC
InsulationPTFE
Install TypeFront bulkhead mounting
Product TypeUHF Jack Front Bulkhead Connector
LengthStandard length, dependent on cable application
VoltageOther, Up to 500V
Insulation MaterialPTFE
ApplicationOther, RF connections, antenna installations, equipment interfaces
Conductor MaterialBrass
Jacket MaterialOther, Dependent on cable used
Storage Temperature-40AdegC to +85AdegC
Connector ColorSilver
Shield MaterialNickel-plated brass
Jacket ColorOther, Dependent on cable used
Dimension (L*W*H)Approx. 35mm x 15mm x 15mm
ColorSilver
MaterialBrass (Body), PTFE (Insulator)
SizeStandard UHF bulkhead size
Main Domestic MarketAll India

Product Overview

Key Features

Electrical Characteristics
ImpedanceNon-constant
Frequency Range: 0~300MHz
Vlotage Rating: 500 volts peak
Mechanical Characteristics
Coupling: 5/8-24 threaded coupling
Cable Affixment: Braid Solder, Set screw, clamp and crimp
Durability(mating) 500 cycles (For Beryllium Copper Contact)
Environmental Characteristics
Temprature Range:
Mica-filled phenolic insulators: -55C ~ +149C
Copolymer of styrene and polystyrene: -55C ~ +85C
TFE insulators: -65C ~ +165C
Weatherproof: Except as noted, all UHF series are non-weatherproof
