Through Hole Sma Connector Jack Right Angled Gold Plating 50 Ohm Pcb Mount
Share

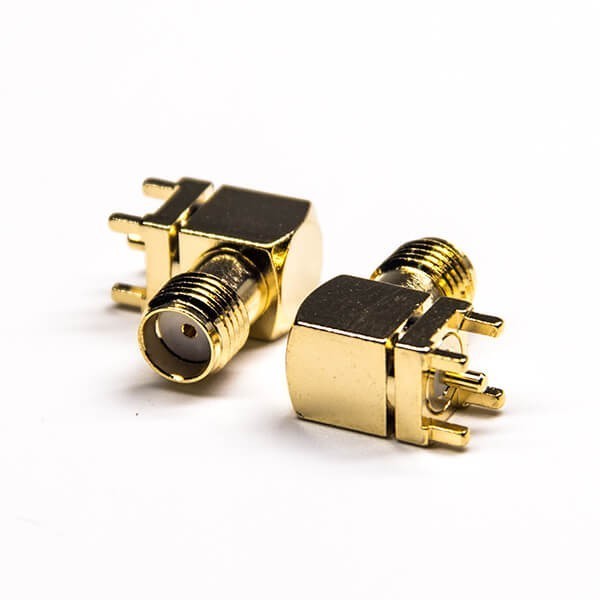

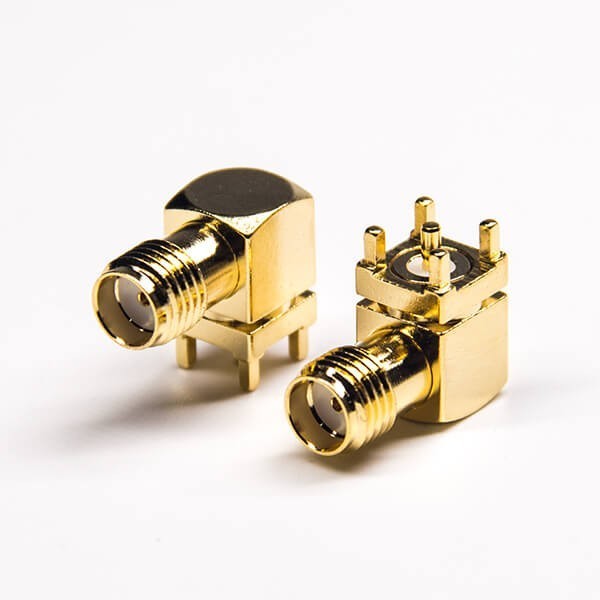

Through Hole Sma Connector Jack Right Angled Gold Plating 50 Ohm Pcb Mount

Price: 55 INR / Piece

Get Latest Price

Minimum Order Quantity :

5 Piece

Brand Name :

3an Telecom

In Stock

In Stock

Product Specifications

WeightApprox. 2 g
Install TypeThrough Hole PCB Mount
FeaturesRight angled, gold plating, high frequency, corrosion resistant, precision fit
Core NumberSingle
Number of Conductor1
InsulationPTFE Insulation
Dielectiric Strength1000V RMS min at sea level
Rated Temperature-55AdegC to +155AdegC
Conductor ShapeOther, Round Pin
Impedance50 Ohm
Operating Temperature-55AdegC to +155AdegC
Core MaterialPhosphor Bronze (Gold Plated)
Conductor TypeSolid
Tensile StrengthHigh, suitable for PCB mounting
DiameterOuter thread diameter approx. 6.35 mm
Usage & ApplicationsUsed for RF PCBs, WLAN, GSM, GPS, and test equipment
Locking TypeThreaded Coupling
Cable TypeN/A (For PCB Mount, No Cable Attached)
Product TypeThrough Hole SMA Connector Jack Right Angled PCB Mount
LengthStandard, compact footprint (customizable)
VoltageOther, 335 V RMS max
Insulation MaterialOther, PTFE (Polytetrafluoroethylene)
ApplicationOther, RF signal transmission, Antenna, PCB module, Telecom, Wi-Fi Modules, GPS
Conductor MaterialOther, Brass/Phosphor Bronze, Gold Plated
Jacket MaterialOther, N/A (Connector Only)
Storage Temperature-55AdegC to +155AdegC
Connector ColorGold
Shield MaterialBrass (Nickel/Gold Plating)
Jacket ColorOther, N/A (Connector Only)
Dimension (L*W*H)Approx. 13.5 x 6 x 8 mm
MaterialBrass Body, Gold Plated, PTFE Insulator
ColorGold
SizeSMA Standard (Female Jack)
Main Domestic MarketAll India

Product Overview

Key Features

Electrical Characteristics
Impedance50 ohm
Frequency Range: 0~6 GHz
VSWR: Straight type 1.3max / R/A type 1.5max
Dielectric Withstanding Voltage:1000 V rms min for RG142, RG405
750 V rms min. for RG316, RG402
500v rms min. for RG178
Working Voltage: 500 V rms max. for RG142, RG405
375 V rms max. for RG316, RG402
170 V rms max. for RG178
Center Contact Resistance 6.0 m (Milliohms max.)
Outer Contact Resistance 2.0 m (Milliohms max.)
Insultation Resistance 5 x 10 m (Megohms min.)
Mechanical Characteristics
Coupling: 1/4-36 thread
Contact Retention: 15 in-lbs min.
Coupling nut torque: 30 in-lbs. min.
Durability(mating) 500 cycles (For Beryllium Copper Contact)
Environmental Characteristics
Temprature Range: -55C ~ +155C
Vibration: MIL-STD-202 Meth.204
Corrosion resistance: MIL-STD-202 Meth. 101
