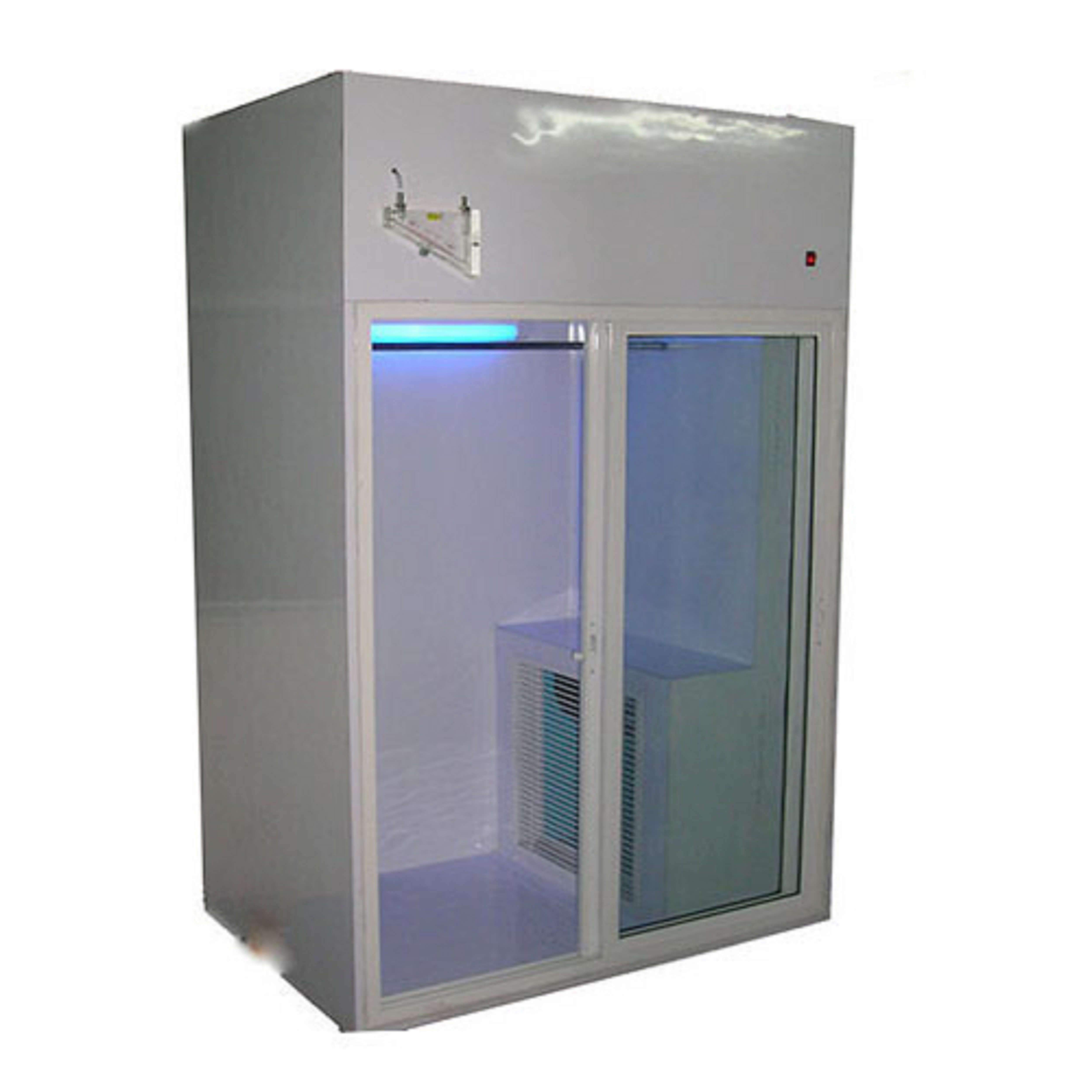

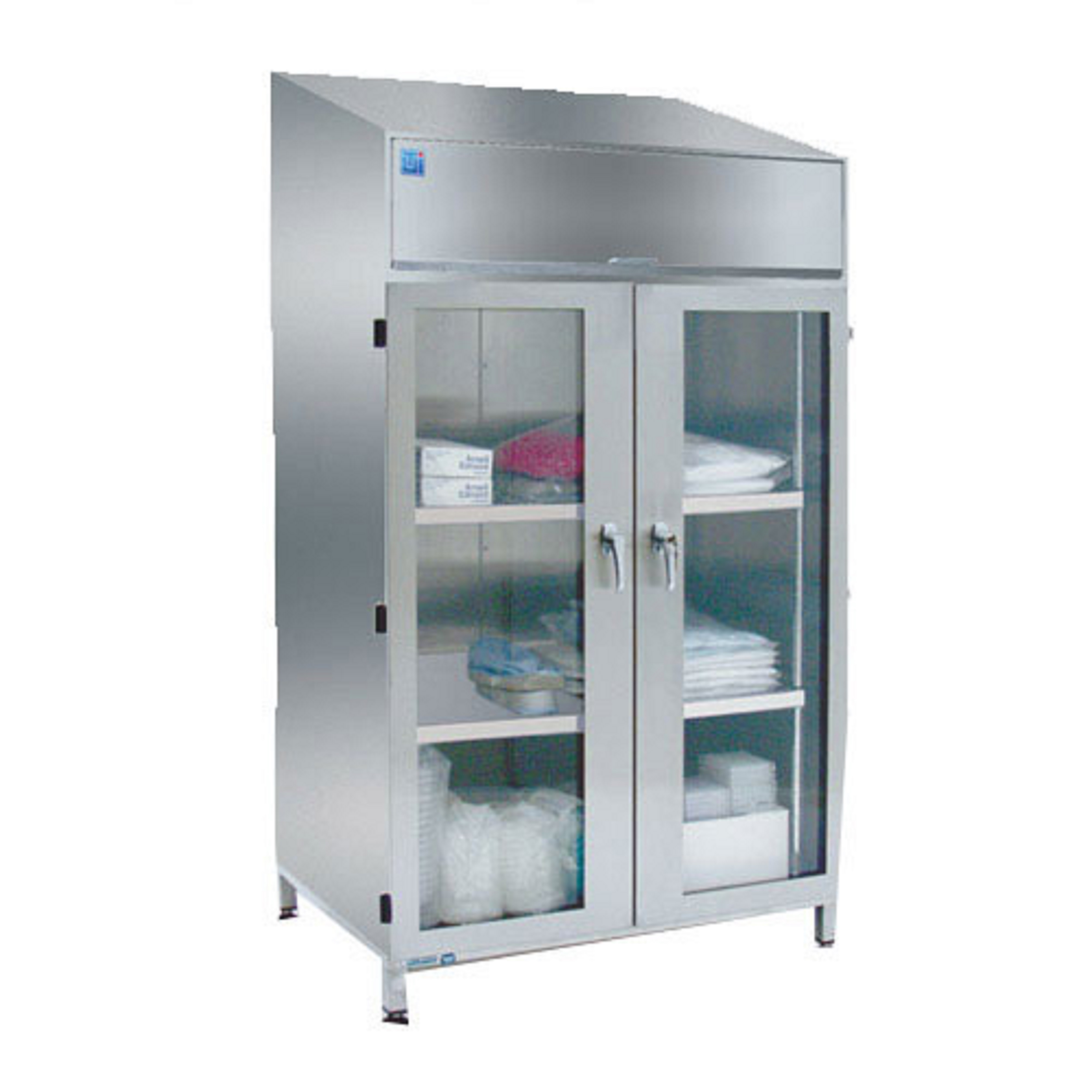

Sterile Garment Storage Cabinet Application: Sample Preparation

1.Air flow type: - Vertical Air flow from the top.
2.Air Flow Velocity :- 90 FPM 20%, Inflow Velocity: 0.53
m/s,Down flow Velocity: 0.33 m/s
3.Statically balanced motor blower Assembly (Heavy Duty), 1440
rpm, hp. Noise of the blower is less than 55 dBA & Very low
vibration
4.Filtration Assembly: - Room air is drawn from the top of the
cabinet through a Pre-Filter, then the air pass through HEPA
Filter and spread evenly in the working area providing a
constant a stream of clean air flow within the work area.
Prefilter is made from Non-Woven Synthetic with HDPE mesh and Al expanded mesh on air leaving side; conforms to EU 4 / G-4 Grade, with the efficiency of down to 10 microns. These filters can be cleaned by compressed air & also washable.
HEPA Filteris Mini pleat type, made from water-resistant, fire retardant, imported micro-fine glass fiber media; conforms to EU 14 Grade, with an efficiency rating better than 99.999% for 0.3 . These filters are designed to accommodate higher air flow volume.
Perforated diffuser screen /shield mesh guard protect Filters from damage.
5.Pressure manometer to track filter pressure & air/gas cock inside the working area
Easy removable back/front panel for easy access to electrical fittings and easy removable filter placement for ease of access during service.
6.Wheels: -Mounted on heavy tubular stand with lockable castors.
