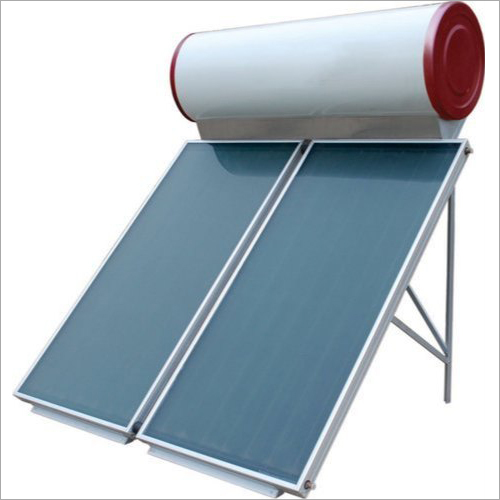

Solar Water Heater - Mild Steel Inner Tank

We have attained a notable position in the market by trading and supplying a huge spectrum of FPC Solar Water Heater in Dombivli , Maharashtra, India. PBK manufactures complete range of solar water heating systems based on flat plate collectors, based on evacuated tube collectors, low height solar water heating systems, forced flow systems, thermosiphon systems, flat plate collectors, evacuated tube collectors, hot water storage tanks, air vent pipeless systems, temp. indicator systems etc.

The manufacturing procedure and the use of raw materials are of high standards and each system is checked by quality department and after satisfactory result system will be dispatched.

TECHNICAL SPECIFICATION OF HOT WATER STORAGE TANK

Inner tank : mild steel 2.5 mm

Jacket material : mild steel 1.8 mm

Tank insulation : PUF 50 mm

Outer cladding : colour coated GI sheet 0.4 mm

Tank internal protection : epoxy coating

Additional protection : magnesium rod (anode)

Electrical heater : socket provided

TECHNICAL SPECIFICATION OF COLLECTOR

External frame : extruded aluminium section

Back side : colour coated GI sheet 0.4 mm

Back insulation : 50 mm

Absorber : copper sheet 0.15 mm with nalsun coating

Absorber tubes : copper pipe dia. 1/2" & 1"(risers & headers)

Cover : solar toughened glass 4 mm

Water tightness : EPDM rubber & silicone sealant
