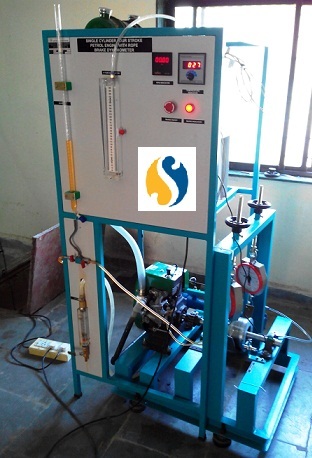

Single Cylinder Two Stroke Petrol Engine Test Rig With Rope Brake Dynamometer Machine Weight: 150 Kilograms (Kg)

Type of Engine : Single cylinder, two stroke, air cooled, Manual start, self lubricating, petrol engine
Type of Loading :
TD-101A - Rope Brake Dynamometer
Torque Measurement: By Brake Drum and spring balances
TD-101D - Eddy Current Dynamometer
Torque Measurement: By spring balances
Fuel Measuring System : Fuel measuring system consists of a fuel tank, a burette and a three way cock arrangement. Air intake Measuring System: Air tank fitted with orifice and manometer. Exhaust gas calorimeter : An Exhaust Gas Calorimeter, made of Stainless Steel will be provided for calculating heat carried away by exhaust gases. The body of the calorimeter is insulated with ceramic wool and cladded by Aluminium foil. Digital Temperature indicator with Temperature sensors at appropriate position will be provided.
RPM measurement: RPM Indicator with Proximity sensor.
Temperature Measurement : Digital Temperature Indicator with multi-channel switch
Temperature Sensors : Thermocouple (4 nos.)


SERVICES REQUIRED

Electricity Supply: Single Phase, 220V AC, 50 Hz, 5-15 amp. Combined socket with earth connection.
Water Supply: Continuous @5LPM at 1 Bar pressure.
Floor Drain required
Petrol : 5 litters
2T Engine Oil : 2% of Fuel
Engine Oil : SAE 20W40; 500 ml (approx.)
Exhaust Emission
Floor Area: 2m x 1 m.
