Siemens Inverter Pcb 6se7024-7ed84-1hf3 at Best Price in Bhavnagar

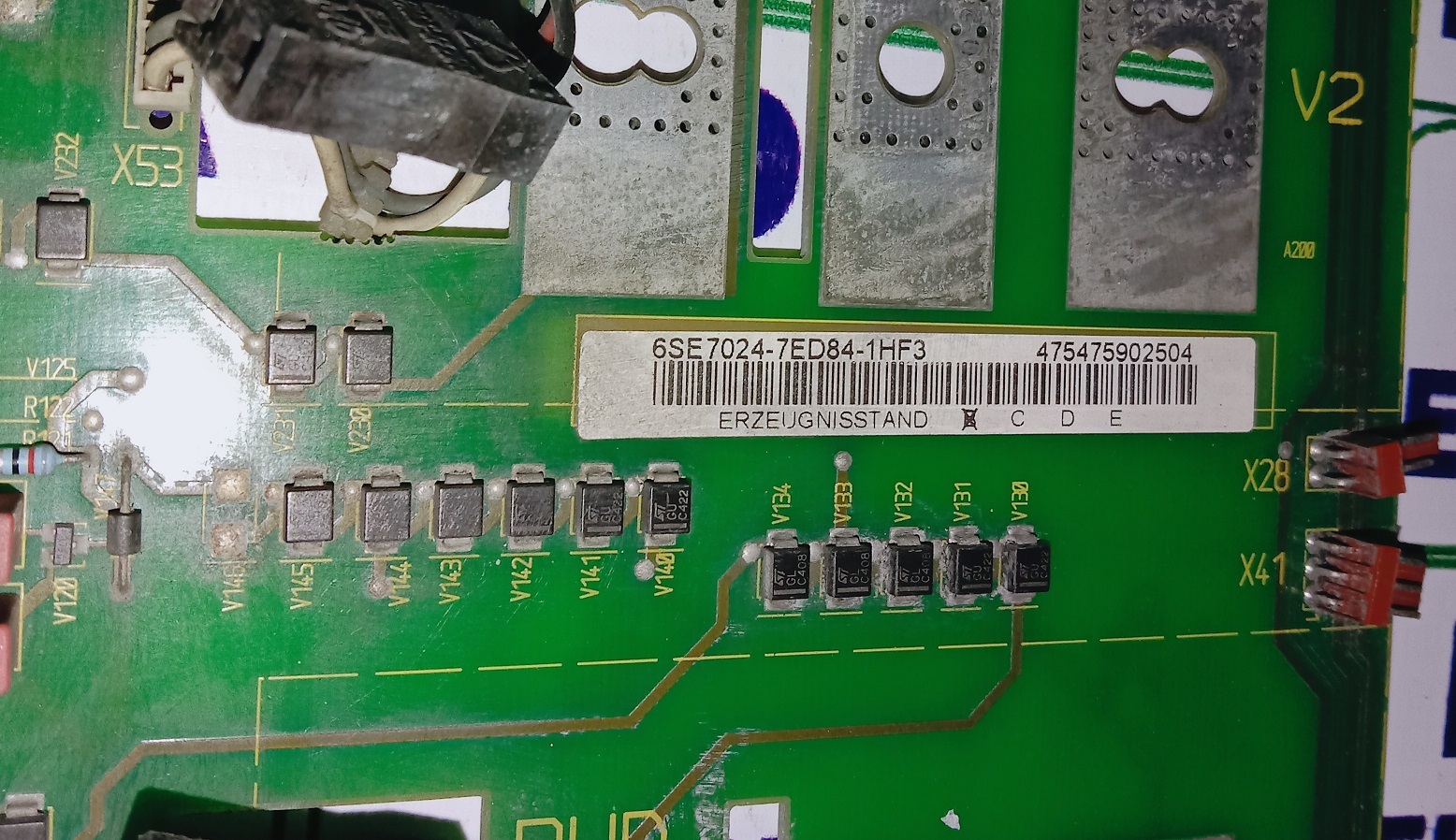

Siemens Inverter Pcb 6se7024-7ed84-1hf3

Price:

Get Latest Price

Brand Name :

Siemens

In Stock

Product Specifications

Power Factor	Not directly applicable; PCB provides drive signals
Rated Power	Matches the inverters power class (up to 5.5kW)
Rated Current	Logic circuitry; main power current handled by external drive/inverter
Power Supply	24V DC (supplied by inverter/drive control cabinet)
Features	OEM original, plug-in installation, high reliability, Siemens quality, protection circuitry
Connector Type	Multi-pin header connectors, edge card type
Cooling Method	Convection; optional auxiliary cooling depending on cabinet design
Noise Level	Low, designed for EMI/RFI reduced operation
Operating Temperature	0AdegC to +60AdegC
Current Range	Up to 1A (control logic; not power output)
Output Type	Other, PWM signal/logic signal for inverter control
Output Current	Low current logic signal (drives control circuits, not power output)
Application	Industrial drive control, inverter module, automation systems
Working Temperature	0AdegC to +60AdegC
Phase	Other, Three Phase (for inverter output control)
Product Type	Inverter PCB Board
Output Power	Varies by application (typically up to 5.5kW for this model)
Output Frequency	Selectable, typically 0-650Hz depending on inverter configuration
Input Voltage	DC supplied from inverter system (approx. 24V or as per inverter rating)
Voltage Protection	Overvoltage, Undervoltage, Surge Protection circuitry
Efficiency	High, above 95% (typical with proper system integration)
Material	FR4 PCB, electronic components, connectors
Line Regulation	Excellent, within A+-1% under normal conditions
Storage Temperature	-25AdegC to +70AdegC
Weight	Approx. 300g
