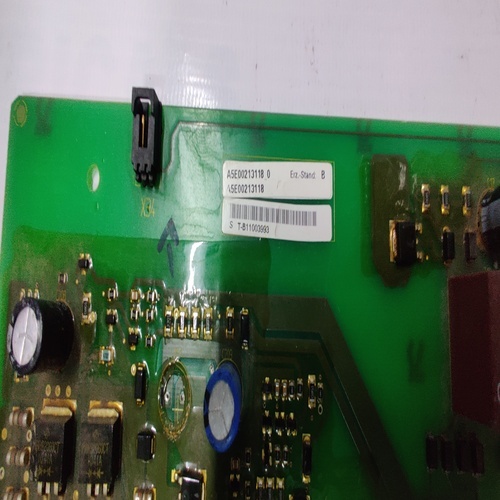

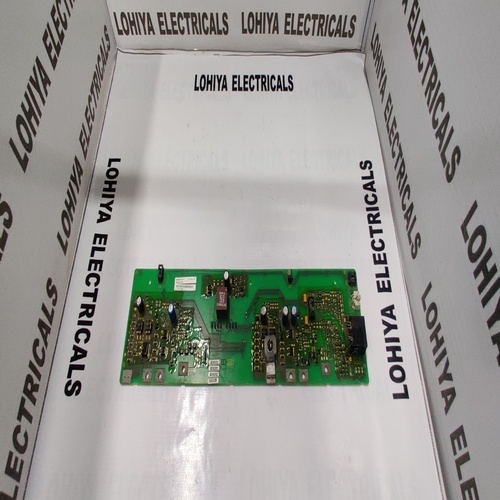

Siemens A5e00213118 Inverter Drive Trigger Board - High-performance Circuit Board | Compatible With Siemens Inverter Systems

Price:

Get Latest Price

Brand Name :

Siemens

In Stock

Product Specifications

Connector Type	Pin header and plug-in terminal blocks
Output Type	Other, Signal output for gate triggering of IGBTs/MOSFETs
Application	Triggering and control in Siemens inverter and variable speed drive applications
Working Temperature	0AdegC to 60AdegC
Phase	Other, Three-phase support
Cooling Method	Passive
Noise Level	Low, <45 dB
Operating Temperature	0AdegC to 60AdegC
Output Current	Dependent on gate drive configuration, up to 3A
Features	Short circuit protection, high-speed switching, status LED indicators
Power Factor	High (dependent on inverter setup)
Rated Current	As per gate driver specification
Current Range	Up to 3A (gate trigger circuit)
Rated Power	As per drive system specification
Power Supply	24V DC regulated
Product Type	Inverter Drive Trigger Board
Output Power	Depends on amplifier and connected motor, typically up to 3 kW
Output Frequency	Controllable via inverter, up to 400 Hz
Input Voltage	24V DC (typical for control boards)
Voltage Protection	Integrated over-voltage and under-voltage protection circuits
Efficiency	High (>95%)
Material	High-grade PCB, electronic components, insulated connectors
Line Regulation	Stable drive control within A+-1%
Storage Temperature	-25AdegC to +85AdegC
Weight	Approx. 250 grams
