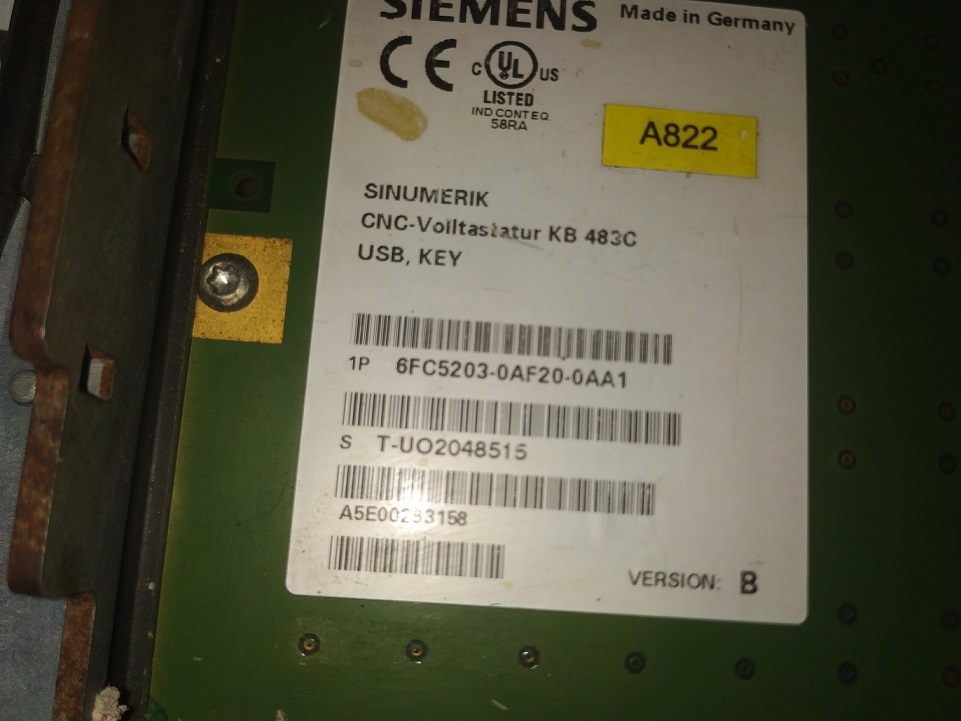

Siemens 6fc20-0af20-0aa1 Keypad

Price:

Get Latest Price

Brand Name :

Siemens

In Stock

Product Specifications

Connectivity Type	Flexible cable tail
Thickness	Approx. 0.6 mm
Operating Voltage	24V DC (through CNC control board)
Rated Current	Max. 30 mA (per keypoint)
Cover Material	Other, Polycarbonate (protective overlay)
Protection Class	II (Double Insulated)
Rated Insulation Voltage	100V (membrane insulation)
Current Rating	30 mA per switch
Features	High tactile feedback, Wear-resistant, Chemical-resistant
Components	Membrane keypad, adhesive backing
Base Material	Other, Polyester
Control System	CNC machine operator interface
Panel Type	Membrane Operator Panel
Way	Single side functional keys
Rated Operation Voltage	Max. 30V (as per operational environment)
Protection Level	Other, IP65 (front, when mounted)
Product Type	Other, Keypad Membrane for CNC systems
Material	Other, High-quality membrane polyester film
Surface Finish	Other, Matte finish
Standard	SIEMENS industrial standard
Surface Color	Other, Silver with printed legends
Rated Voltage	24V DC (input, via connected equipment)
Frequency (MHz)	N/A (non-electronic component)
Maximum Output Current	30 mA (membrane actuation rating)
Dimension (LWH)	220 mm x 145 mm x 0.6 mm
Application	SIEMENS 840D/810D CNC System operator interface
IP Rating	Other, IP65 (front panel)
