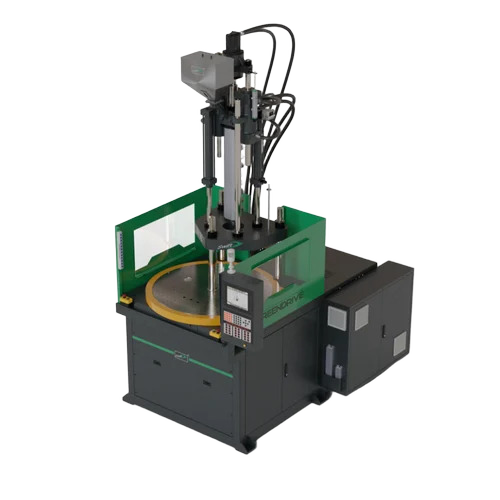

Rotary Type Vertical Injection Moulding Machine 90 Ton By Swift Auxi Technik Pvt. Ltd.

90-ton rotary type vertical injection moulding machine
Vertical structure with two-station rotary table for 1.6A higher production
Clamping force of 90 tf with stable 4-tie bar system
Max shot weight: 343 grams with 45 mm screw diameter
High injection pressure of 1327 kgf/cmA for precision moulding
Injection rate: 140 cmA /sec with 88 mm/s maximum injection speed
Equipped with high-end controller for optimized production tracking
Supports mould dimensions up to 500 A 400 mm
Features ram-type clamping for accurate and uniform pressure distribution
Large working area with 600 A 480 mm worktable
370 L oil tank capacity and 7.5 kW heating system
Servo + hydraulic greendrive system saves up to 60% power
Main motor activates only during movement to reduce energy waste
Faster cycle times with opening stroke of 525 mm and clamping stroke of 285 mm
Ejector stroke: 145 mm for easy component removal
Storage capability for mould data with color display
Machine weight approximately 5.5 tons for stability
Suitable for high-accuracy moulding in engineering and commercial applications
Safety light curtains and electronically monitored side doors for operator protection
Designed for long service life and reduced maintenance
Requires 415 V, 3-phase power supply
Ideal for precise moulding in automotive, electronics, connectors, and insert-moulding applications
