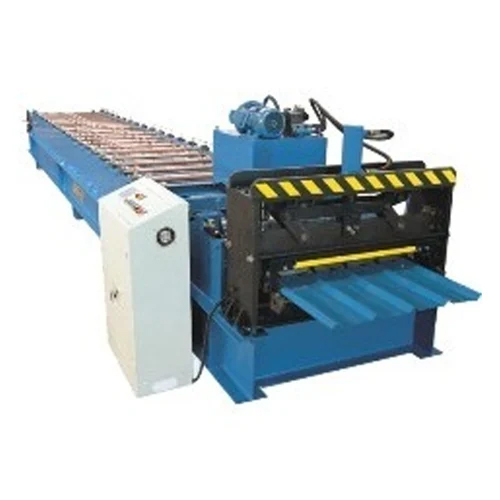

Roll Forming Machine For Dual Level Roof Profiles

We are leading exporter, manufacture and supplier of Roll Forming Machine For Dual Level Roof Profiles in Xiamen, Fujian, China.

Product Description:

The main technical parameters below are for your inference only.

1. 5Tons un-coiler
2.Manual Pre-shearing device
3.General Machine Parameter
Suitable roll forming material: Color steel sheet or galvanized steel sheet
Thickness: 0.4mm-0.6mm
Frame design: Wall-plate-frame-design /New-stand-frame-design
Upper Roll stages: 20 stages
Lower Roll stages: 20 stages
Material of forming roller: 45 steel, CNC lathes, Hard Chrome Coated
Shafts Diameter: 75/95mm
Main motor power: 11KW with reducer
Max. Line speed of roll former: 15m/min (Higher speed is available, depends on the specification required by the buyer)
Hydraulic group power: 5.5KW
Material of cutting blade: Cr12, hear treatment
Attention:
The two levels cana t be run at the same time
Manual Clutch to switch the driven system
The two profiles share one un-coiler/ base frame/ main motor for roll former/ hydraulic cutting carriage/PLC control system
4.PLC Control System
PLC: Siemens brand
Touch Screen: Siemens brand
Inverter: Schneider or Shihlin or Panasonic brand
Encoder: Omron brand
5.Product rack
Un-powered, 3 units
