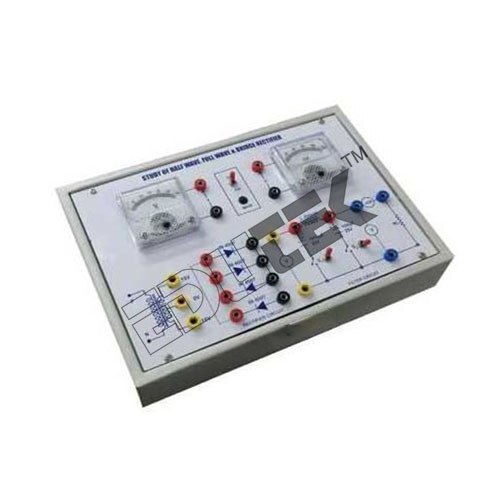

Ripple Factor Apparatus - Aluminum Panel, Dimensions 12x8 Inches | Inbuilt Ac Power Supply 15-0-15v, Selectable Filter Circuit Kit, Dual Meters For Output Voltage & Current, Shockproof Plastic Box
Price: 50.0 INR / Piece
Get Latest Price
Minimum Order Quantity :
1 Piece
Brand Name :
Edutek
In Stock
Product Specifications
| Resolution | Analog Meters: 0.01 A, 0.1 V |
| Power Source | AC Mains |
| Input | Step Down Transformer, 230V AC to 12V AC |
| Response Time | Instantaneous Reading on Meters |
| Features | Aluminum Panel, Analog Square Meters, Test Points, Multiple Rectification Modes |
| Power Supply | 230V AC, 50 Hz |
| Components | Transformer, Diodes, Capacitors, Resistors, Fuses, Voltmeter, Ammeter, Switches |
| Usage | ENGINEERING ELECTRONICS INSTRUMENTS |
| IP Rating | IP20 (Indoor Use Only) |
| Interface | Panel Mounted Switches & Sockets |
| Display Type | Other, Analog Square Meters |
| Output | Half Wave, Full Wave, and Bridge Rectifier Outputs |
| Operating Temperature | 0AdegC to 50AdegC |
| Product Type | RIPPLE FACTOR APPARATUS WITH ALUMINUM PANEL & SQUARE METERS (HALF WAVE, FULL WAVE AND BRIDGE RECTIFIER) |
| Application | ENGINEERING ELECTRONICS INSTRUMENTS |
| Rated Voltage | 230V AC |
| Supply Voltage | 230V AC, 50 Hz |
| Size | Standard Laboratory Desktop |
| Dimension (L*W*H) | Approximately 350 mm x 250 mm x 125 mm |
| Function | Measurement of Ripple Factor in Rectifier Circuits |
| Color | Blue & Silver (Aluminum Panel) |
| Weight | Approx. 5 kg |
| Current Rating | 2A Maximum |
| Thickness | Aluminum Panel Thickness: 2 mm |
| Capacity | Designed for Laboratory Batch Use |
| Frequency | 50 Hz Mains |
| Packaging Details | Carton Box, Export Quality also Available |
| Main Export Market(s) | Asia, Middle East, Africa |
| Main Domestic Market | All India |
| Certifications | ISO 9001, 14001, CE |
Product Overview
Key Features
RIPPLE FACTOR APPARATUS WITH ALUMINUM PANEL & SQUARE METERS (HALF WAVE, FULL WAVE AND BRIDGE RECTIFIER)
Instrument comprises inbuilt AC Power Supply 15-0-15V
2 meters Square MR65 to measure Output Voltage & Output current
4 PN Junction Diodes
Filter Circuit Kit with Switch Selectable.
Inbuilt inductor having value of 200mH on board.
Load Resistance.
Features:
Trainer operated on 230V 50 Hz
Supplied with instruction manual
Supplied with sufficient nos. of patch cords
Supplied with Computer Lead
Dimensions of the Trainer will be 12 x 8 with Plastic Box Highly shock proof.
