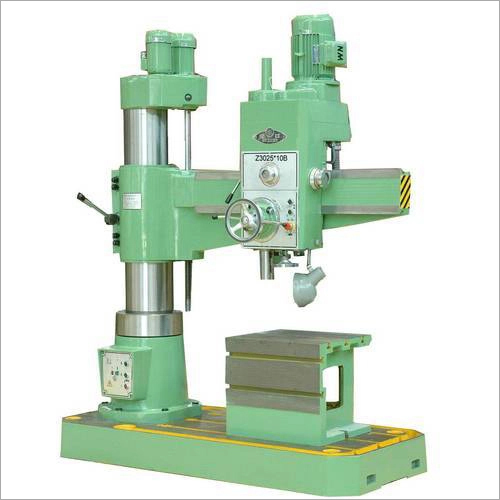

Reliable Radial Drilling Machines

Leveraging the skills of our qualified team of professionals, we are instrumental in exporting and manufacturing and supplying of the Reliable Radial Drilling Machines in Ludhiana, Punjab, India. These drilling machines are developed by the experts employing advanced technologies. Additional, the machines offered by us are incorporated with column, bed and saddle. We are instrumental in providing a quality array ofA product. These products are manufactured by the professionals using raw material along with high-tech machines. Our products are quality tested in our laboratory to ensure their compliance with the industry standards.


Its Features are:
Easy operations
Longer functional life
Excellent tensile strength
Resistivity to adverse conditions


Its Specifications are:
Drilling capacity : 25 mm
Pillar diameter : 130 mm
Spindle nose to table distance : 675 mm
Distance from spindle nose to base distance : 875 mm
Distance from spindle center to pillar surface : 635 mm ( MAX )
Taper in spindle : MT - 3
Number of speed : 8 Speed
Range of Speed (RPM) : 130 to 2600
Work Table Size (in mm) : 200 x 200 x 250
Base size (Machined Area mm) : 585 x 915 mm
Overall Base Size (in mm) : 610 x 940 mm
Spindle Travel : 185 mm
Pillar Length : 1265 mm
Overall height with pulley guard : 1700 mm
V-Belt section : B - 43" & A - 23"
Weight (Approx.) : 475 Kgs.
Motor1440 RPM 3 Phase440 volts : 1 HP & 0.5 HP
Shipping Wooden Case Inner Size LxWxH (in mm) : 1030 x 770 x 1770
